Rivers Edge® One-Man Ladder Stands, Onset and Onset XT

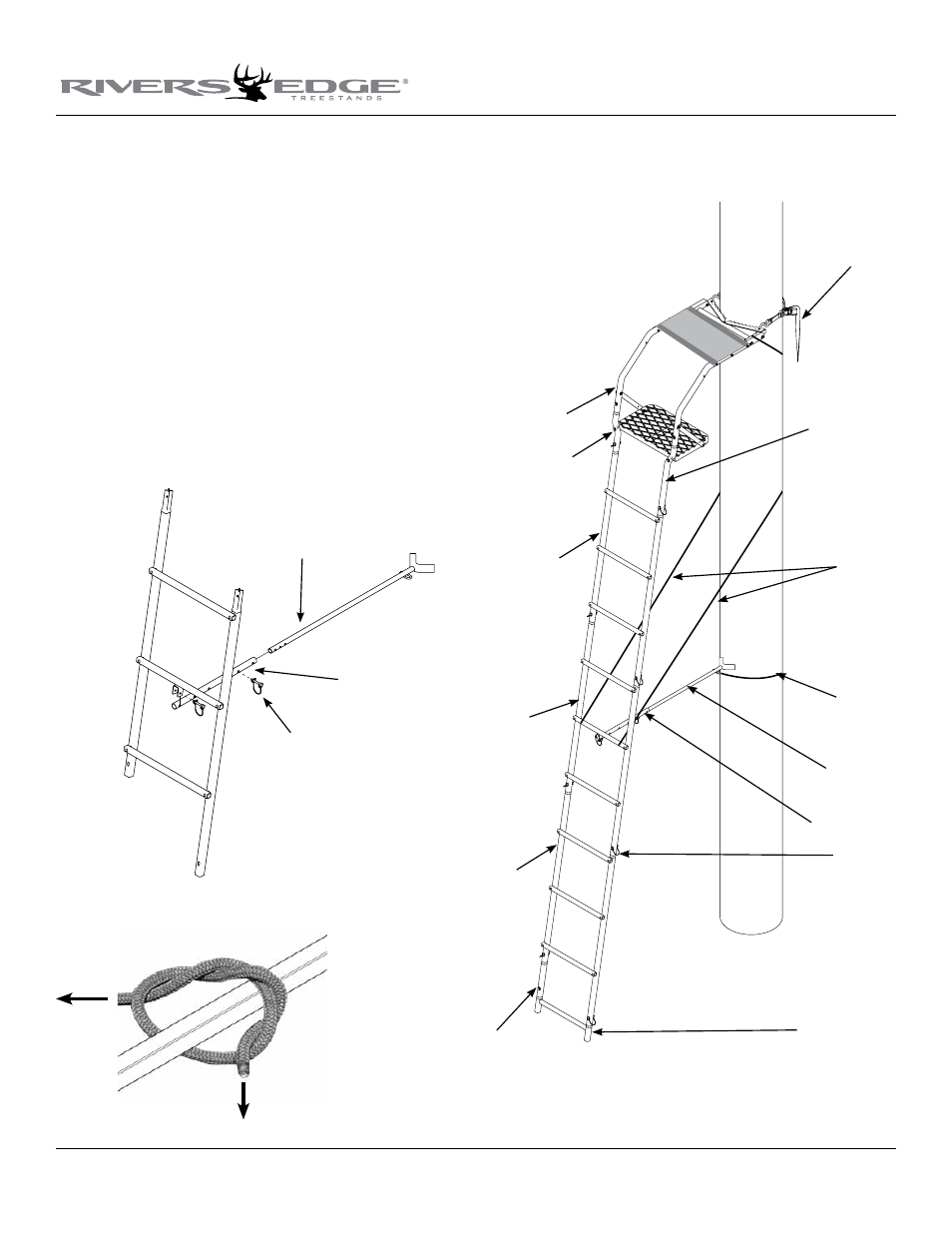

Figure 7
Figure 8
RE625 finished Onset™ ladder
top section
ratchet strap
15' tie-off
ropes
9' stabilizer
bar rope
stabilizer bar
spring lock
pins
bottom
section
base
extension
tube
base extension
weldment
second
section
third
section
short flared rail
long flared rail
stabilizer bar
stabilizer extension
tube
spring lock pin
10. a. Attach the stabilizer bar extension tube (410075) to the second
ladder section mounting bracket using (1) provided spring lock pin.
SEE fIGuRE 7.
b. Slide the stabilizer bar (410073) into the extension tube and
attach the two pieces together using (1) provided spring lock
pin. Spring lock pin must go through both the extension tube
and stabilizer bar at appropriate hole to achieve desired distance
from tree. Adjustment in length may be needed when ladder is
uprighted later in instructions. SEE fIGuRE 7.
11. a. Tie one end of the provided 9’ rope to the link welded onto the
stabilizer bar, just in front of the tree hugger. Be sure your double
knots are secure. SEE fIGuRE 8.
b. Tie one end of each of the provided 15’ ropes to the square
tubes of tree blade frame, just in front of the tree blades. Be sure
your double knots are secure. SEE fIGuRE 8.
stabilizer bar
extension tube
