Evolver Solventborne Robotic Atomizers - Maintenance
79151-00
Needle Shaft
1
7723-06
Piston, U-Cup
1
79001-28
O-Ring, Solvent Proof
1
79001-29
O-Ring, Solvent Proof
1
13076-13
O-Ring
1
RME-38
Spring
1
RME-32
Seal
1
79001-01
O-Ring, Solvent Proof
4
79001-04
O-Ring, Solvent Proof
1
79001-06
O-Ring, Solvent Proof
3
79001-05
O-Ring, Solvent Proof
1
A10411 SPRAY HEAD
REPAIR KIT
Part #
Description
Qty
79001-04
O-Ring, Solvent Proof
1
79001-06
O-Ring, Solvent Proof
1
79001-05
O-Ring, Solvent Proof
1
A10410 SPRAY HEAD
O-RING KIT
Part #
Description
Qty
79001-05
O-Ring, Solvent Proof
9
79001-06
O-Ring, Solvent Proof
2
79001-07
O-Ring, Solvent Proof
2
79001-01
O-Ring, Solvent Proof
1
A10407 MOUNTING PLATE
O-RING KIT
Part #
Description
Qty
79220-00
Diaphragm
1
74161-00
Spring
1
77354-00
Needle & Seat
1
79001-08
O-Ring, Solvent Proof
1
79001-06
O-Ring, Solvent Proof
1
10409 REGULATOR
REPAIR KIT
Part #
Description
Qty
7554-10
O-Ring, Solvent Resistant
2
7554-11
O-Ring, Solvent Resistant
4
79001-05
O-Ring, Solvent Proof
4
79001-06
O-Ring, Solvent Proof
2
79001-04
O-Ring, Solvent Proof
1
79209-00
O-Ring, Solvent Resistant
1
7554-07
O-Ring, solvent Resistant
4
79001-09
O-Ring, Solvent Proof
1
79001-14
O-Ring, Solvent Proof
1
A10408 MANIFOLD O-RING KIT
Part #
Description
Qty
79244-00
Plug
1
77618-00
Plug Seat
1
79001-19
O-Ring, Solvent Proof
1
79001-14
O-Ring, Solvent Proof
1
77620-00 VALVE PLUG KIT
(Optional - Use In Place Of
Valve & Seat)
Part #
Description
Qty

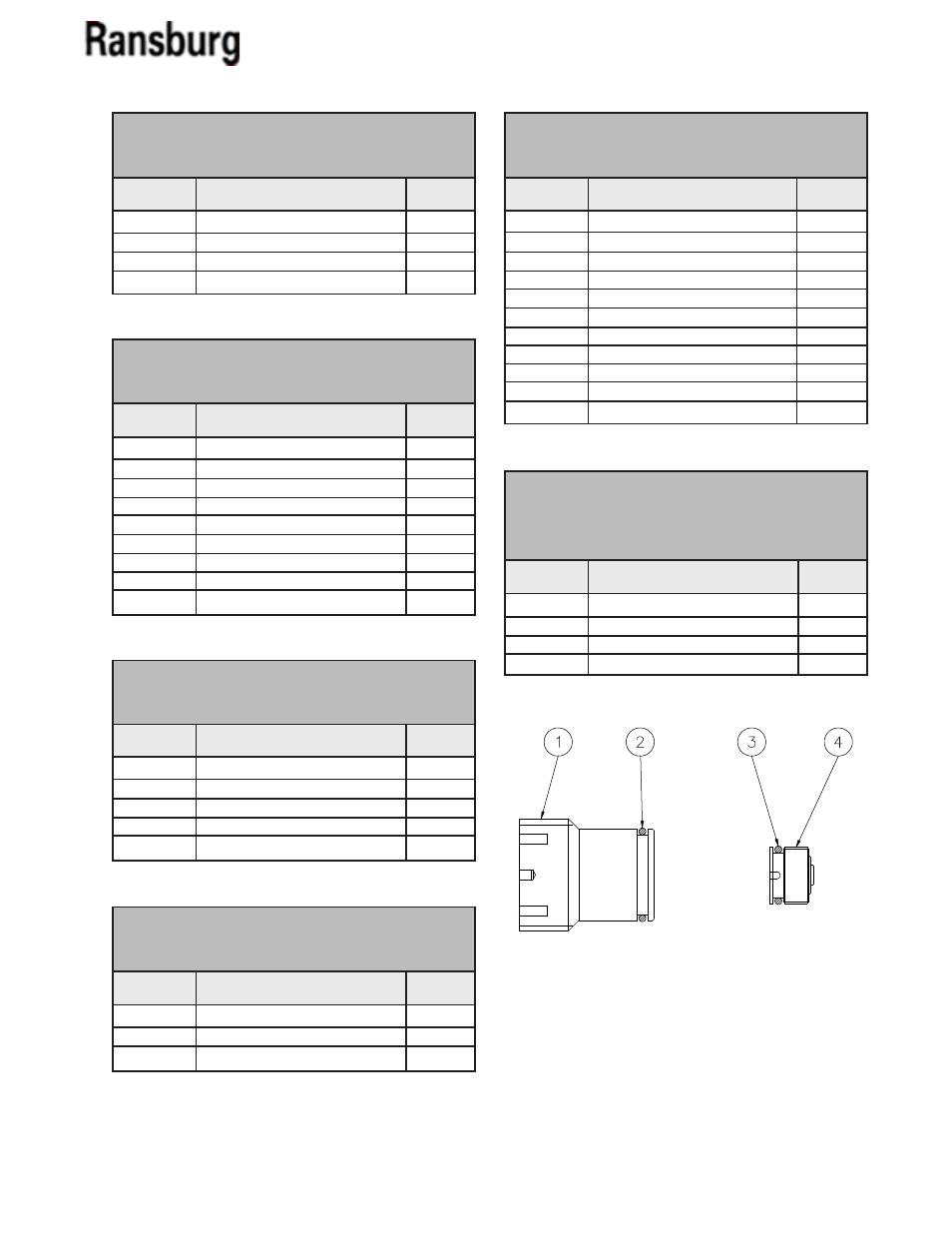

Figure 17: 77620-00 Valve Plug Assembly
