A10406 OR LECU5004 MI-
CROPAK CONTROL UNIT
(See the current "MicroPak" Service Manual supplied
with the control unit for service information.)
ACCESSORIES
Accessories for the Evolver Solventborne Spray Guns
include:
75777-XX
Gun Covers
74035-XX
Test Air Cap and Gauge Assy.
73896-01
Electrode and Air Cap Protector
79203-00
Tool Kit
A10408
Manifold O-Ring Kit
A10407
Mounting Plate O-Ring Kit
A10409
Regulator Repair Kit
A10410
Spray Head Plate O-Ring Kit
A10411
Spray Head Repair Kit
77620-00
Valve Plug Kit
The 74035, Test Air Cap and Gauge Assembly, is de-
signed for use with a Test Station or while the gun is
connected to the robot or reciprocator. The test air
cap is comprised of two air pressure gauges, pres-
sure gauge stand, special 74061-XX air caps, and all
required tubing and fittings.
The air cap has two tapped holes for small barbed
tube fittings. The fittings are located so that the
gauges connected to them will measure the actual
cap pressure of the atomization and pattern air.
Using this test cap will assure uniform atomization
and pattern quality, regardless of air supply tube
lengths from one gun to another.
73896-01 Electrode and Air Cap Protec-
tor
This is a plastic cylinder that fits over the air cap
retainer. The protector keeps the electrode and other
spray head parts from being damaged during booth
cleaning and at other times when the spray gun is
not in use.
79203-00 Tool Kit
Provided with each gun is a tool kit to aid in the disas-
sembly and assembly of the gun during servicing.

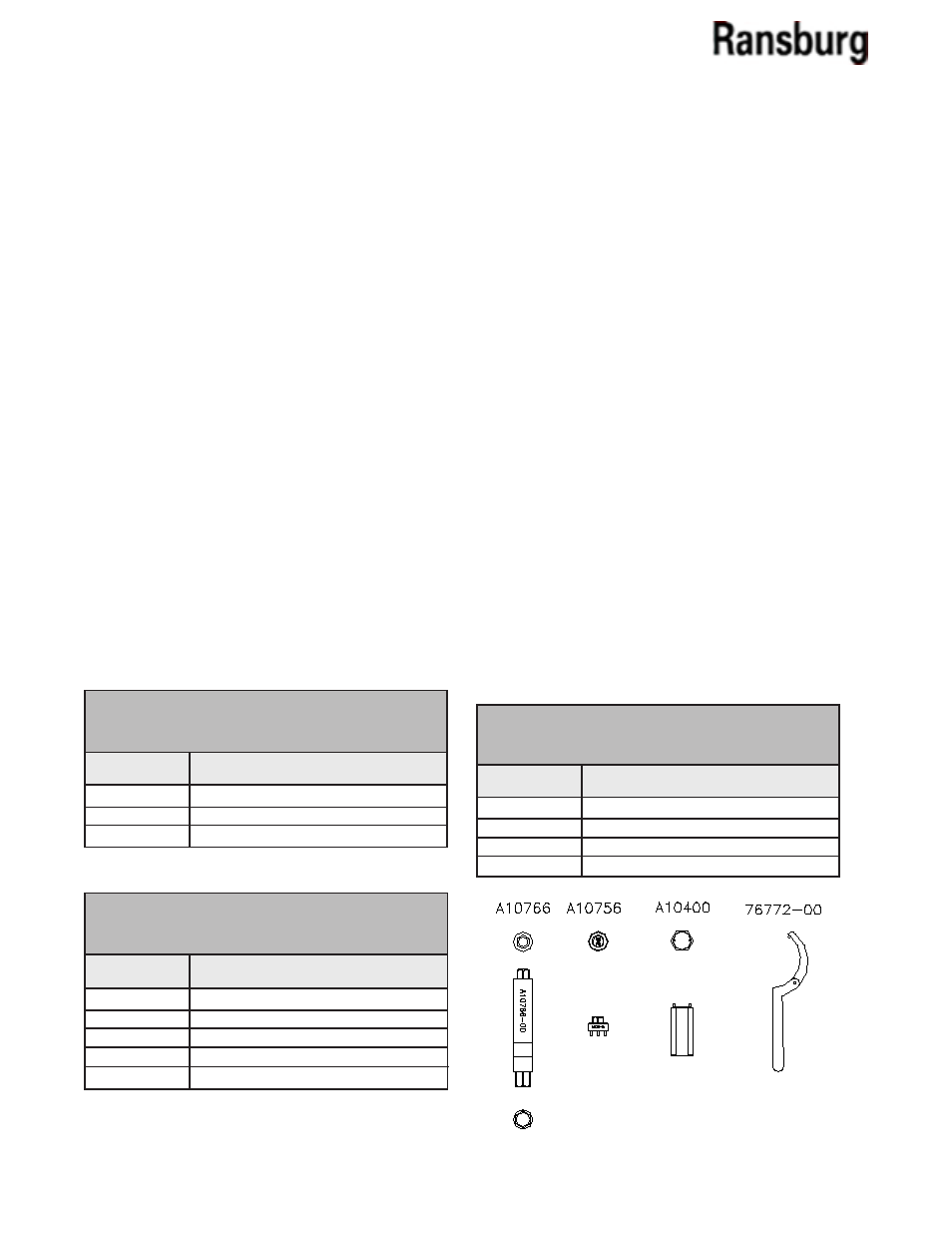

Figure 16: 79203-00 Tool Kit
Evolver Solventborne Robotic Atomizers - Maintenance
75777-01
Single Head Gun
75777-02
Dual Head Gun
75777-03
Robot Wrist Flange
75777-XX GUN COVERS
Part #
Description
74035-21
#65R-1 Test Cap
74035-22
#98-1 Test Cap
74035-23
#63-1 Test Cap
74035-24
#48-1 Test Cap
74035-25
#481-1 Test Cap
74035-XX TEST AIR CAPS &
GAUGE ASSEMBLY
Part #
Description
49
A10756-00
Valve Removal Tool
A10766-00
Valve Seat Removal Tool
76772-00
Retaining Ring Spanner
A10400
Seal Carrier Tool
79203-00 TOOL KIT
(For Dual Head Guns)
Part #
Description
