Agitator, Aquatank - maintenance – Ransburg AquaTank User Manual
Page 14
IS-99-01.4
AquaTank - Maintenance
11
6. Test the resistor block using a megohm
meter across the ground stud and connector
wire. Resistance should be 1.0 gigohm (1000
megohms)
+
/-10%. If resistance is out of this
range, replace resistor block.
7. Replace components in reverse order of which
they were removed.
AGITATOR
If the tubing for the agitator should ever require
maintenance, the following figure shows the tubing
schematic. Using the view of the timer, connect
tube as shown.

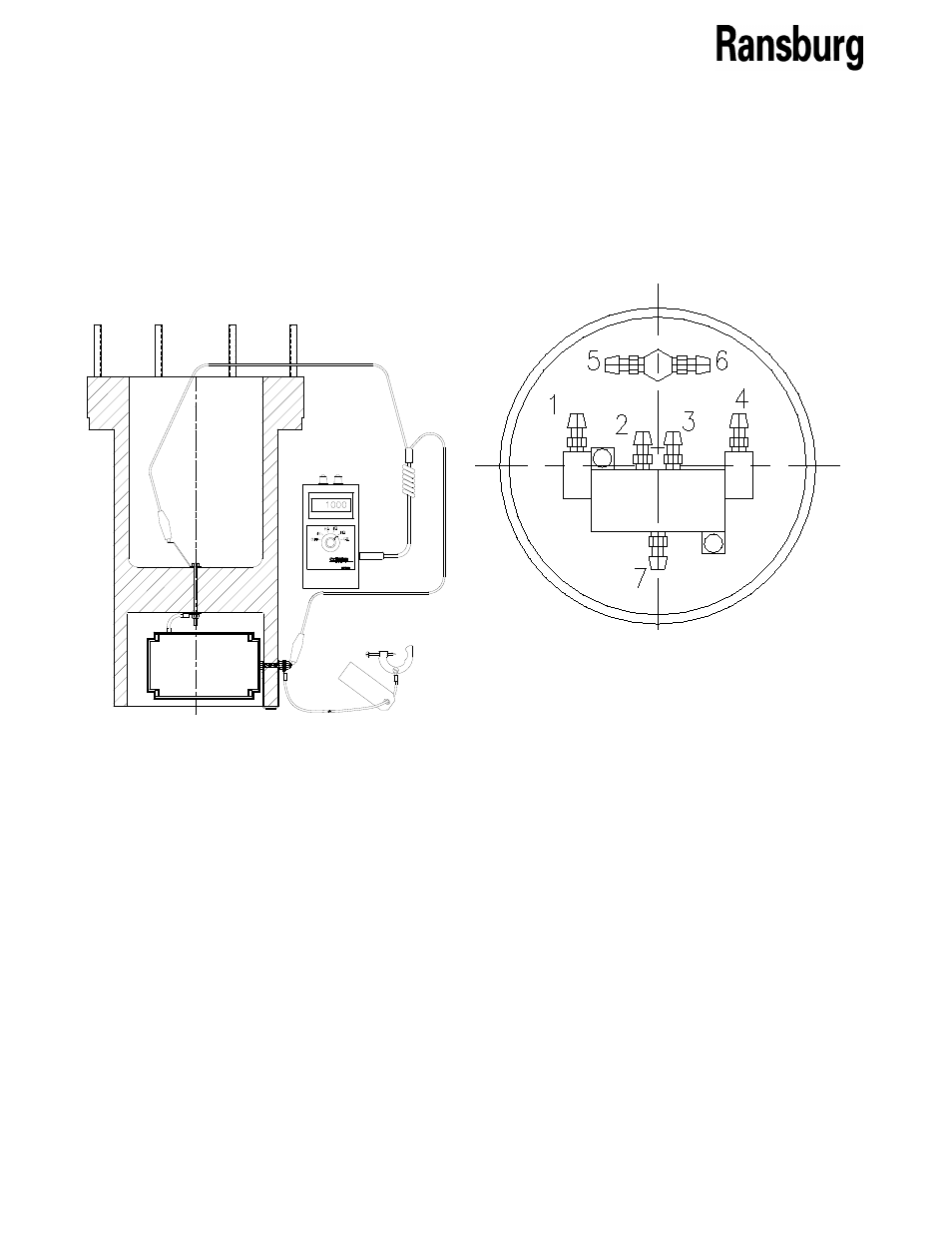

Figure 1: Tank Resistor
Figure 2: Timer Without Lid
• Position 1 to position 3 approximate tube
length 3".
• Position 2 to position 5 approximate tube
length 3-1/2".
• Position 4 to position 6 approximate tube
length 2".
• Position 7 to bulkhead fitting approximate
length 4".
