9
sectIon I
assembly InstructIons
the use and care manual must be read and understood
beFore usIng the applIance
Important: this appliance has multiple uses. the cooking base and the pot can be used
together as a fryer, a boiler, or a stove. the base and the smoker cabinet can be used
together as a smoker or an oven. the instructions regarding the smoker cabinet apply to the
appliance's use as a smoker or oven, whether using a wet or dry cooking process.
Throughout this manual the words appliance, cooker, smoker, fryer/boiler, burner, oven and stove
will be used interchangeably to refer to the King Kooker ® Outdoor Cooker.
assembly InstructIons
tools reQuIred:
phIllIps head screwdrIVer, torQue wrench or adjustable wrench,
leaK testIng solutIon
1. Before assembling, check that all cooker components are included in the shipping carton. Identify
these cooker parts from the required parts list for both the Fryer-Boiler Assembly and the Smoker
Cabinet Assembly. If any parts are missing, contact Metal Fusion, Inc. at 1-800-783-3885 between the
hours of 7:30 a.m. and 3:30 p.m. CST Monday through Friday for replacements.
2. Read assembly instructions, and understand sequence of assembly, before commencing to assemble
your cooker.
3. This package consists of two main components once assembled:
1. Fryer-boiler -See page 10 for assembly.
2. smoker cabinet -See pages 11- 12 for assembly.
The fryer-boiler provides a heat source for the smoker cabinet and must be assembled first.
The fryer-boiler can also be used independently from the smoker cabinet as an outdoor cooker.
When using this appliance as a fryer-boiler alone (no smoker), do NOT use any pot larger than 10
quarts.

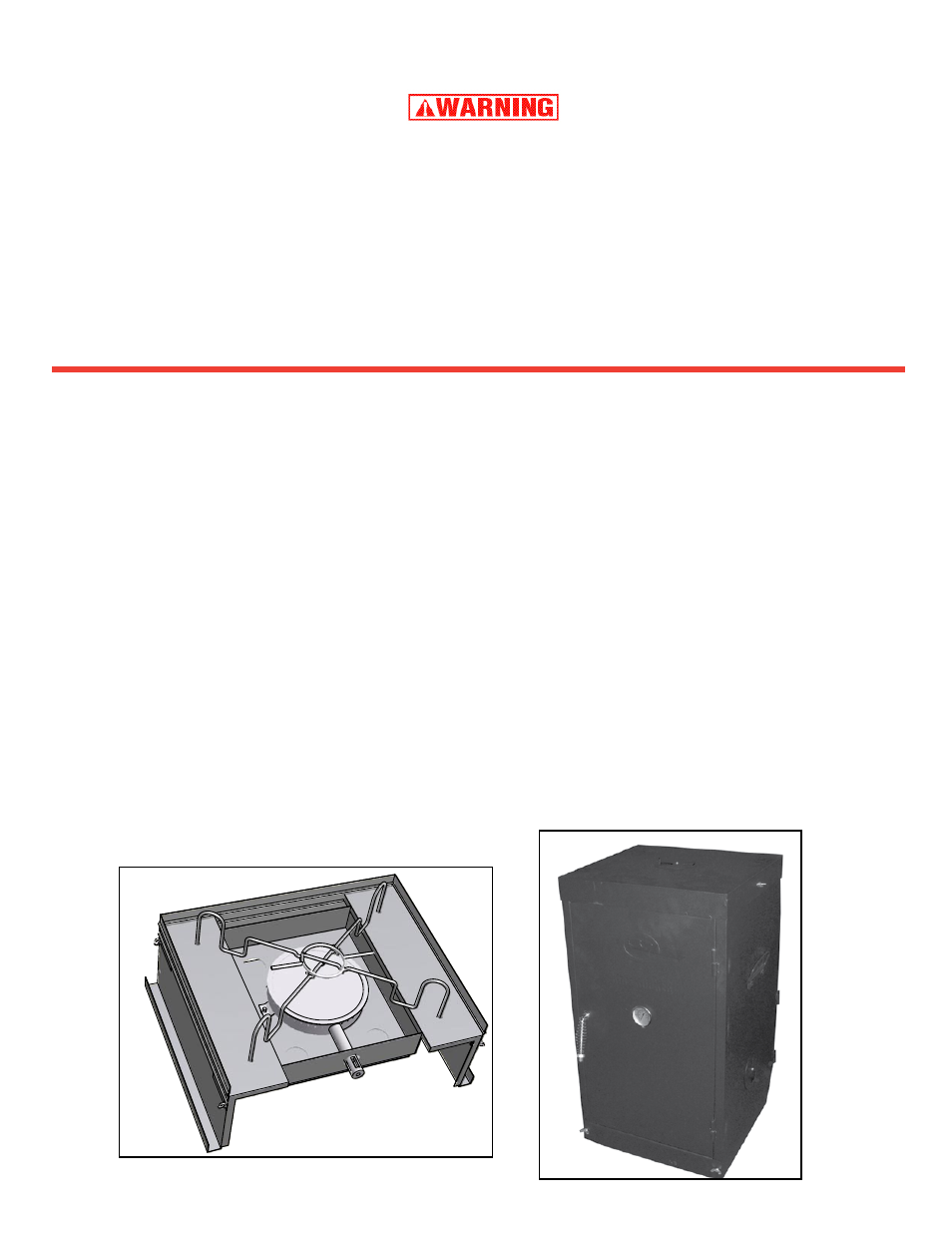

Fryer-boiler
smoker cabinet
