King Kooker 2607 Smoker/Oven/Stove - Manual (Page 10)

Fryer-boIler assembly
1. Locate the three chrome cooking grid pieces. There will be one long grid piece with three indentions,
one long grid piece with two indentions and one round grid piece. Insert the long piece with the three
indentions into the top of the cooker stand using the holes provided. The piece should be inserted
diagonally across the top of the burner as per Figure 1 below. Place the second long piece (two
indentions) into the remaining holes of the stand. This piece should rest diagonally across the burner
and nestle into the middle indention of the first long piece. Place the round grid piece on top of the
installed cooking grids with the four “U” prongs facing down. The “U” prongs should be placed
around the installed long pieces to hold the round grid in place. See below Figure 1.
2. A windguard shield is provided for use as an accessory for fryer-boiler use only (not for use with
smoker cabinet. ) The windguard shield can not be installed if using this appliance as a smoker.
To attach windguard shield, align the four holes located on the windguard shield to the four holes
located on the sides of the cooker frame (two holes on each side.) Insert wing-head thumb screws (4)
through the windguard shield and tighten to cooker frame. See below Figure 1 for picture of correct
assembly.
3. Tighten the hose fitting into the venturi with a torque wrench, up to a torque of 95 to 105 lb./in.
Alternatively, hand tighten securely and then, using a wrench, tighten an additional 1-1 1/2 turns. See
below Figure 1.
4. If using this cooker as a fryer-boiler, go to the use and care section of this manual for further
instructions. If using as a smoker base, continue on to the next page.
reQuIred parts lIst:
(1) cooker stand and burner
(2) chrome cooking grids
(1) chrome round cooking grid
(1) hose and regulator
(1) deep Fry thermometer
(1) windguard shield
(4) wing-head thumb screws
10

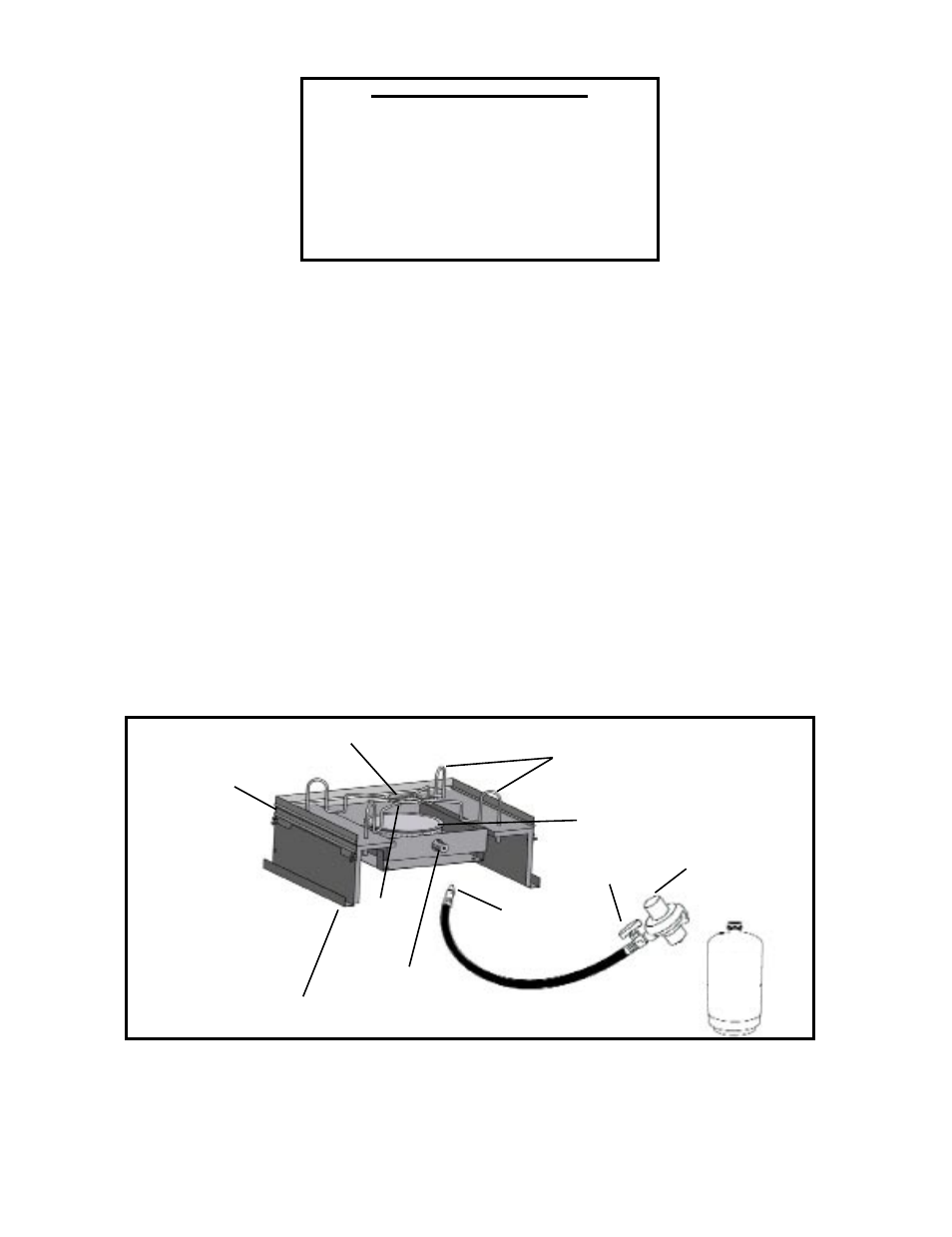

Figure 1
round grId
regulator
burner
orIFIce
cooKIng
grIds
VenturI
tube
wIndguard
shIeld
"u"
prong
cooKer
stand
manual
ValVe
1 LB.
LP GAS
CYLINDER
