King Kooker 2607 Smoker/Oven/Stove - Manual (Page 12)

12
5. Install the smoker top piece over the outside of the attached smoker side walls and smoker back
wall. Make sure to allign the three holes on the sides of the smoker top to the corresponding holes
located on each side wall and smoker back wall. Tighten with supplied wing-head thumb screws (3).
6. Install the dampers onto each side wall and top of the smoker cabinet using supplied small screws,
lock washers and nuts (one screw through each damper.) Screws should be inserted toward inside
of smoker cabinet. Tighten on inside of cabinet with supplied lock washers and nuts.
7. Install front smoker door handle using (1) cool grip door handle with 1.5" threads, (2) flat washers,
(1) latch (steel tab), (1) nut and (1) lock washer. Insert flat threaded end of handle through front
smoker door as shown in Figure 5. Keep cool grip handle horizontal. Place the (2) flat washers over
the flat threaded end of handle protruding from spacer on inside of front smoker door. Place latch
(steel tab) over the flat threaded end of handle protruding from spacer on inside of front smoker door.
The rectangular latch should be positioned on the handle with the long side down (see Figure 6) so
that when the door is closed and handle is turned to the lock position it will latch behind the smoker
body to hold the door closed. Place the lock washer against the latch. Tighten with supplied nut. To
latch the front door shut, close door and turn handle down to latch in place.
8. Install rear access door handle using (1) cool grip door handle with 1" threads, (1) latch (steel tab),
(1) flat washer, (1) nut and (1) lock washer. Insert flat threaded end of handle through rear access
door as shown in Figure 7. Keep cool grip handle horizontal. Place the flat washer over the flat
threaded end of handle on inside of rear access door. Place latch (steel tab) over the flat threaded
end of handle on inside of rear access door. The rectangular latch should be positioned on the
handle with the long side down (see Figure 8) so that when the door is closed and handle is turned
to the lock position it will latch behind the smoker body to hold the door closed.Place the lock
washer against the latch. Tighten with supplied nut. To latch the rear access door shut, close door
and turn handle down to latch in place.
9. Install cabinet thermometer on front smoker door. Remove nut from stem of thermometer and
insert stem through the front of the smoker door in hole provided. Reattach nut to thermometer stem
on inside of door to tighten.
10. Go to the use and care section of this manual for further instructions.

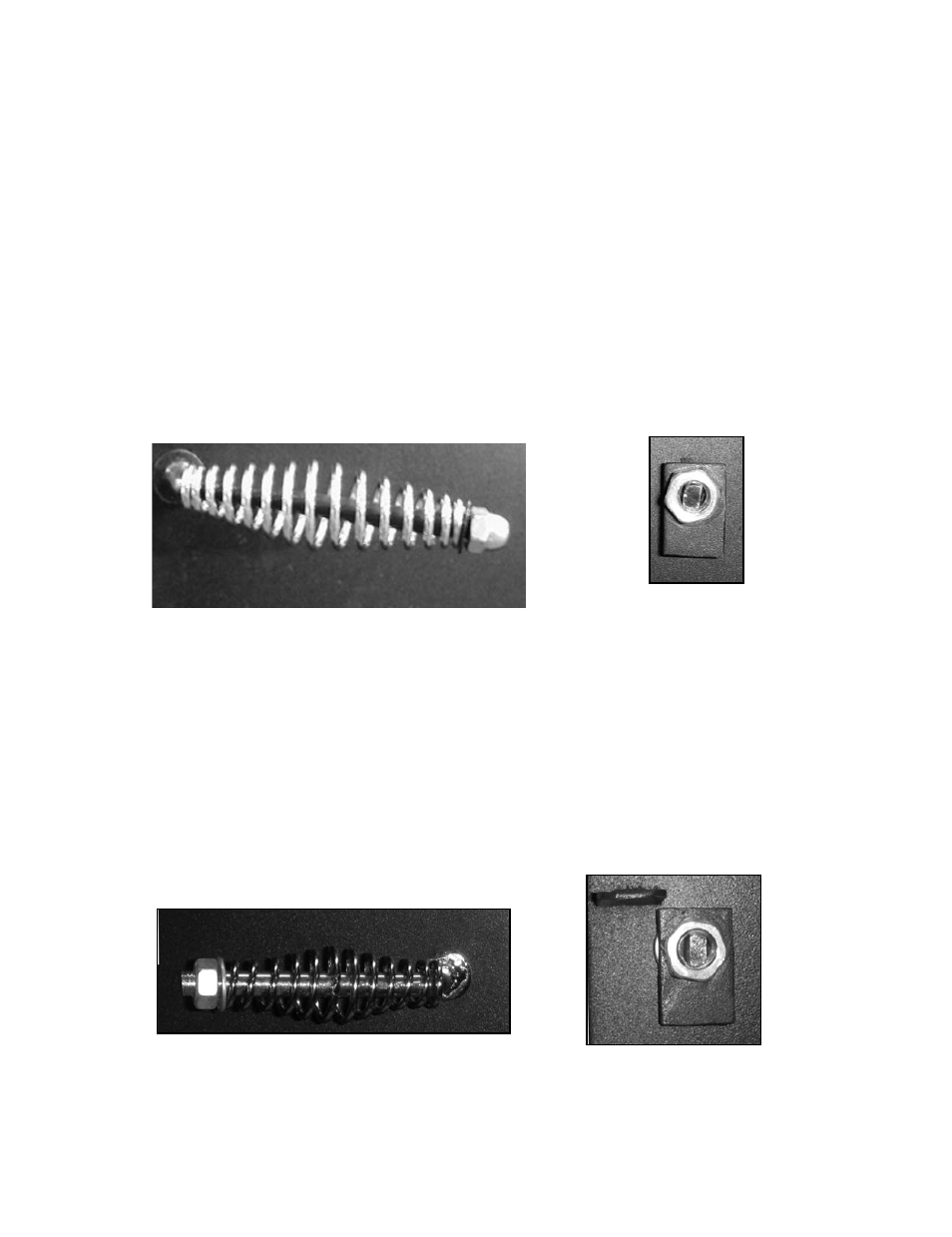

Figure 5
Figure 6
Figure 7
Figure 8
