smoKer cabInet assembly
1. Locate "right" side wall (with hinges) and place on flat surface (rack holder tabs facing down). Align four
holes on rear access door to four holes located on hinges (hinges placed on top of rear access door).
See below Figure 3 for picture of correct assembly. Insert four small screws through holes in hinges
and rear access door and tighten with lock washers and nuts on inside of rear access door.
2. Attach the smoker back wall (with four bracket pins) to the two side walls by sliding the four bracket
pins located on the smoker back wall into the bracket receivers located on the two side walls (two on
inside of each wall). See Figure 4 above for example of a proper bracket pin/receiver attachment. The
rack holder tabs located on each side wall should face towards the inside of the smoker chamber and
the handles should face towards the outside.
3. Attach the front face plate to the two side walls by inserting the bracket pins (located on the inside of
the front face plate) into the bracket receivers located on the bottom front edge of each side wall.
Insert wing-head thumb screws (2) through the holes on front face plate and tighten as pictured in
Figure 2.
4. Install the smoker front door to the "right" side wall using the provided bracket pins/receivers located on
outside of wall.
(smoker cabinet assembly instructions continued on pg. 12)
reQuIred parts lIst:
( 1) smoker Front door
(1) smoker back wall
(1) rear access door
(1) left side wall
(1) right side wall with hinges
(1) Front Face plate
(1) smoker top
(3) dampers
(1) Front door cool grip handle with 1.5" threads, (2) Flat washers,
(1) latch, (1) lock washer and (1) nut
(1) rear access door cool grip handle with 1" threads, (1) Flat
washer, (1) latch, (1) lock washer and (1) nut
(1) steel water pan
(1) steel wood chip pan and lid
(2) chrome racks
(1) cabinet thermometer
(7) wing-head thumb screws
(7) small screws/nuts/lock washers
11

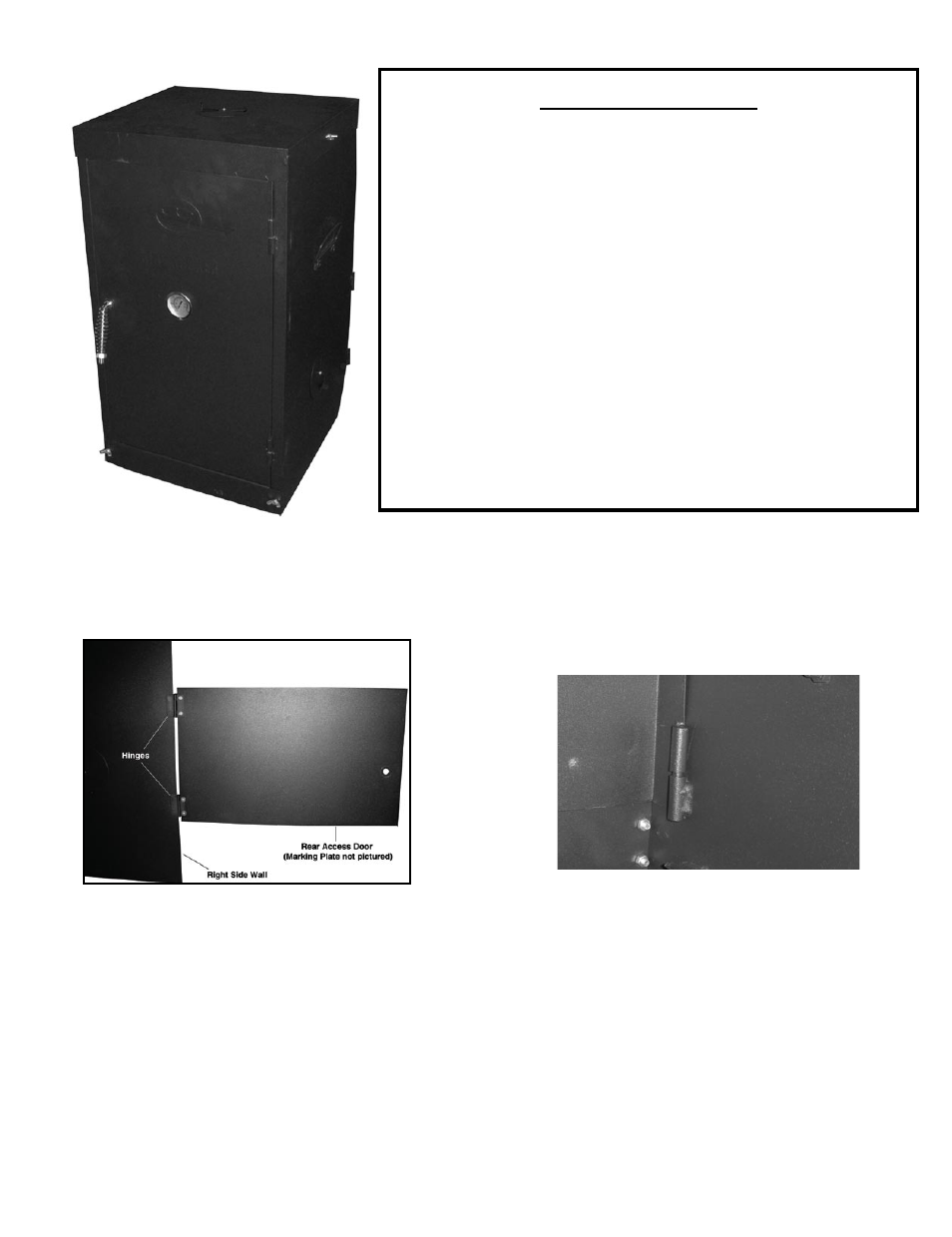

Figure 2
