Display
Screen
Control Panel
Laser Sighting
Measuring
Window
Measuring
Trigger
Battery and
Cover
SPECIFICATIONS:
Distance/Spot Ratio: 30:1
Temperature Range: -25.6° to 1400°F (-32° to 760°C)
Accuracy: ±5°F (±3°C) within -25.6° to -4°F (-32° to -20°C)
±3°F (±2°C) within -4° to 212°F (-20° to 100°C)
±2% within 212° to 1400°F (100° to 760°C)
Thermopile: 8 ~ 14µm
Repeatability: ±2°F (±1°C)
Resolution: 0.1°F (0.1°C)
Response Time: 500 ms.
Operating Temperature: 32° to 122°F (0° to 50°C),
10 to 90%RH
Auto Power Off: Automatically after approx. 6 seconds
Emissivity: Adjustable 0.1 ~ 1.0
°F/°C Switchable: YES
Backlight: YES
Laser Sight Switchable: YES
Audible alarm: YES
Max/Min/Avg/
ΔT: YES
Auto Measuring: YES
10 Point Memory: YES
Dual Display: YES
Tripod Mount: YES
Dimensions: 7.8" x 6.5" x 2" (200 x 166 x 51mm)
Battery Type: “9V” battery
Weight: 10.6 oz. (300 g) Approx.
Accessory: “9V” battery, Instruction Manual,
Soft Carrying Case
OPERATIONS OF INSTRUMENT
QUICK START:
To measure a temperature, point the unit at the target that
you want to measure, pull themeasuring trigger and hold.
Be sure to consider the target area that is inside the angle of
vision of this instrument. The single spot of laser is used for
aiming only

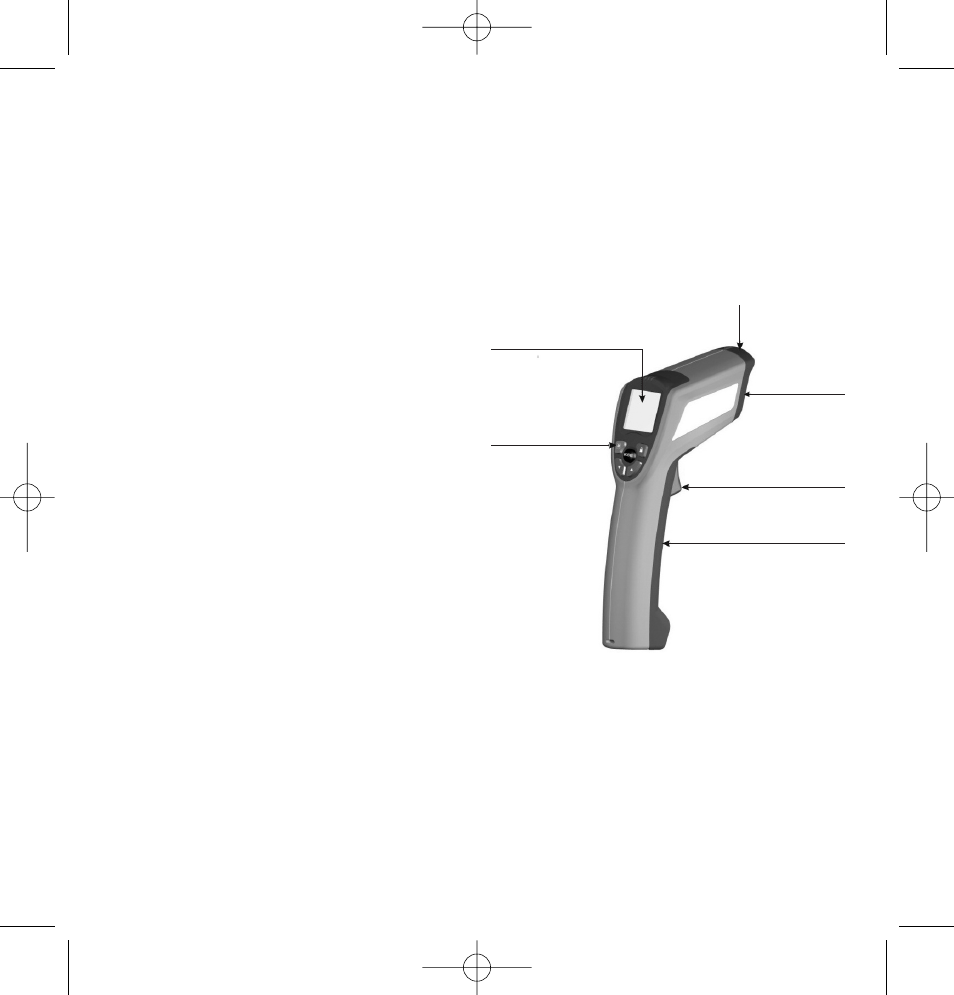

UNIT DIAGRAM:
