PRODUCT OVERVIEW
Figure 2 shows all of the controls and indicators and other
physical features of the CT6235B. Familiarize yourself with
their names and locations before continuing.
A. Surface speed wheel
B. 1/2" rubber rpm adapter
(shown inserted
in plastic sleeve)
C. Tachometer shaft
D. Measurement button
(on right side)
E. Function switch,
labeled
“m, m/min, rpm”
F. MEM button
G. Display window
H. Battery compartment
cover (in back)
I. Jack for 6-V AC/DC
adapter (on left side)
J. 1/4" rubber rpm adapter
K. 1/4" rubber rpm
adapter with
hollowed end

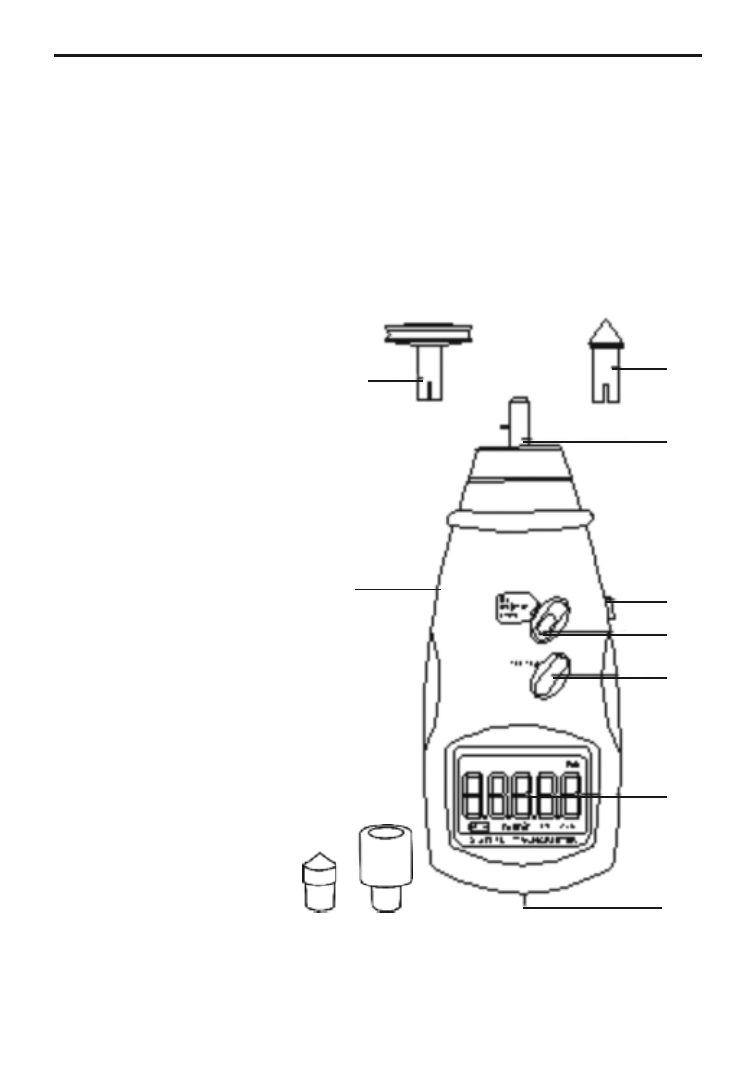

Fig. 2. The CT6235B’s controls and indicators and other
physical features
6
SURFACE
SPEED WHEEL
1/2" RPM ADAPTER
INSERTED IN BLACK
PLASTIC SLEEVE
C
D
E
F
G
H
K J
I
B
A
