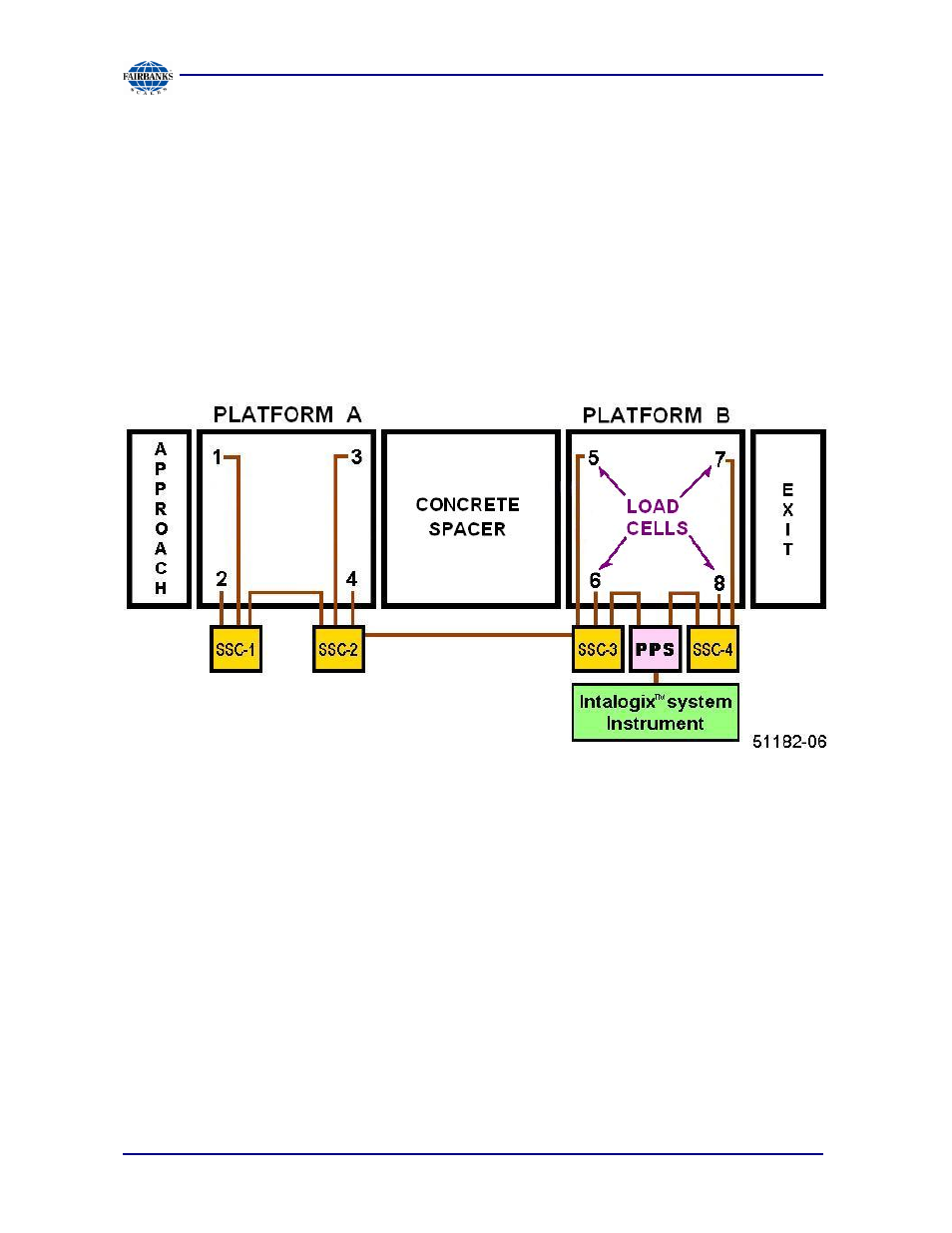

Cell Numbering

• Intalogix™ Technology installations use a specific numbering system for load

cells because of digital addressing of the SSCs.

• With respect to the following starting position, face the platform where the

indicator is located.

• The cell at the upper-left (far side) of the platform is

Cell One (1).

• The cell positions along the far side have

odd cell numbers

• The near side locations have

even cell numbers.

SSC Connections

Each SSC has connections for two (2) incoming load cells, labeled

TB1

and

TB2

• The

odd

numbered cell goes to

TB1.

• The

even

numbered cell goes to

TB2.
