Battery installation – Fairbanks 1155 SERIES Portable Utility SCALE WITH THE FB2255 User Manual
Page 21
Section 2: Assembly
02/13
21
51315 Rev. 1

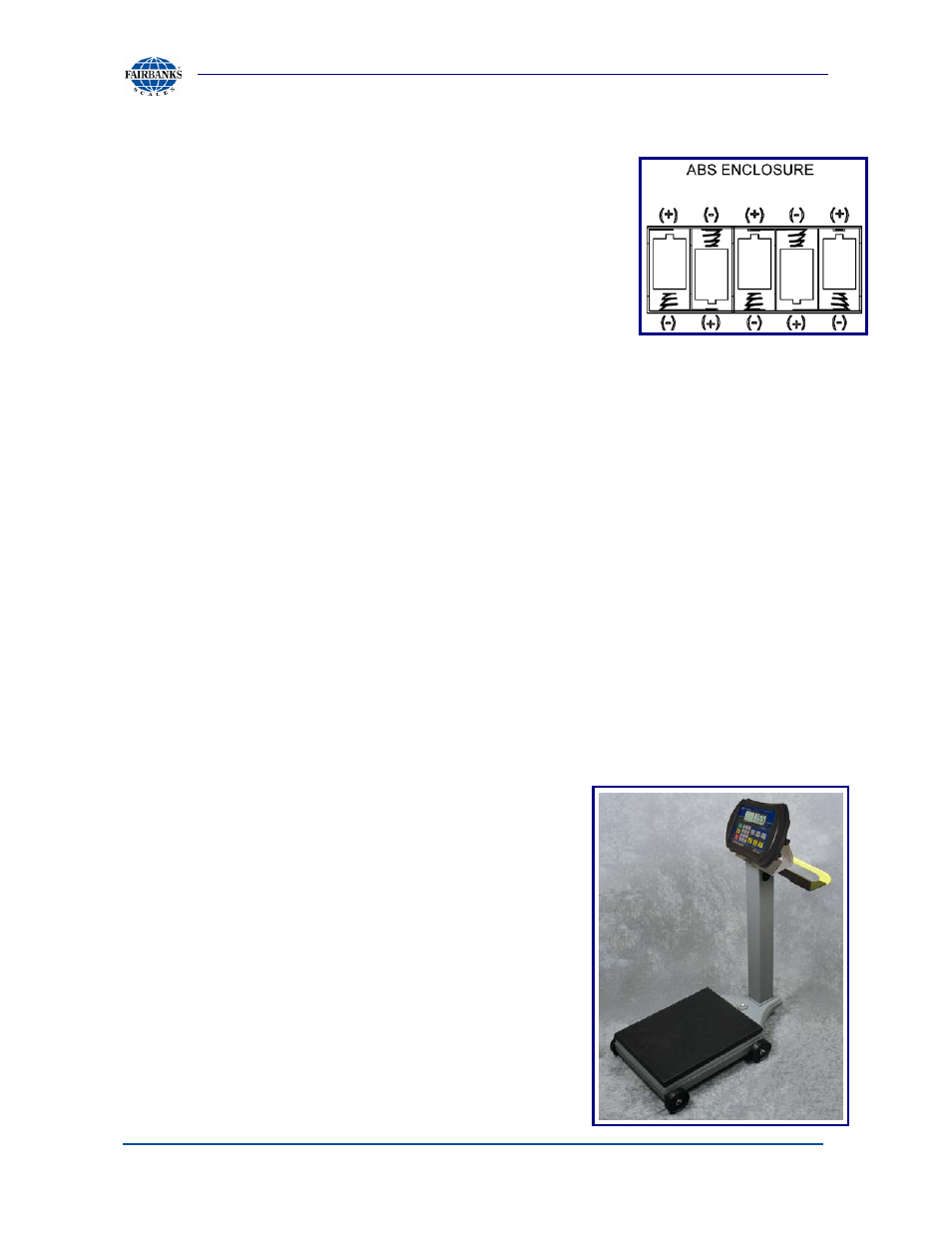

2.7. BATTERY INSTALLATION
1. Loosen the Indicator positioning knobs (located at each
side), and then rotate the unit forward to access the back
Battery (ABS) Enclosure.
2. Unscrew the two large knurled screws on the back of the
Instrument
3. Remove the battery cover.
4. Insert five (5) alkaline “D” cell batteries.
– Industrial ‘D’ size Energizer EN95 battery or equivalent is recommended for
maximum operating time.
5. Refasten the back cover and tighten the knurled screws.
6. Reposition the indicator, and tighten back the knobs.
