Section 2: Assembly
02/13 20 51315 Rev. 1

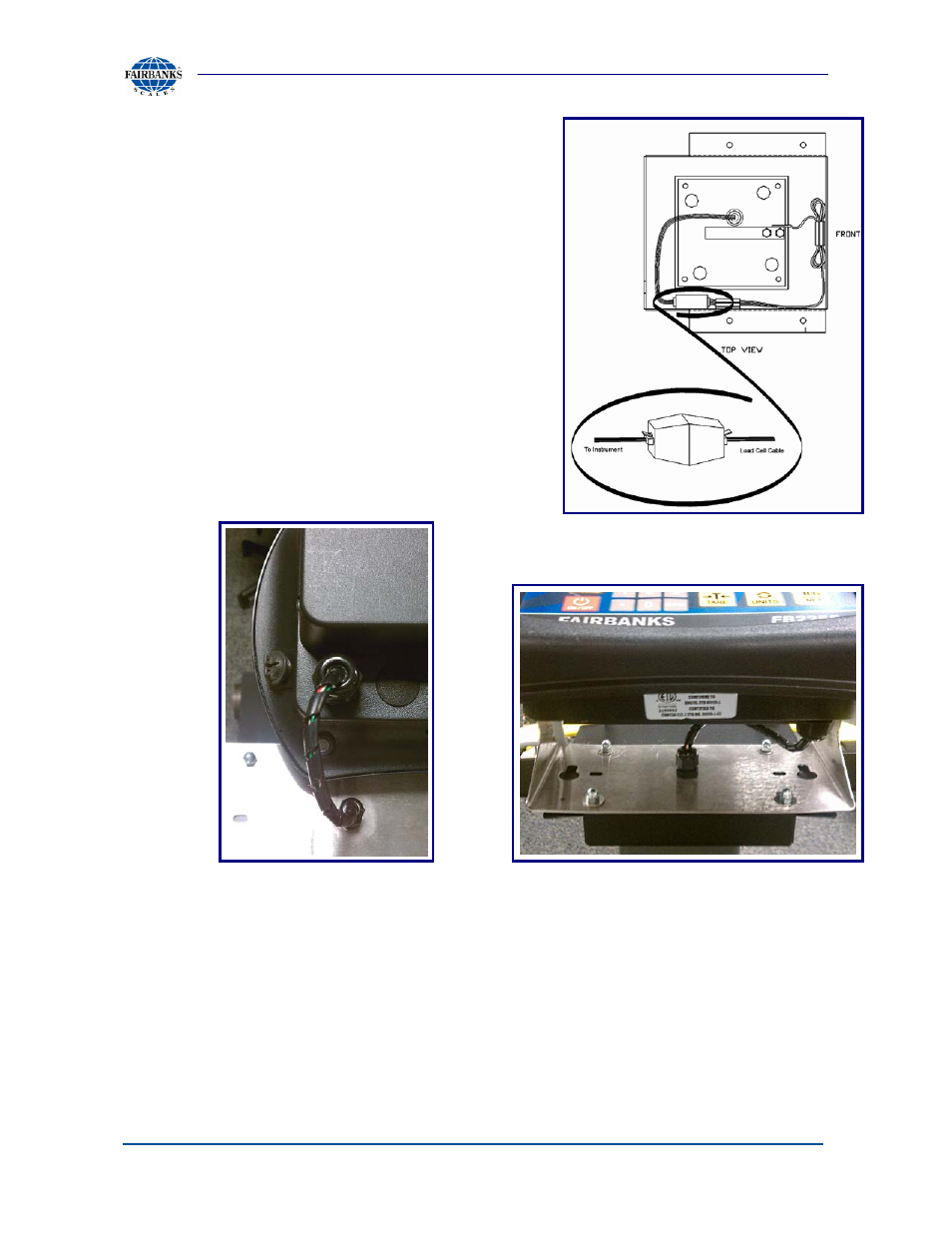

2.6. INSTALLING THE INSTRUMENT
1. Connect the in-line phone plug adapter to the
telephone plug, and then to the load cell cable.
2. Plug the end of the instrument cable into the
adapter.
3. Slide the plastic gland bushing on the
instrument section of cable into the center of
the adapter plate.
4. Tighten-down the plastic nut.
5. Tuck the cable into the large plastic clips so it
does not contact the load cell or become
damaged.
6. Place the instrument on top of the bracket with the keypad/display facing the
scale platform.
7. Remove the rubber feet on the bottom of the FB2255’s tilt bracket.
8. Fasten the instrument to the adapter using the four (4) screws, washers, lock
washers and nuts (as shown).
