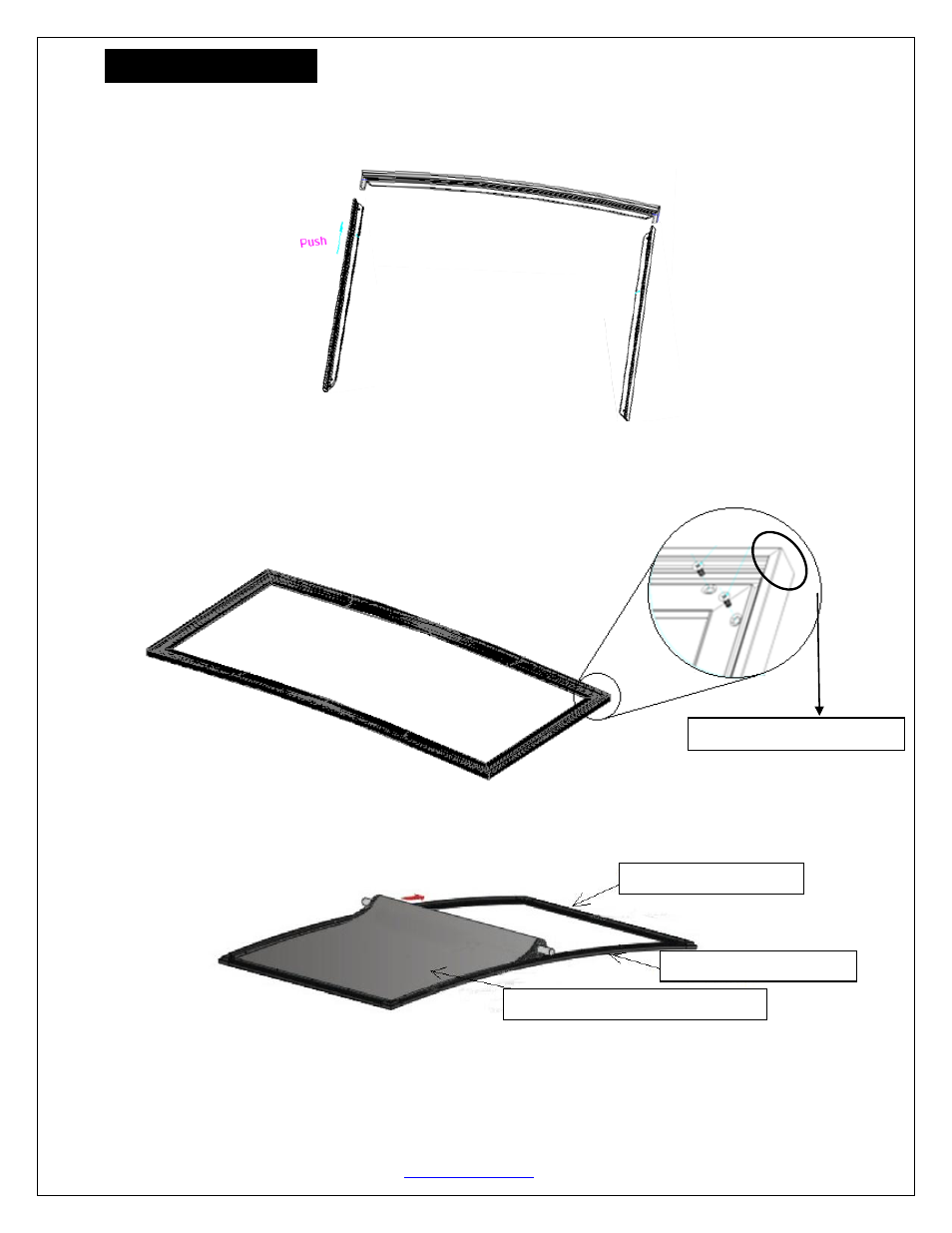

Frame Assembly
1. Insert both Elbow Joints (J) into each Horizontal Curved Frame (N) and join all four frame
parts together as shown below.
2. After making sure that all four corners join at right angles (forming a perfect rectangle),
fasten the four angles together by using x8 M5 screws (E).
3. Layout the Screen Material and Tension Rods on a clean and dry surface. Then, gently
roll out the screen material over the back of the fixed frame.
Vertical Upright Fame
Horizontal Curved Frame
Black Backing of the screen material
Minimal gap is normal here
