Percent Oxygen Analyzer Introduction 1
Teledyne Analytical Instruments

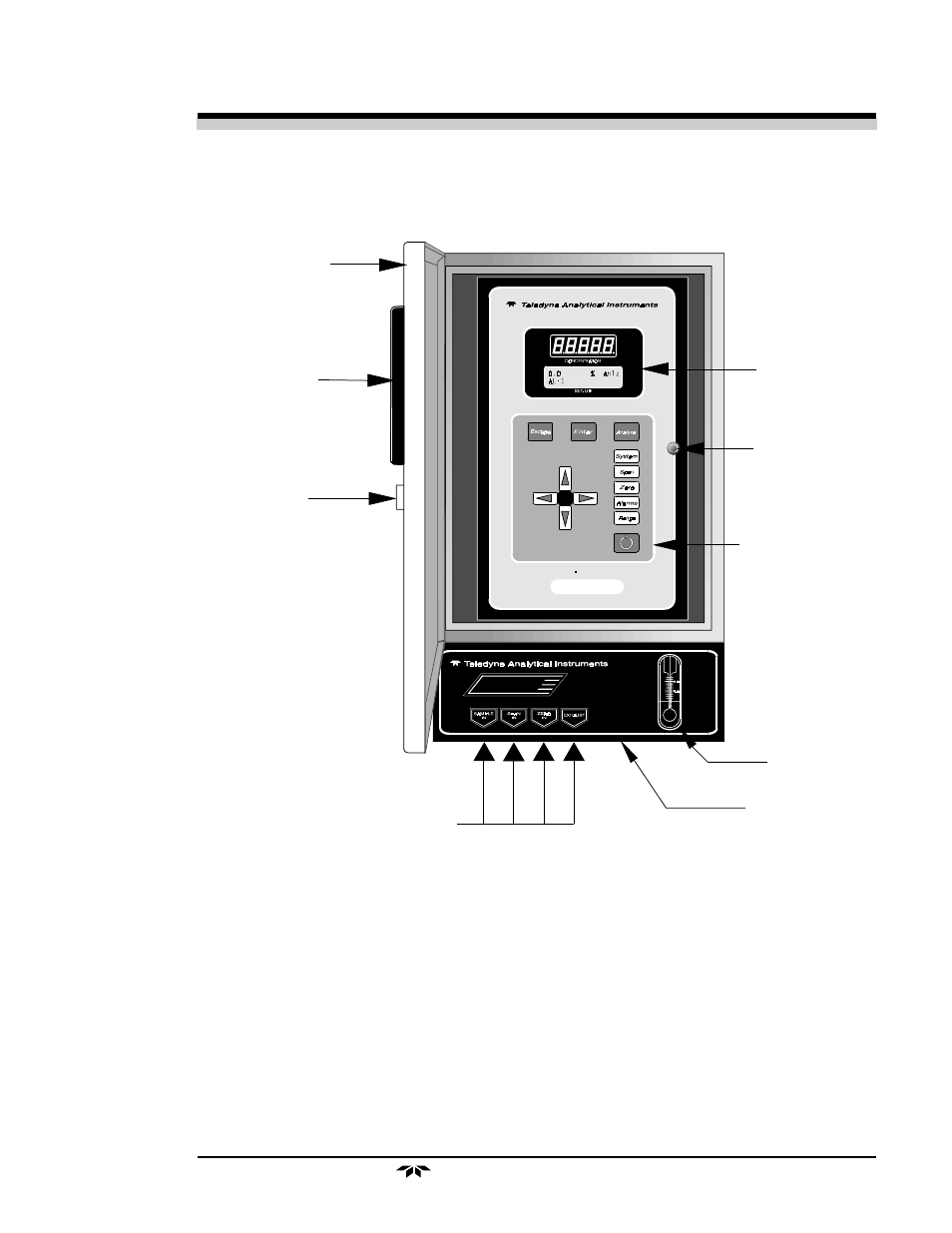

Figure 1-1: Model 3000MB Front Panel
1.5 Front Panel (Operator Interface)
The standard 3000MB is housed in a rugged metal case with all con-
trols and displays accessible from the front panel. See Figure 1-1. The front
panel has thirteen buttons for operating the analyzer, a digital meter, an
alphanumeric display, and a window for viewing the sample flowmeter.
GAS CONNECTION
(LOCATED BEHIND GAS PANEL)
OUTER DOOR
LATCH
VIEWING
WINDOW
OUTER DOOR
(OPEN)
FLOWMETER
GAS CONNECTOR
PANEL
INNER DOOR
LATCH
DIGITAL
METER
CONTROL
PANEL
