3 Installation Model 3000MA
3-2 Teledyne Analytical Instruments

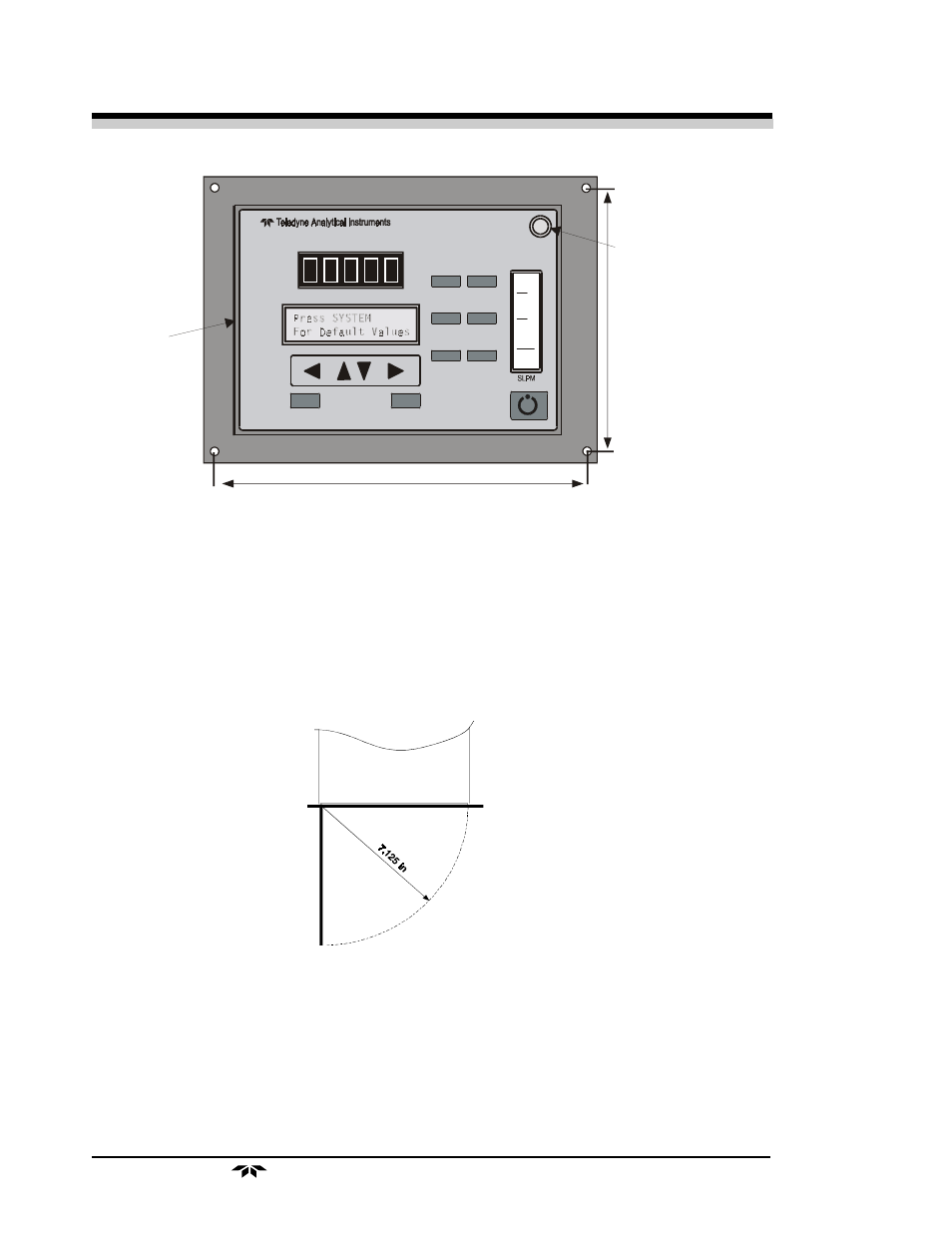

Figure 3-1: Front Panel of the Model 3000MA
All operator controls are mounted on the control panel, which is hinged
on the left edge and doubles as the door that provides access to the sensor
inside the instrument. The door is spring loaded and will swing open when
the button in the center of the latch (upper right corner) is pressed all the way
in with a narrow gauge tool (less than 0.18 inch wide), such as a small hex
wrench or screwdriver Allow clearance for the door to open in a 90-degree
arc of radius 7.125 inches. See Figure 3-2.
Figure 3-2: Required Front Door Clearance
3.3 Rear Panel Connections
Figure 3-3 shows the Model 3000MA rear panel. It contains all of the
gas and electrical inputs and outputs. Some ports are optional equipment.
Refer to page iii in the front of this manual for options included in your
instrument. Be sure to note the instrument serial number.
6.7”
10”
2.0
1.0
Hinge
Latch
Analyze System
Span Zero
Alarms Range
Enter Escape
3000MA
OXYGEN ANALYZER
