8. Charging the 2240 battery
Equipment Required
• Battery Charger Power Supply
• Power Cord for country of use
• Battery Charger
• Single Bay Battery Charger
• Optional Dual Bay Battery Charger

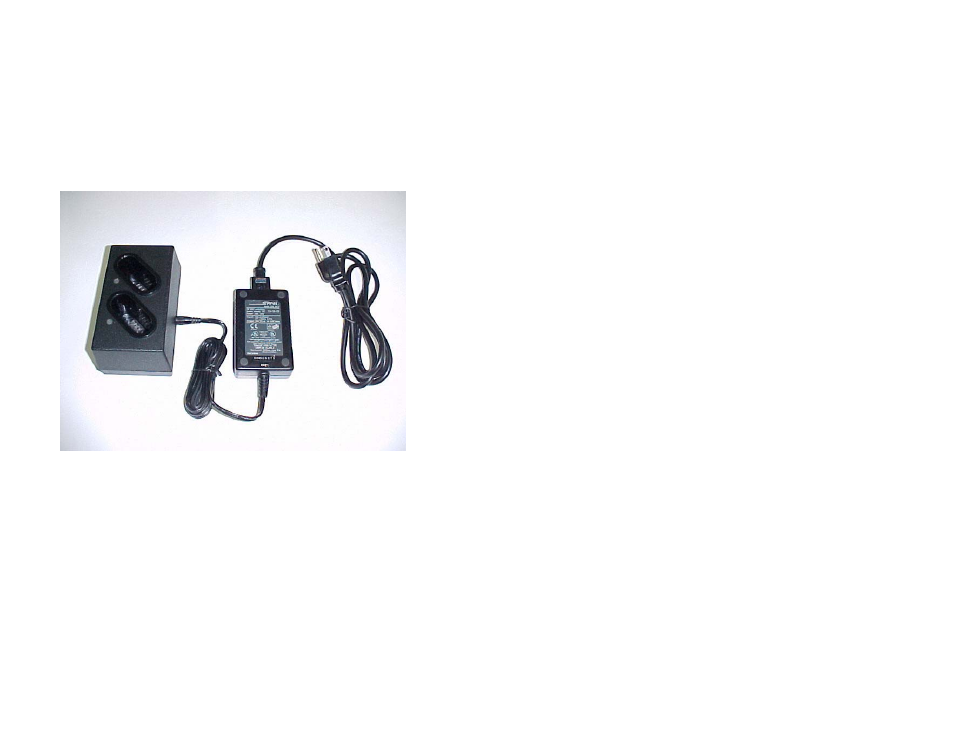

Figure 4 -
2240 Dual Bay Battery Charger (optional)
with Power Supply and Power Cord
Page 24 of 26
M2240 R0
Charging/Re-Charging the Battery(ies)
• Plug the power cord into the Power Supply and insert
the DC output plug into the socket on the Battery
Charger.
• Plug the power cord into an appropriate AC outlet.
The charging status lamp(s) will flash yellow then turn
off.
• Plug the battery (or two batteries with optional Dual
Bay Battery Charger) into the pocket of the Battery
Charger. Make sure the battery is oriented properly
and firmly seated down onto the connector blades
(batteries installed backwards will not make contact).
The status lamp(s) will illuminate to indicate the status
of the batteries as follows:
• OFF - No battery detected
• Red - Charging
• Green - Battery fully charged
• Yellow - Standby
• Flashing Red - Error
