Server SY-X (85480/84190) User Manual

On off on off, Parts list liste des piéces lista de piezas

background image

01861-REVD-012412

Server Products Inc.

3601 Pleasant Hill Road

Richfield, WI 53076 USA

(262) 628-5600
(800) 558-8722
(262) 628-5110
[email protected]
www.server-products.com

ON

OFF

ON

OFF

85480

84190

Part #

Model

Description

Description

Descripción

04544

All

Switch, Snap-in Rocker

Interrupteur à bascule à enclenchement

Interruptor, basculante enchufable

04627

84190

Thermal Cutout

Thermorupteur

Interruptor térmico

05256

84190

Heating Element (120V)

Élément chauffant (120 V)

Elemento calefactor (120 V)

05257

All

Heating Element Bracket (3)

Support du Élément chauffant (3)

Soporte de Elemento calefactor (3)

11201

All

Bushing, Strain Relief, 18/3

Douille, serre-câble, 18/3

Buje, protección contra tirones, 18/3

11379

All

Cord Assembly (USA)

Cordon (É.-U.)

Conjunto del cable (EE.UU.)

81058

All

Foot w/ Screw (4)

Pied avec vis (4)

Pie con tornillo (4)

84158

84190

Syrup Vessel Assembly

Récipient à sirop

Vasija para miel

84161

84190

Heat Dispersion Plate

Plaque de dispersion de chaleur

Placa de dispersión térmica

84183

All

Nut, Jam, Brass

Contre-écrou en laiton

Contratuerca, latón

84193

84190

Body Assembly

Corps

Conjunto del cuerpo

84198

All

Mounting Bracket

Support de montage

Soporte de montaje

84199

84190

Lid Assembly

Couvercle

Conjunto de la tapa

84217

All

Washer, Black Rubber, Beveled

Rondelle biseautée, caoutchouc noir

Arandela, caucho negro, biselada

85473

85480

Lid Assembly

Couvercle

Conjunto de la tapa

85475

85480

Syrup Vessel Assembly

Récipient à sirop

Vasija para miel

85476

All

Faucet

Robinet

Grifo

85479

All

Thermostat Bracket

Support du thermostat

Soporte del termostato

85481

85480

Body Assembly

Corps

Conjunto del cuerpo

85483

85480

Heat Dispersion Plate

Plaque de dispersion de chaleur

Placa de dispersión térmica

85484

85480

Heating Element (120V)

Élément chauffant (120 V)

Elemento calefactor (120 V)

85485

All

Thermostat Lock

Verrou du thermostat

Seguro del termostato

85487

All

Faucet Assembly Kit

Robinet

Juego de grifo

85494

85480

Heat Shield Plate

Plaque de Bouclier de Chaleur

Plato de Escudo de Calor

86218

85480

Thermal Cutout

Thermorupteur

Interruptor térmico

90186

All

Thermostat

Thermostat

Termostato

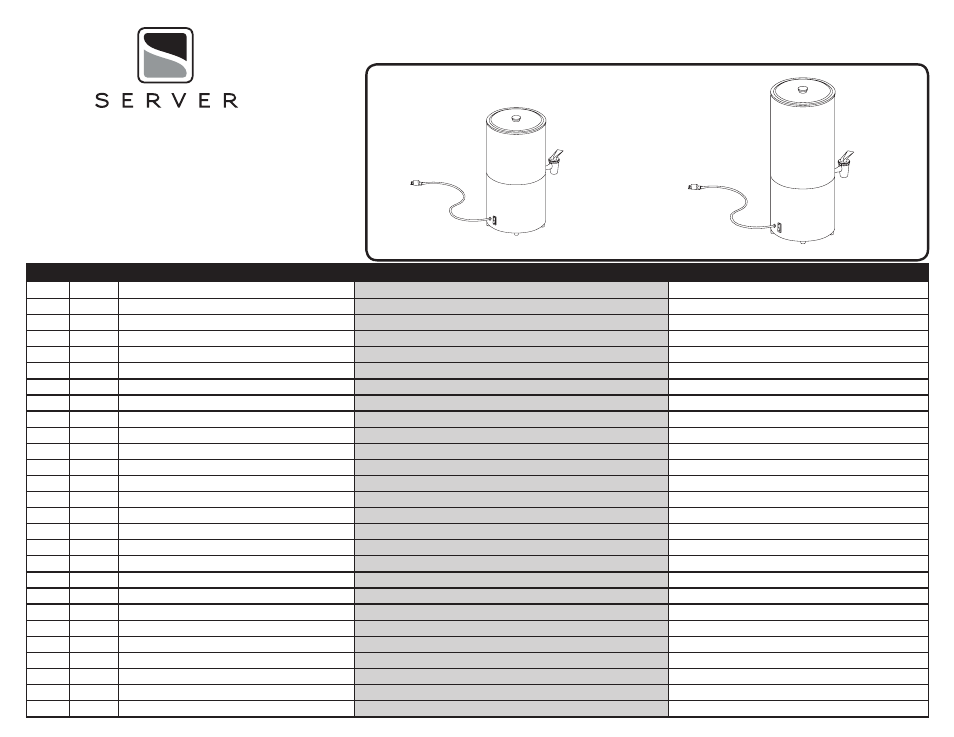

PARTS LIST

LISTE DES PIÉCES

LISTA DE PIEZAS

1.5 Gallon Syrup Server with Faucet
120V (Series 03G)
Stock No. 85480

3 Gallon Syrup Server with Faucet
120V (Series 04B)
Stock No. 84190
