The bank of dipswitches (see top view), are used to configure the ProtoNode in the field. Available
configurations are node address, baud rate and configurations profile.
Return to Table of Contents

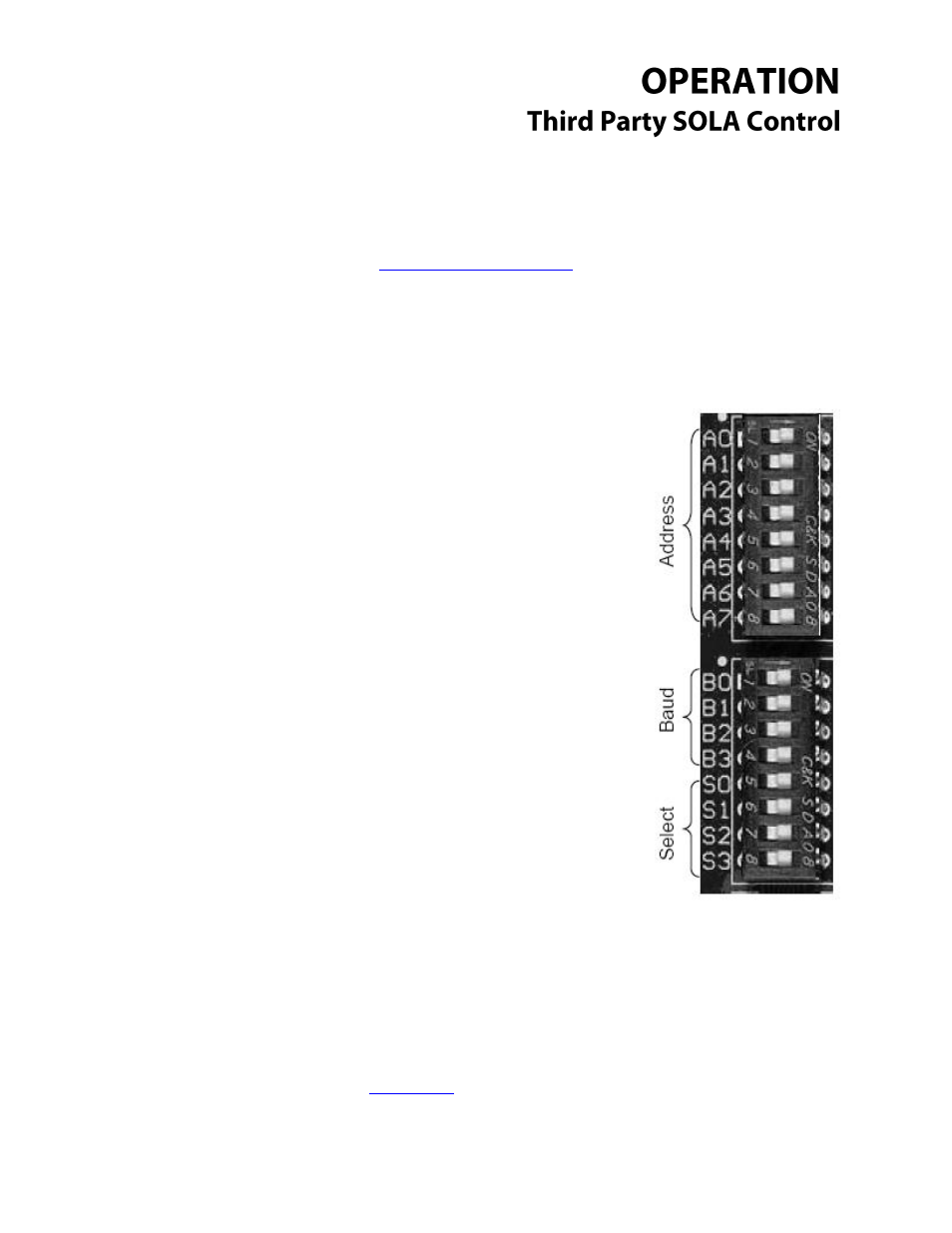

Module Dipswitch Overview: All Modules

Dipswitches A0 – A7 are used to set the node
address of the ProtoNode device. See Addendum 1
for full address list and settings.

Dipswitches B0 – B3 are used to set the ProtoNode
baud rate. See Addendum 2 for full list and settings.

Dipswitches S0 – S3 are used to set which profile the
ProtoNode uses when it loads the config files it
requires to function. See Addendum 3 for full profile
list and settings.
