Lonworks Module: General and Connection Overview

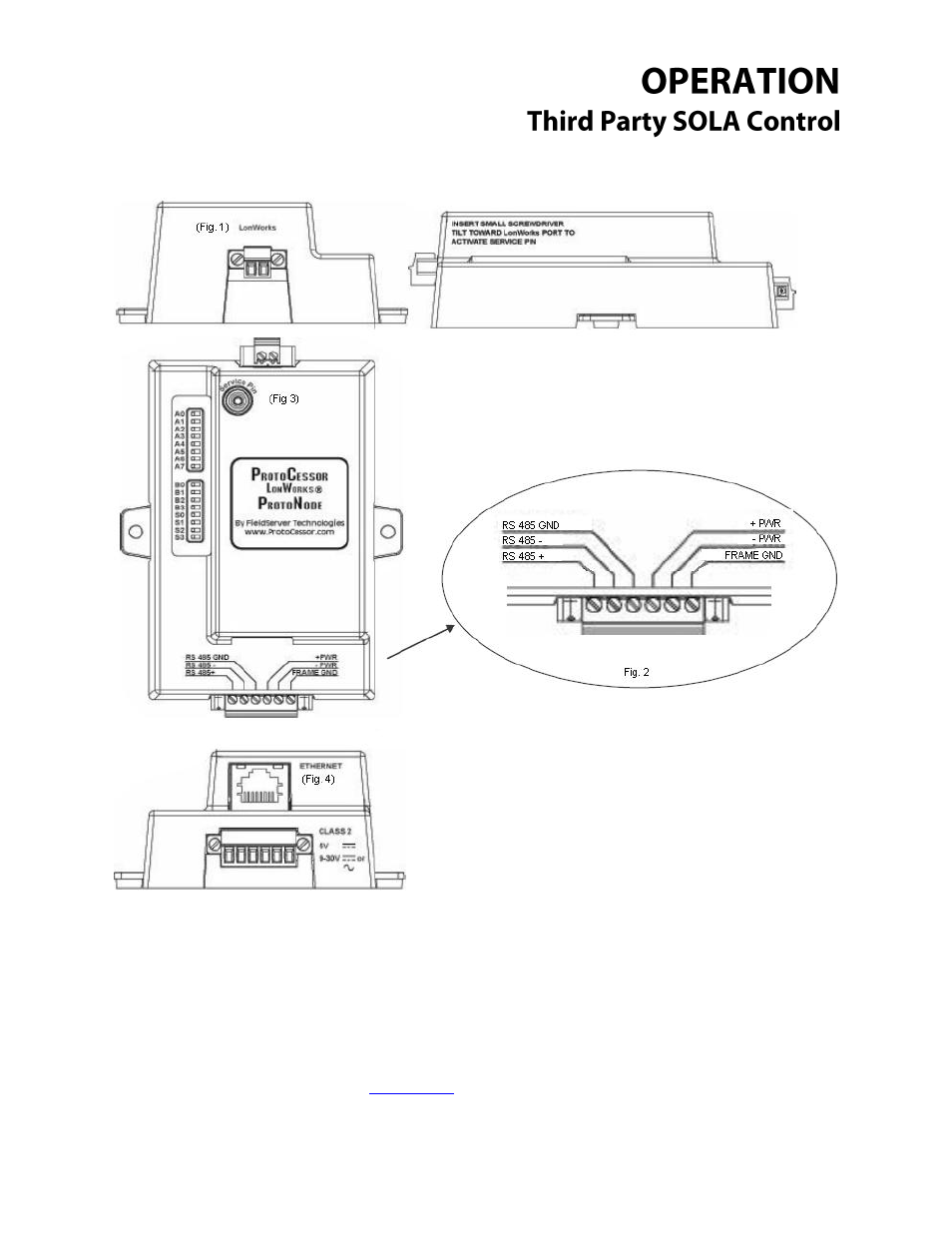

The Lonworks ProtoNode provides three access ports (one server side, one client side and a service
port). The six pin connector (Fig. 2) provides RS 485 connection to the ModSync as well as provides the
24vdc power to the ProtoNode itself. The two pin connector (Fig. 1) provides Lonworks connection to
the Building Management System. The last available port is the Ethernet port (Fig. 4), which is used for
service situations such as downloading configuration files.
