M 9 6 5 115 _ Rev. 1. 3

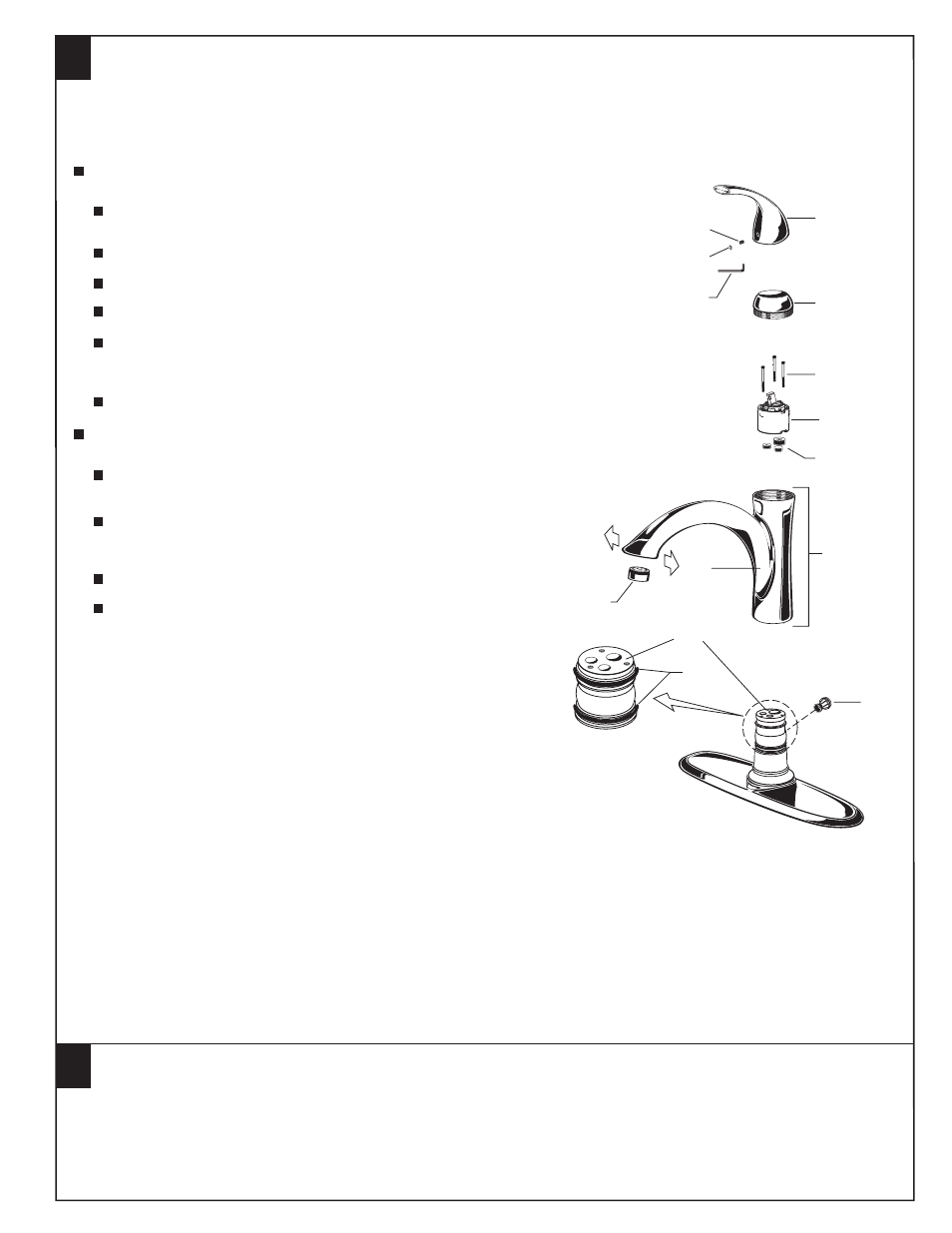

Spout leakage. If fitting leaks above or below SPOUT HUB remove SPOUT as follows
and check SPOUT O-RINGS. First turn off water supply.
Remove HANDLE BUTTON (2) and loosen SET SCREW (1) with 2.5mm HEX
WRENCH (11) supplied. Pull HANDLE (3) off valve stem.
Pull off CAP (4). Loosen CARTRIDGE SCREWS (5) and remove CARTRIDGE (6).
Remove SPOUT (7) by pulling up gently while moving SPOUT (7) side to side.
Check both SPOUT O-RINGS (8) for damage. Replace if necessary.
On models with SPRAYS, DIVERTER (9) can be cleaned by pulling
DIVERTER (9) out of the MANIFOLD (10). Rinse clean the DIVERTER (9)
and MANIFOLD (10). Push DIVERTER (9) back into MANIFOLD (10).
Reverse procedure to reinstall SPOUT, CARTRIDGE and HANDLE.
Remove PLUG BUTTON (2), loosen HANDLE SCREW (1) and
remove HANDLE (3).
Remove ESCUTCHEON CAP (4). Unscrew the three CARTRIDGE
SCREWS (5). Clean MANIFOLD (10), CARTRIDGE (6) ports and
SEALS (13).
Clean inlets of CARTRIDGE (6) and MANIFOLD (10).
Reassemble CARTRIDGE (6), alternately tightening SCREWS (5).
Replace CAP (4) and HANDLE (3). Check flow.
SERVICE
5
Clogged CARTRIDGE outlets or inlets may cause reduced flow.
To clean, first turn off water supply then:
Reduced flow. If the flow gradually reduces over a number of months, the AERATOR (12) may have collected debris.
To clean, remove AERATOR (12) and rinse with water and remove any debris. Turn on faucet to wash any debris
out of the faucet. Thread AERATOR (12) back into spout. Operate faucet.
6
3
1
2
11
8
10
7
4
5
6
13
12
9
SPOUT
HUB
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
CARE INSTRUCTIONS:
