22 P/E-P55T2P4D User’s Manual
III. INSTALLATION
3. Parallel Printer Connector (26 Pin Block)
Connection for the included parallel port ribbon cable with mounting bracket.
Connect the ribbon cable to this connection and mount the bracket to the case
on an open slot. It will then be available for a parallel printer cable. Note:
Serial printers must be connected to the serial port. You can enable the parallel
port and choose the IRQ through BIOS Setup on page 38 "Onboard Parallel
Port."

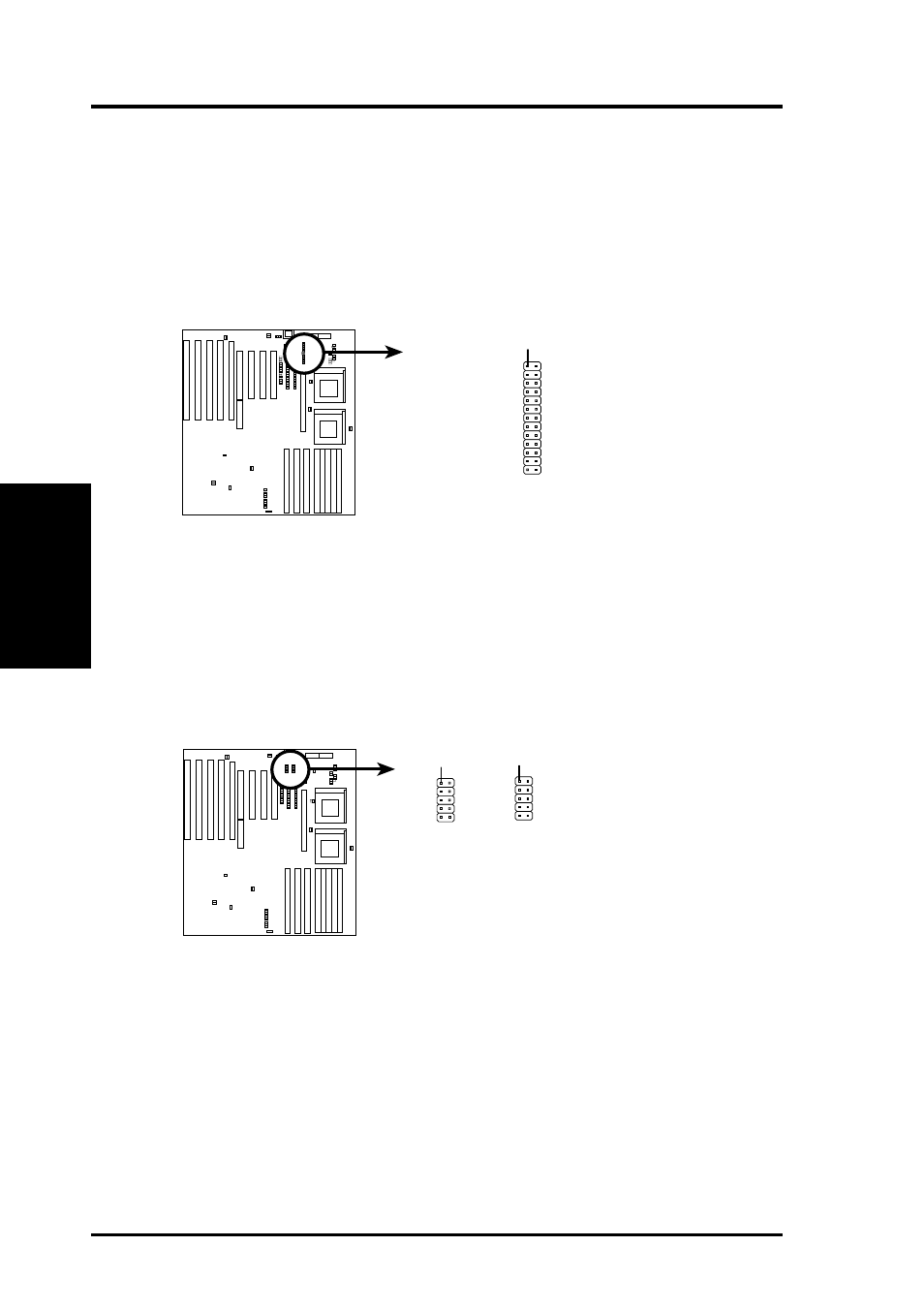

Onboard Parallel (Printer) Connector
Pin 1
4. Serial port COM1 and COM2 connectors (Two 10-pin blocks)
These connectors support the provided serial port ribbon cables with mounting
bracket. Connect the ribbon cables to these connectors and mount the bracket
to the case on an open slot. The two serial ports on the mounting bracket will
then be used for pointing devices or other serial devices. See page 38 for
BIOS configuration of "Onboard Serial Port"
COM 1 COM 2
Pin 1
Onboard Serial Port Connectors
Pin 1
(Connectors)
