Static RAM (SRAM) for Level 2 (External) Cache
The motherboard you purchase has no cache onboard. An "ASUS" or "COAST"
cache module can be used to upgrade to 256KB or 512KB.
IMPORTANT: You must set jumper 2 "Total Level 2 Cache Size Setting" on
page 13 when changes are made to your cache size.

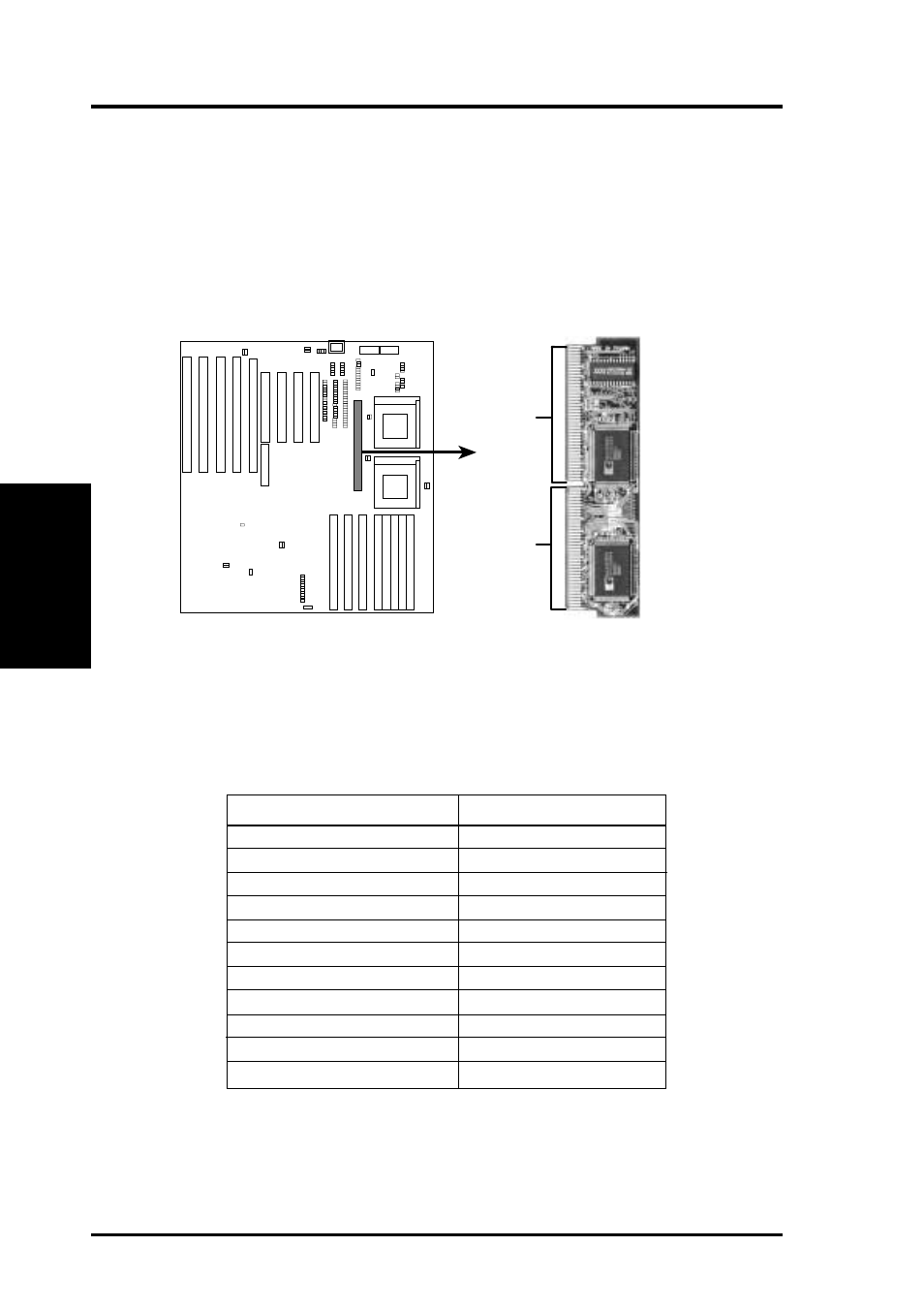

Pipelined Burst Cache Module
42 Pins
38 Pins
Insert the module as shown. Because the number of pins are different on either side
of the break, the module will only fit in the orientation as shown.
Compatible Cache Modules for this Motherboard
IMPORTANT: ASUS CM1 Rev 1.6 cache module must have a TAG RAM
when it is used on this motherboard.
SIMM Cache Module 0KB to 256/512KB
ASUS CM1 Rev 1.0 No
ASUS CM1 Rev 1.3 No
ASUS CM4 Rev 1.5 No
ASUS CM1 Rev 1.6 TAG Yes
ASUS CM1 Rev 3.0 To Be Qualified
COAST 1.1 No
COAST 1.2 No
COAST 1.3 No
COAST 2.0 To Be Qualified
COAST 2.1 To Be Qualified
COAST 3.0 To Be Qualified
