P/E-P55T2P4D User’s Manual 13
III. INSTALLATION

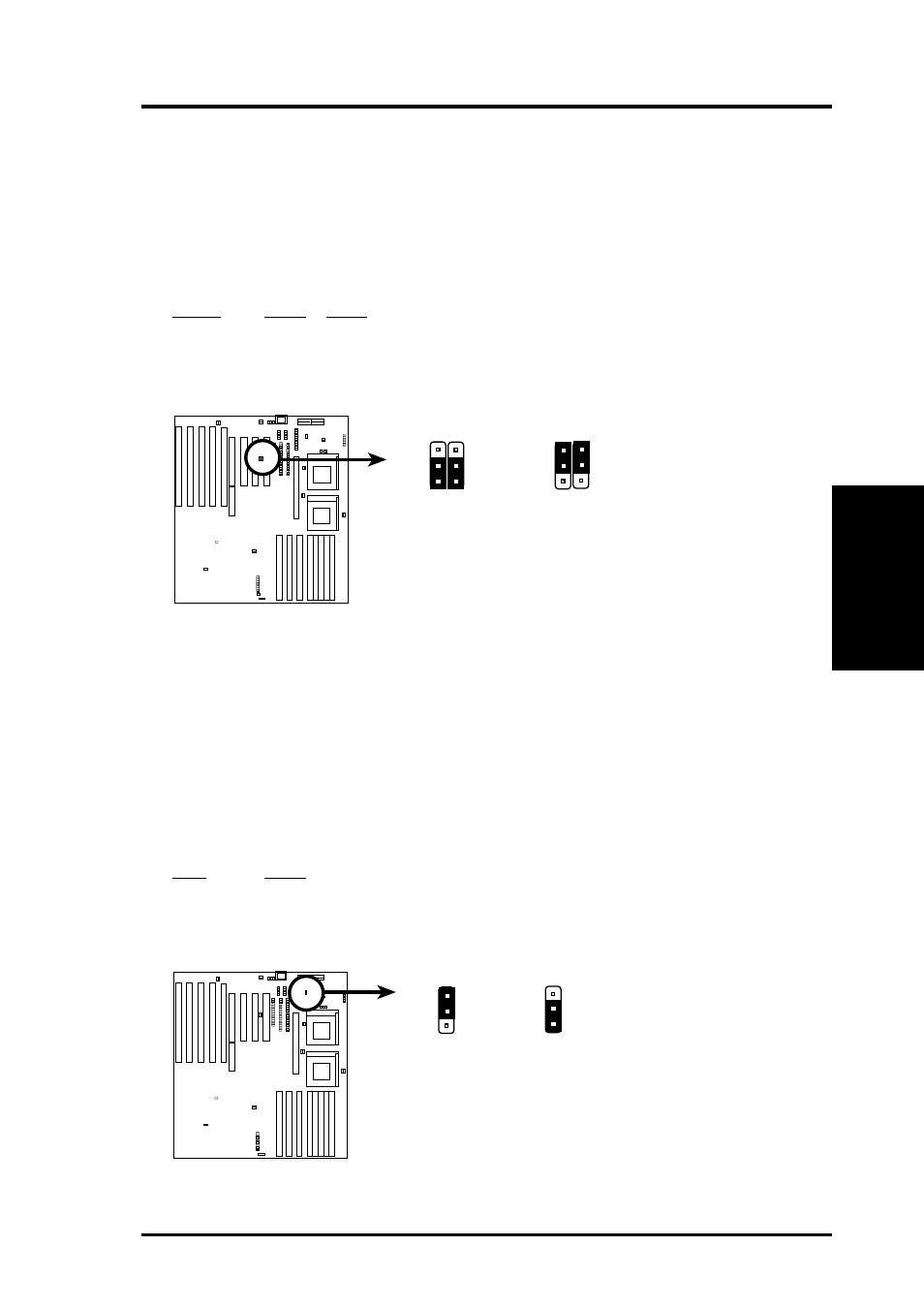

11. PCI Slot 1 Mode Selection (JP37, 38)
By default, the onboard IDE uses Programmable I/O (PIO) Mode and PCI Slot
1 uses BUS Master Mode so that BUS Master expansion cards on PCI Slot 1
can be used. If you want the onboard IDE to use BUS Master mode and are not
planning to use a BUS Master card on PCI 1, then you may
select Slave
mode for PCI 1.
PCI 1 JP38 JP37
Master [2-3] [2-3] (default)
Slave [1-2] [1-2]
PCI Slot 1 Mode Select (BUS Master / Slave)
PCI 1 Master (Default) PCI 1 Slave
1
2
3
JP38
1
2
3
JP38 JP37 JP37
12. Total Level 2 Cache Size Setting (JP39)
There is no level 2 cache onboard, you can upgrade using ASUS Pipelined Burst
Cache Module Rev 1.6 with TAG SRAM for either 256KB or 512KB cache
size.
IMPORTANT: See page 16 "External Cache" for information concerning
compatible cache types and installation.
Size JP39
512KB [1-2] (Default)
256KB [2-3]
Total L2 Cache Size Setting (256KB / 512KB)
512KB (Default)
1
2
3
JP39
1
2
3
JP39
256KB
(DRAM Memory)
