III. INSTALLATION

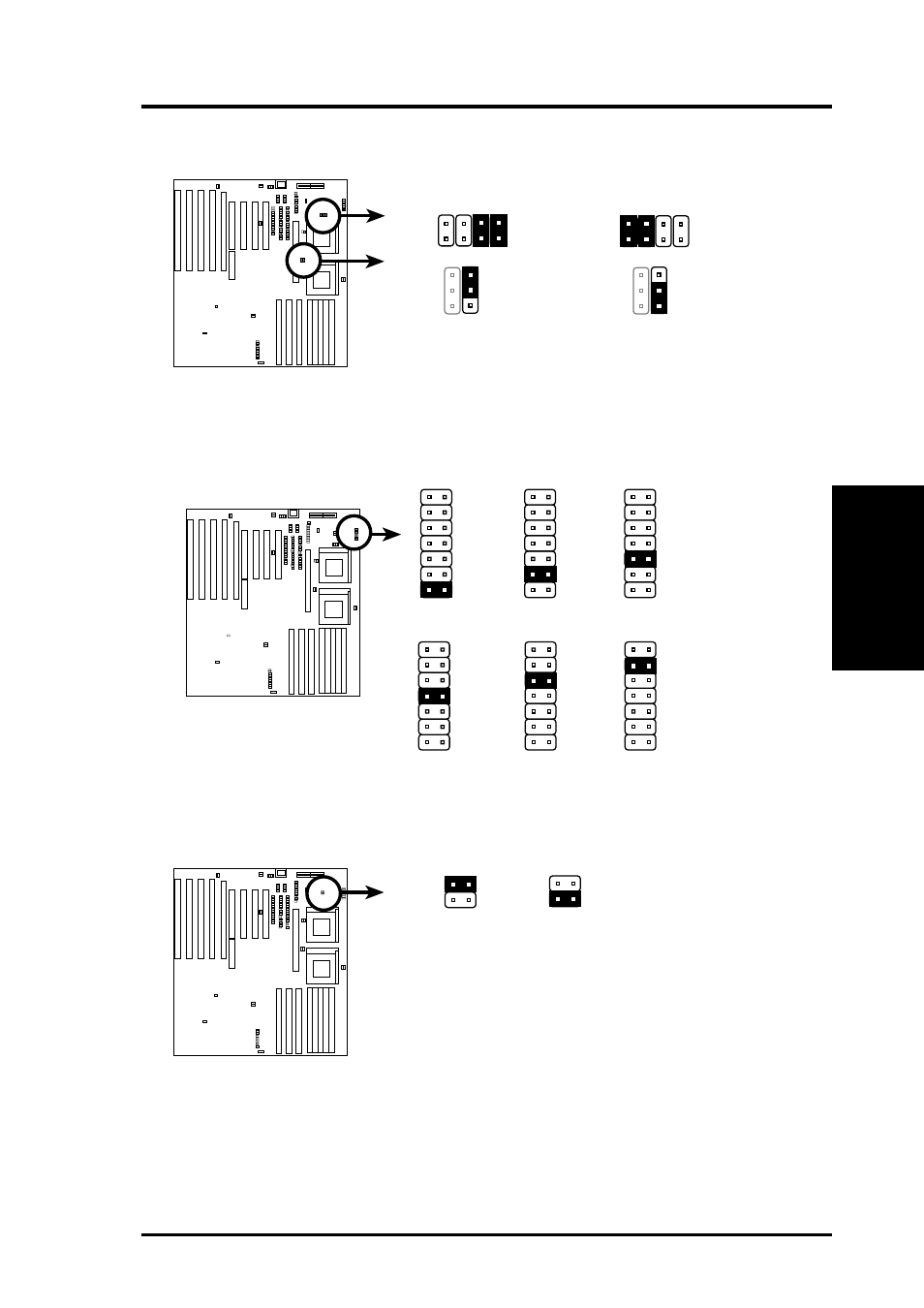

3. Voltage Type (JP9, 10, 11, 12, 17)
Processor Type (Single Power Plane / Split Power Plane)
Split Power Plane
(Intel P55C)
1
2
3
JP17
JP12 JP9 JP10 JP1
1
Single Power Plane (Default)
(Intel P54C)
JP12 JP9 JP10 JP1
1
1
2
3
JP17
4. Vcore (JP5, 6, 7, 8, 19, 20, 21)
JP19
JP20
JP21
JP6
JP7
JP8
JP5
Split 2.7V Split 2.88V
JP19
JP20
JP21
JP6
JP7
JP8
JP5
Split 2.5V
JP19
JP20
JP21
JP6
JP7
JP8
JP5
Split 2.8V
JP19
JP20
JP21
JP6
JP7
JP8
JP5
VRE 3.4V-3.6V
JP19
JP20
JP21
JP6
JP7
JP8
JP5
Voltage Select for Vcore
JP19
JP20
JP21
JP6
JP7
JP8
JP5
STD 3.3V-3.465V
(Default)
5. Vio (JP2, 3)
Voltage Selection for Vio (STD / VRE)
STD 3.3V - 3.465V
(Default) VRE 3.4V - 3.6V
JP3
JP2 JP3
JP2
(Jumpers)
