17
9.2 REMOTE TEST & HUSH PLATE:
9. 9V TERMINAL AND REMOTE TEST & HUSH
This alarm has the ability to be connected to a Remote Test & Hush Plate(LIFTHP)
(optional accessory, sold separately). The diagram below shows a sample of the wiring
connection required for the Remote Test and Hush Plate. In order for this alarm to op-
erate properly with the LIFTHP, a Remote Test & Hush card (LIFTHC) is required for
each alarm in the interconnected system. See the owners manuals for the LIFTHP and
LIFTHC for complete operation and instructions.

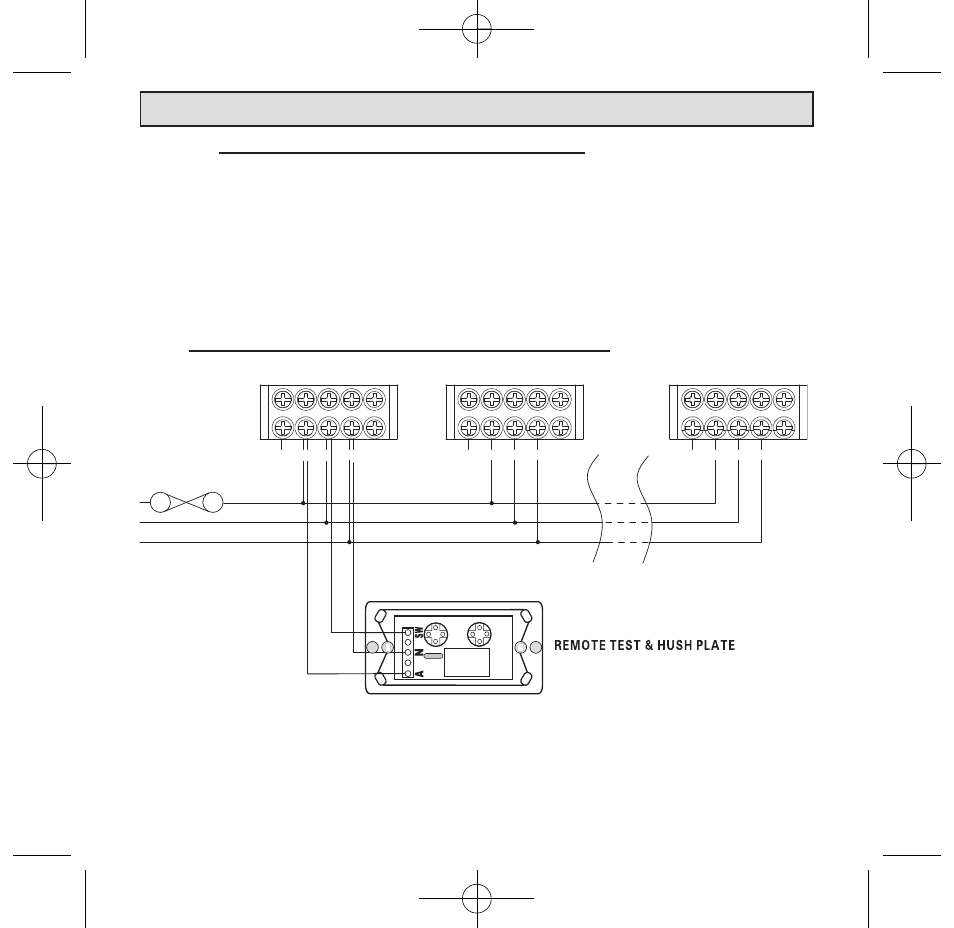

THE WIRING BETWEEN LIF5800 AND LIFTHP
1
LOOP
9V A SW N
24
SW
LOOP
9V N A SW
2
A 9V
LOOP
N
FUSE ON
CIRCUIT
BREAKER
