7. OPERATION, TESTING AND MAINTENANCE
7.1 Operation:
7.1.1 The smoke alarm is operational once all wires are properly connected, a fresh
battery is installed (LIF5800), The smoke alarm is correctly installed on the
mounting base and the alarm has been tested.
7.1.2 There are two LED indicators. Each of them has a unique function:
7.1.3 Red LED
7.1.3.A Stand-by condition: will flash once approximately every 32 seconds to
indicate unit is functioning properly.
7.1.3.B For LIF5800,the red LED will flash when unit goes into alarm, indicating
that products of combustion have been detected. The flashing Red LED
and pulsating alarm will continue until the air is cleared. For intercon-
nected units, the originating smoke alarm Red LED will flash every 0.5
second. All other units will sound but the Red LED will not flash.
7.1.3.C For LIF5800RL, the red LED will be on solid state when the unit goes
into alarm, indicating that products of combustion have been detected.
Red LED will latch on solid state for about 5 minutes after the alarm stop.
After the 5 minutes the red LED will diminish. For interconnected units,
the originating smoke alarm Red LED will stay on. All other units will
sound but Red Led will not be on or flash.
6. INSTALLATION

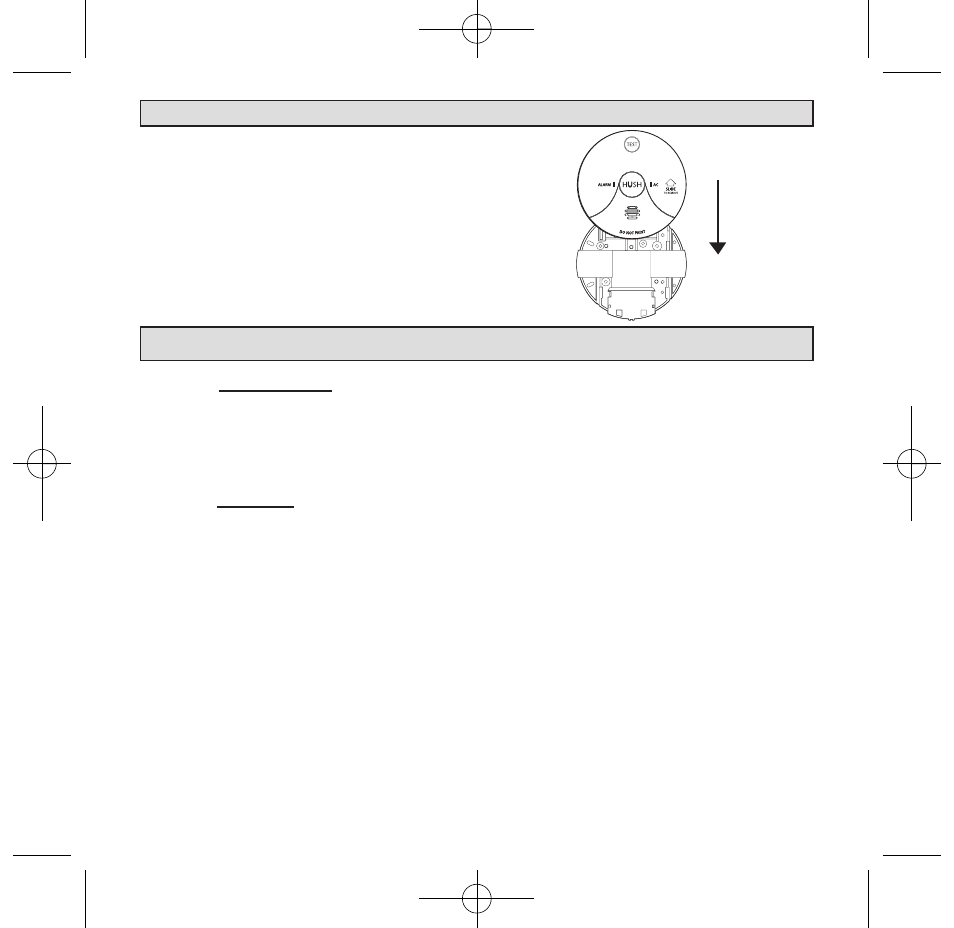

Figure 3: Wall mounting smoke alarm
For wall mounting,the connector must
be at the bottom. Ensure“ SLIDE TO
REMOVE ” arrow on the cover is
pointing upwards (vertical) as shown.
