6. INSTALLATION
Australia Patent
S/N 2008200075
Australia Patent
S/N 2008200075

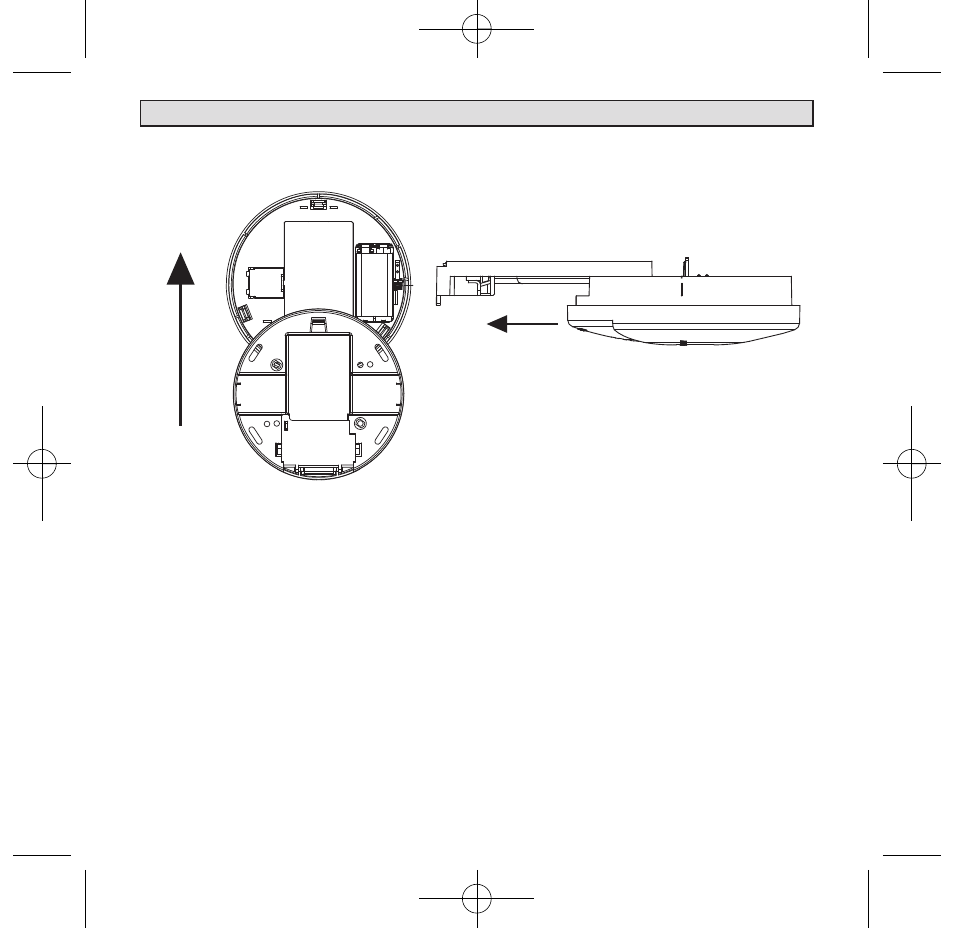

Figure 1:To remove smoke alarm
Slide smoke alarm carefully
away from the base plate to
remove the smoke alarm.
Figure 2: To connect smoke alarm
1 Place smoke alarm in line with the
base plate.
2 Push smoke alarm towards connec-
tor (A). Ensure the smoke alarm
slides fully into the connector.
3 Green AC Power light will come
on when connected to mains.
A
