19
Connection

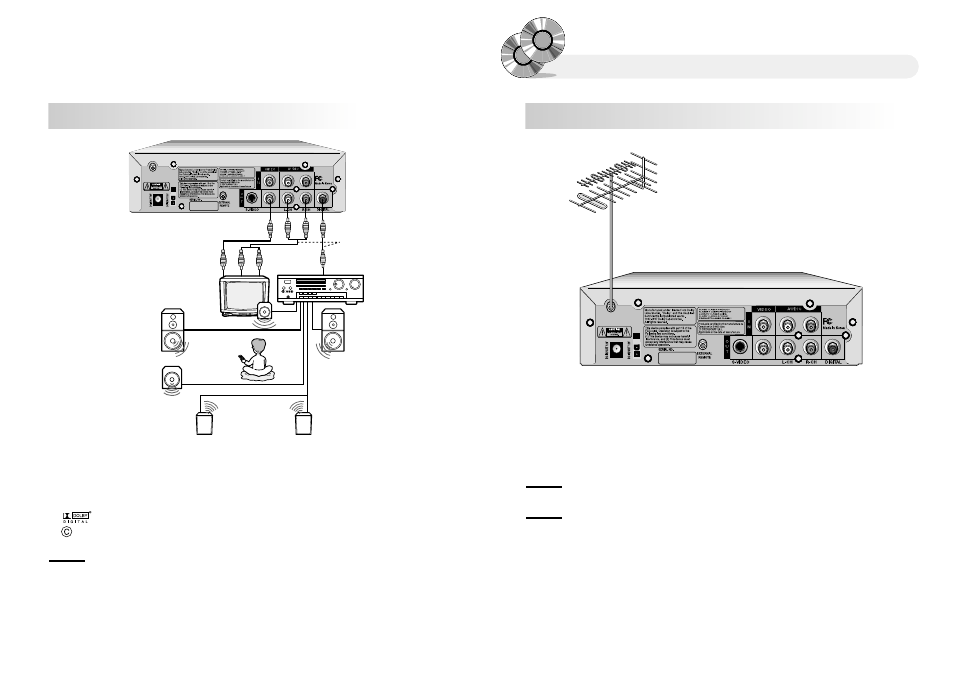

Connecting TV antenna / TV cable
1. Prepare TV antenna or TV cable to see TV.
2. Connect TV antenna or TV cable to antenna jack on the back of your DVD Player.
C
C
a
a
u
u
t
t
i
i
o
o
n
n
�
When you connect TV antenna to DVD Player, be sure to turn off the power and unplug all of
the equipment from the power souce before making any connections.
W
W
a
a
r
r
n
n
i
i
n
n
g
g
�
Choose Air channel or Cable channel by pressing menu key.
�
Air channel range : 2ch~69ch
�
Cable channel range : 1ch~125ch
�
There is Volume control when watching the tuner
18
Connecting to a Dolby Digital Amp
●
DVD disc must be recorded in Dolby Digtal.
●
You must have Dolby Digital decoder and 6 channel Amp, 5 speakers and 1 bass woofer.
●
You must set Digital Out of AC3 at "Raw" in Audio Setting
●
This product is manufactured by technical co-operation with Dolby Laboratories
this symbol and trademark are reserved for Dolby Laboratories.
Dolby Laboratories Inc. All rights Reserved.
C
C
a
a
u
u
t
t
i
i
o
o
n
n
�
When connecting an amplifier equipped with Dolby Digital, connect it in the same way as
shown above
�
When connecting it, refer to the Audio system's manual.
�
Be sure to adjust the receiver's volume to a moderate listening level. Otherwise, the speakers
may be damaged by high volume levels.
�
Turn off the receiver before you connect or disconnect the DVD player's power cord.
If you leave the receiver power on, the speakers may be damaged.
Description
Video Cable
Center Speaker
Sub
Speaker
Front
Speaker
(left)
Rear Speaker
(left surround)
Front
Speaker
(right)
Rear Speaker
(right surround)
Audio
Cable
75 ohm Coaxial Cable
or
To digital audio output
Receiver equipped with a
Dolby digital decoder
Rear Panel
