SYSTEM STATUS - Link Status (2)
5.3.2 Data Monitor

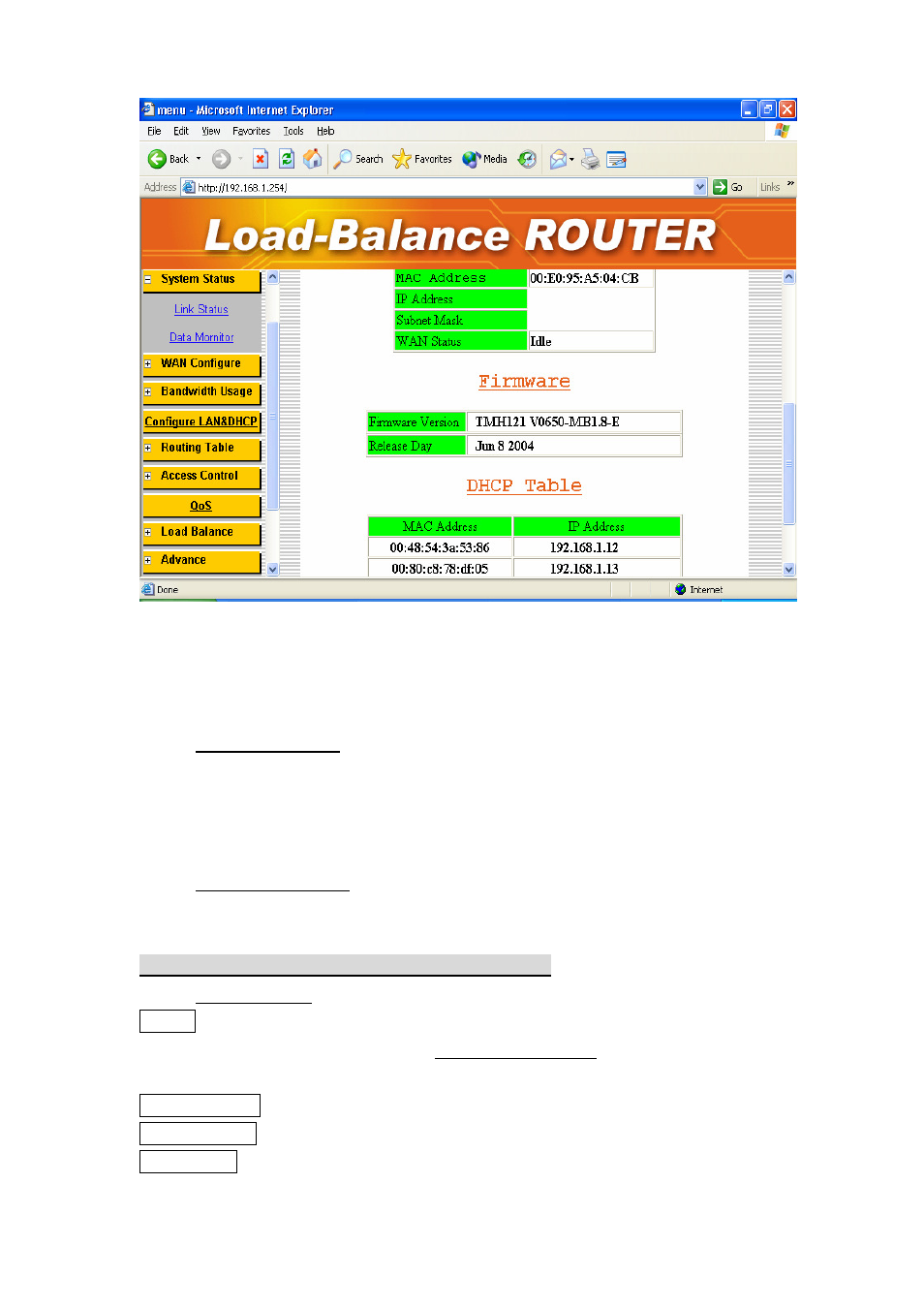

Differ with Link Status window, Data Monitor window provide detail packet
transfer status, it include 2 kinds of data
Real Time Data happen in each WAN port
Current Session
TCP Session:
UDP Session:
ICMP Session:
Total Session:
Current Bandwidth
Download Speed:
Upload Speed:
Accumulated packet happen in each WAN port
Data Counter
Usage: % of total packet send through each WAN port
Example: WAN1 usage% = WAN1 total packets_______ %
(WAN1+WAN2) total packets
Byte Transmit: ……remark (A)
Byte Receive: …….remark (A)
Total Bytes: Total packets transfer by each WAN port ……remark (A)
