Section 2 : Connecting Mechanism
The PROLiNK ® PPL1500P Powerline AV Adapter supports up to 600Mbps data rate. With this high speed
connection rate, the PPL1500P allows you to setup a high speed home network by using your home existing
electrical wiring. Simply plug the PPL1500P into an ordinary power outlet to extend your Cable/xDSL broadband
connection or existing LAN network to any other electrical outlet in any rooms of your house.
Take notes that the PROLiNK ® PPL1500P Powerline AV Adapter works in pairs. You need to plug one PPL1500P
into a power outlet for each computer (connect to the computer LAN port) you want to connect (Network access);
you will also need another PPL1500P connects to your Cable/xDSL broadband (Ethernet / LAN port) in order to
extend your broadband connection or Internet surfing.
Section below describes the PROLiNK ® PPL1500P Powerline AV Adapter’s LED indicators, physical interface and
hardware connection mechanism.

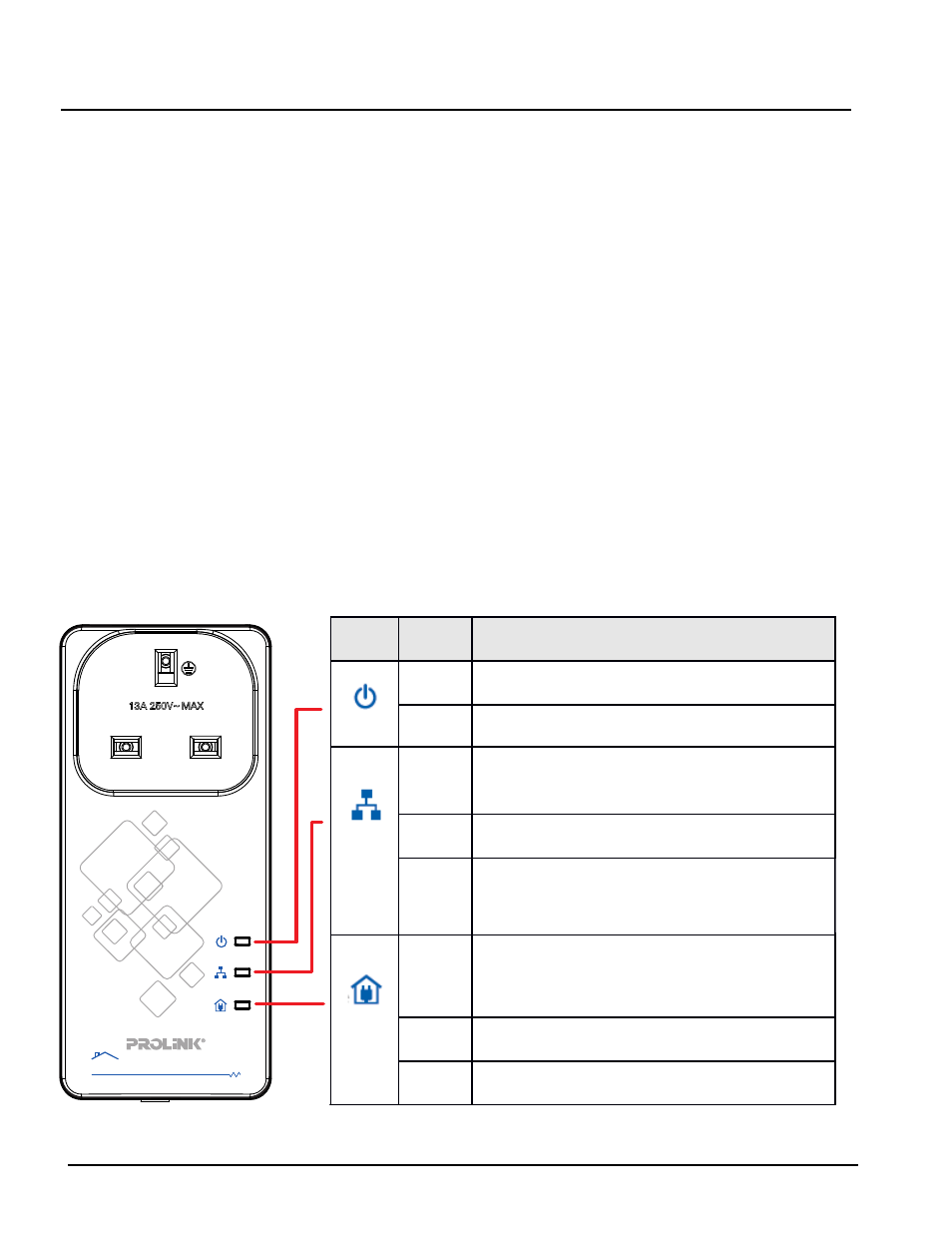

2.1 LED Indicators
The LED indicator displays information about the device’s status.
Label Status Description
Gigabit
LAN
ON
The LAN port is ready to receiving / transmitting data.
Green : In 1000Mbps mode
Orange : In 100Mbps mode
Red : In 10Mbps mode
OFF The LAN port is not connected or not power on
Blinking The LAN port is receiving/transmitting data
Powerline
ON
Another powerline Adapter is detected on the same powerline
network
Green : High-speed
Orange : Medium speed
Red : Low speed
OFF
Did not detect any other powerline Adapter on the same
powerline network
Blinking The data is received or transmitted via Powerline
Power
ON The PPL1500P is power on
OFF The PPL1500P is not power on
