2.4 Hardware Connection – Internet
This section describes how to connect the PROLiNK® PPL1500P Powerline AV Adapter into your existing
ADSL broadband connection via ADSL Ethernet/LAN port. Follow the procedures describe below to connect
the PPL1500P to your ADSL broadband connection:
a. Power off your PC or laptop computer.
b. Connect the provided Ethernet (RJ-45) network cable to the PPL1500P Gigabit LAN port.
c. Connect the other end of the Ethernet (RJ-45) network cable to an available Ethernet/LAN port of
your ADSL broadband Router.
d. Plug the PPL1500P into a wall socket next to the computer.
e. Turn on your computer.
f. Check and confirm that the Power, Powerline and LAN LEDs on the PPL1500P are ON.

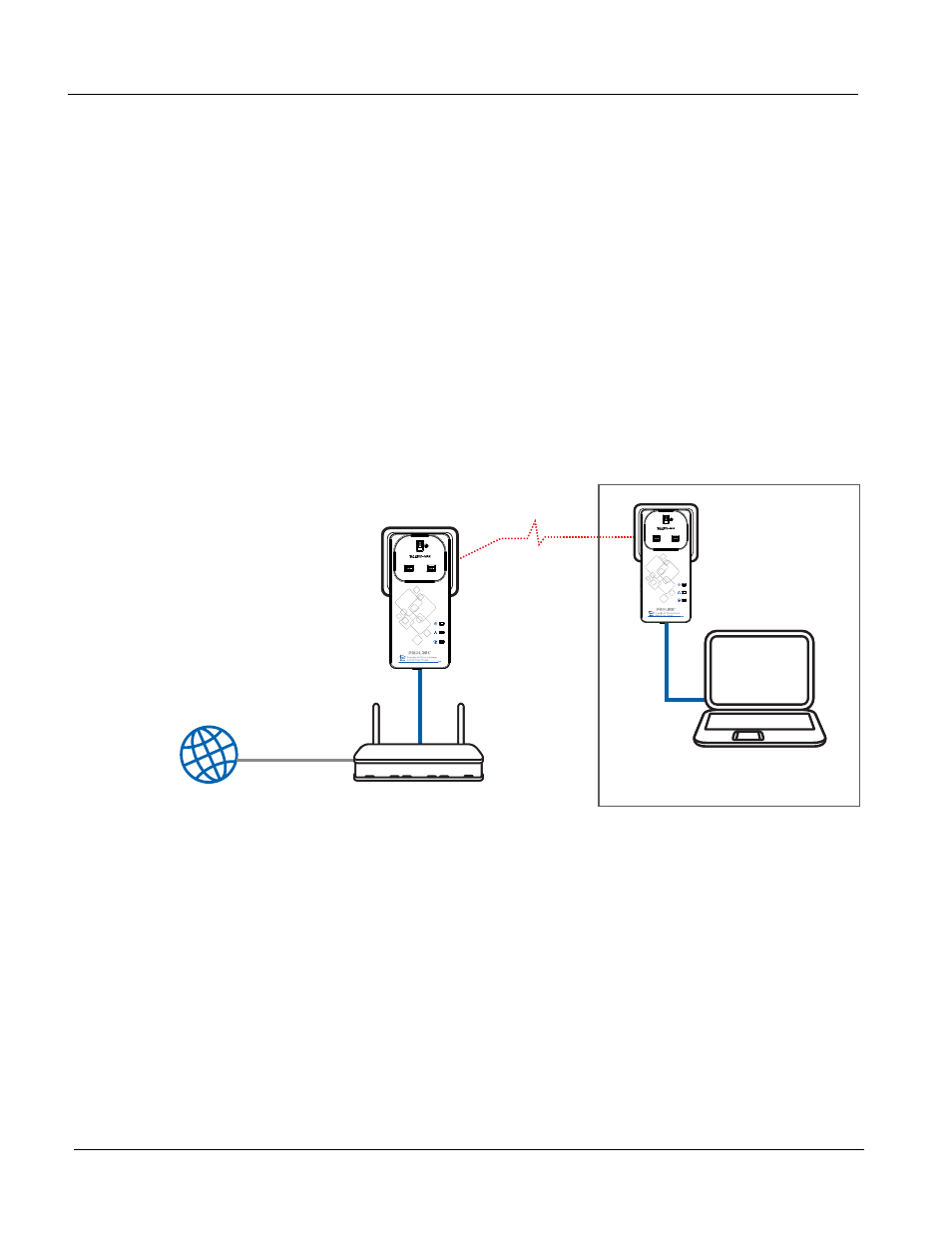

The hardware connection mechanism is shown below:
Remark:
DO NOT connect the Powerline AV Adapter to an extension lead, power strip, extension cord, surge
protector as this may degrade the network performance.
Internet
ADSL Router
ADSL
RJ45
RJ45
Laptop
