Parts, Powerhook guide track components – Poweramp POWERHOOK SERIES User Manual
Page 53
Item
Quantity
Part Number
Description
A
1
0521-0123
Powerhook Cylinder Only
B
1
7054-0001
Powerhook Arm Weldment
C
1
7054-0010
Powerhook Standard length
PARTS
Item
Quantity
Part Number
Description
A
1
0521-0143
Guide Track - Aluminum
B
1
0521-0144
Cable Assembly - Powerhook - Standard
C
1
0521-0173
Sensor Mounting Bracket
D
7
2101-0196
Nylon Lock Nut, 10-32 UNF
E
5
2101-0202
Round Head Machine Screw, 10-32 UNF x 1/2, Stainless Steel
F
2
2101-0203
Round Head Machine Screw, 10-32 UNF x 3/4, Stainless Steel
A-G
1
0524-0075
Powerhook Guide Track Assembly Complete
H
1
0521-0146
Guide Track - Pig Tail 46” Long
I
1
0521-0147
Guide Track - Pig Tail 94” Long
*Provide dock leveler and/or PowerHook serial number when calling or faxing orders.

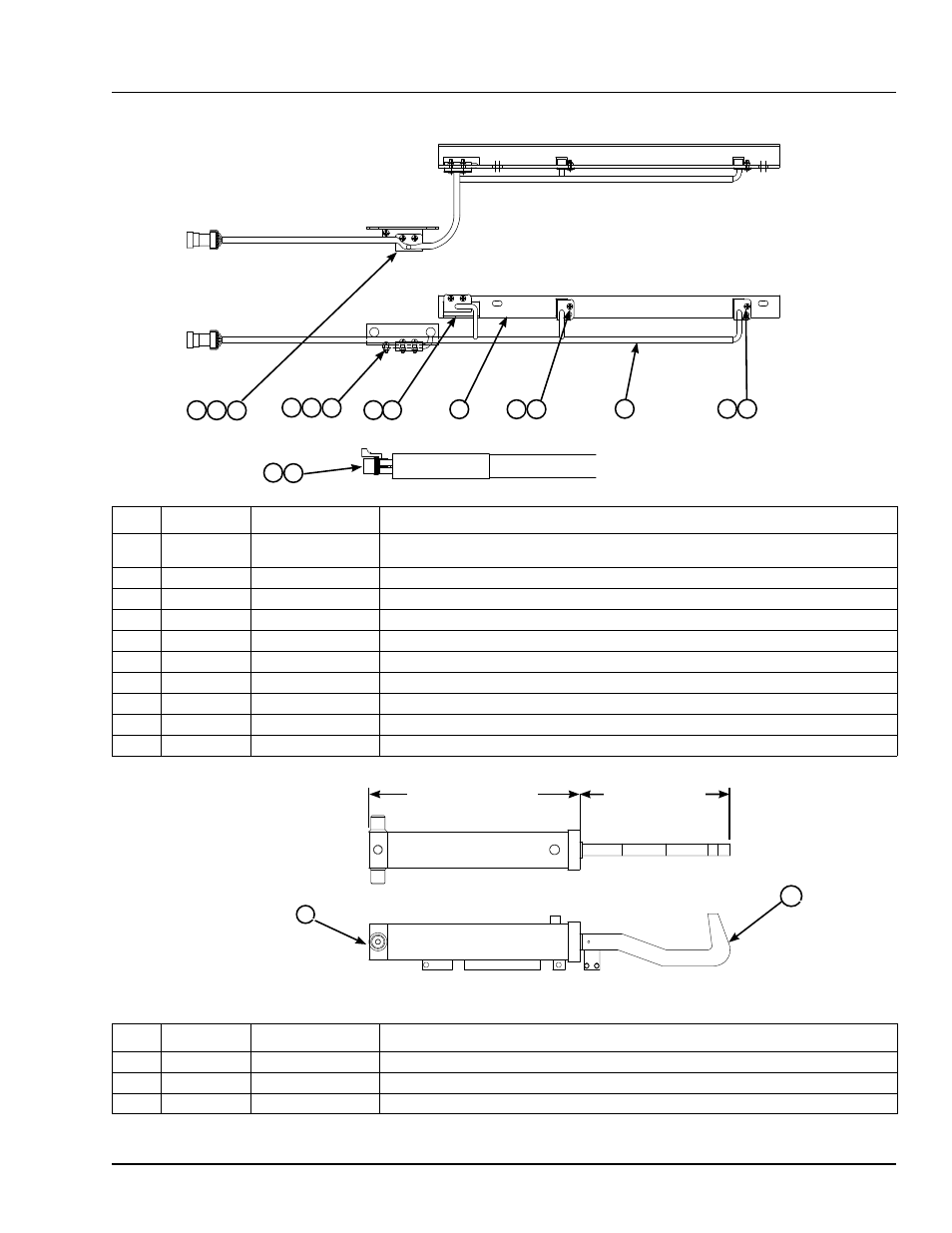

Powerhook Guide Track Components
A
B
26-1/4”
Standard Length
18-3/4”
Standard length
#4
#5
#6
E G
D
D E
C
B
E
D
E
D
A
F
D
I
H
4111-0010 — Nov 2010
51
#3
