39
Keyboard Installation and Operation
Chapter 5: Installer Functions
This chapter provides step-by-step instructions for ADCC1100 keyboard installer
functions. Installer operations require administrator privileges which are controlled by
the smart card.
Setting the Baud Rate
1. Press the PROGRAM MODE tab key.
2. Press the NEXT soft key.
3. Press the BAUD soft key to cycle through the available baud rate settings: 1200,
2400, 4800, 9600, 19200, and 38400. The default keyboard setting is 1200. The
BAUD soft key icon will change to reflect the selected baud rate as the key is
pressed.
4. Press the OPERATOR tab key to exit program mode.
Enabling Lens Macro Keys
This function will assign the primary lens controls (open/close iris, focus near/far) to the
four right hand macro keys on macro page one. This provides a convenient one-
handed operation of joystick and lens functions whilst providing the operator quick
access to macro functions.
To enable the lens macros:
1. Press the PROGRAM MODE tab key.
2. Press the NEXT soft key.
3. Press the LENS OFF soft key. The icon will change to LENS ON.
4. Exit program mode by pressing the OPERATOR tab key.
If the MACROS tab key is now pressed, a keyboard display similar to figure 5.1 should
be seen.
Previous Next Operator
Enter
Monitor Camera Macro
One
Page One
Macro
Two
Macro
Three
Macro
Four
Open Iris
Close Iris
Focus Far
Focus Near

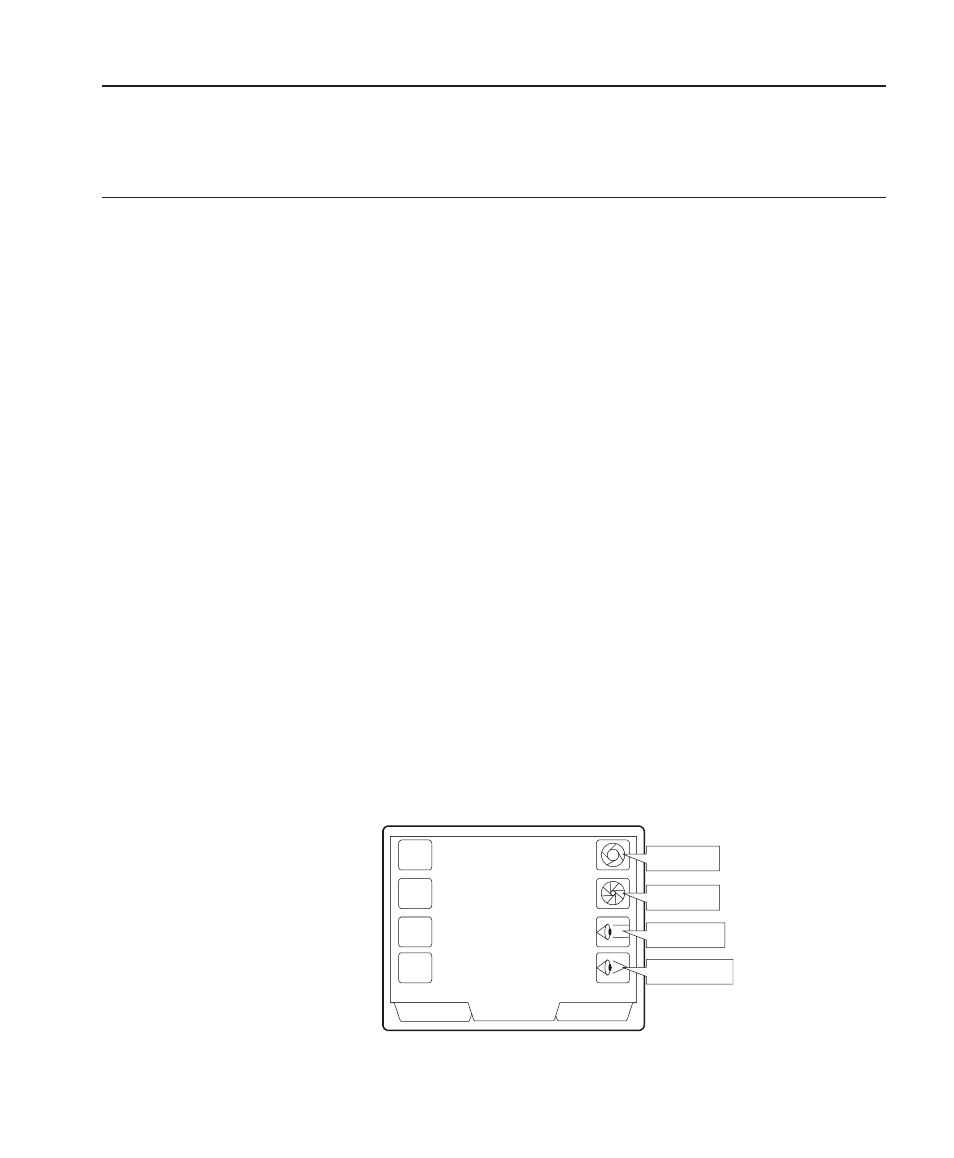

Figure 5.1: Lens Macros Enabled on Macro Page One
