Keyboard Installation and Operation
Navigating Dome Camera Menus
The ADCC1100 keyboard can be used to navigate through the dome camera's menu
system, and to change parameters for the dome camera.
To navigate the dome camera menu:
• Use joystick up/down movements to choose menu items and menu parameters.
• Use joystick clockwise/counterclockwise movements to change selected
parameters.
• Press ENTER soft key to select menu items or parameters.
To exit a dome camera menu:
1. Use the joystick to select QUIT WITHOUT SAVING - this will exit the dome menu
without saving any changes.
2. Use the joystick to select EXIT AND SAVE CHANGES - this will save any
changes and exit the dome menu.
3. Press the SAVE AND EXIT soft key.
7HF8Á6HG9B@TQ4SBHGÁF8GT
64F8Q4Á9TG6SBHGR
4E4QFR4Q84RAHF8IQ8R8SRIY
HGÁR6Q88GÁS8WSÁ7BRIE4X
E4G@T4@8ÁÁI4RRVHQ7
7HF8ÁBG9HQF4SBHG
Q8R8SÁSHÁ946SHQXÁR8SSBG@R
PTBSÁVBSAHTSÁR4UBG@
8WBSÁ4G7ÁR4U8Á6A4G@8R
I4GSBESYHHFRXG6ÁHISR
I4GSBESYHHFRXG6ÁHISR
Q8R8SÁSHÁ946SHQXÁR8SSBG@R
8WBS
IQHIHQSBHG4EÁ9EBI
RSÁYHHFÁRSHIÁW "
F4WÁSHS4EÁYHHFÁW &
EBG8ÁEH6D HG
H99
Twist to change
selected parameter
Move cursor
up or down

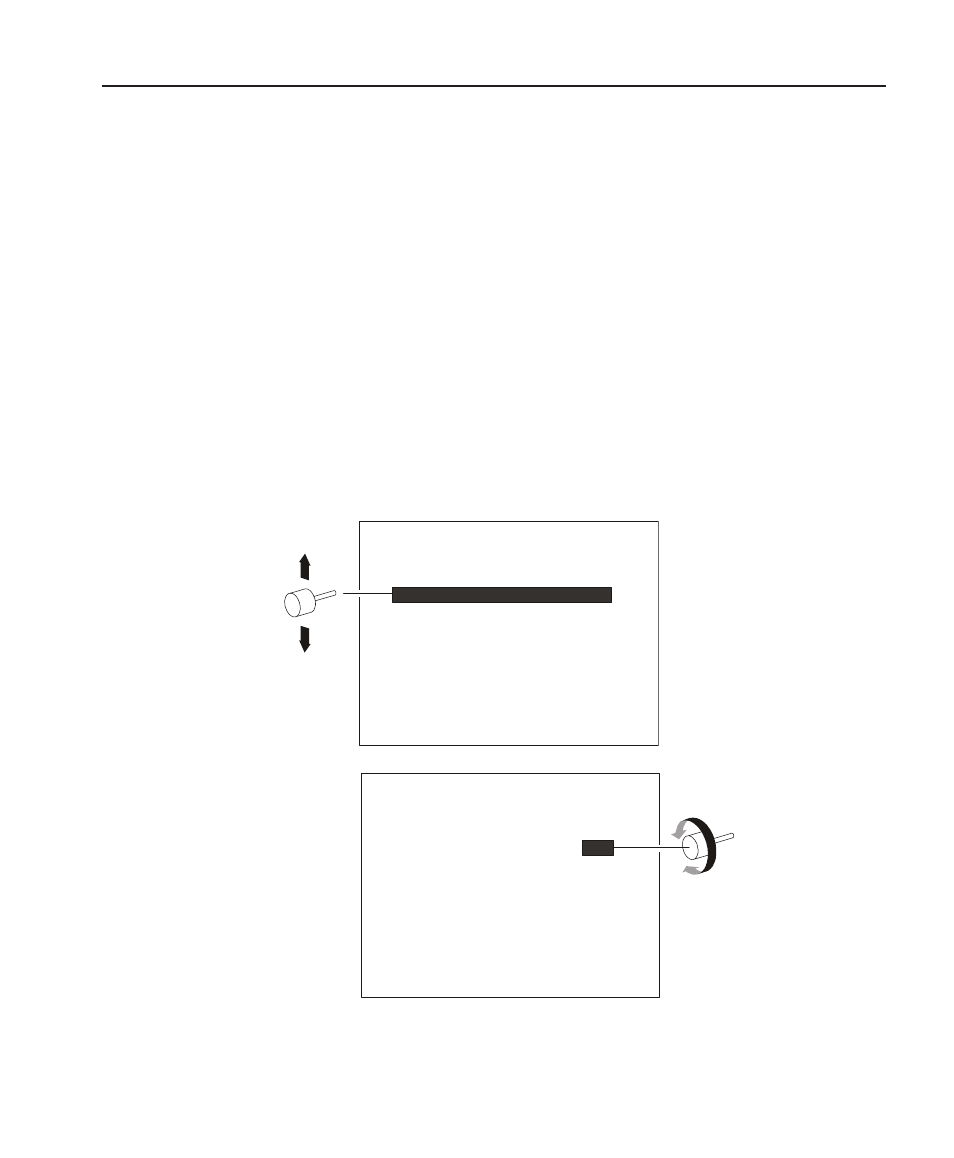

Figure 4.1: Dome Menu Navigation
