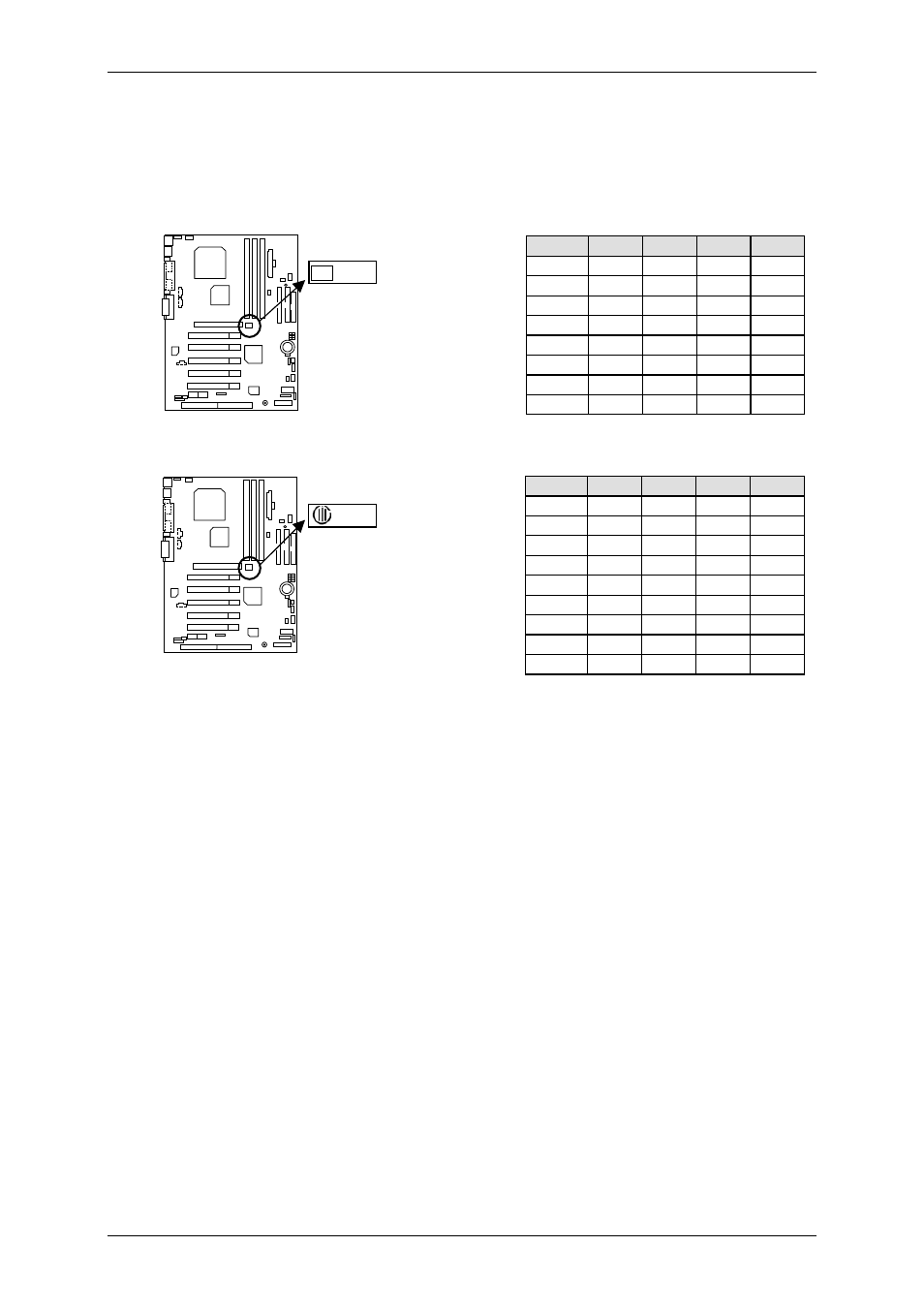

CPU Speed Setup
The system bus speed is selectable at 100~133MHz. The user can select the system bus speed by DIP switch
SW1.
Set System Bus Speed
z
If your clock generator (in Motherboard) is ICS 9248-141. You can follow the below reference.
SW1: (ICS 9248-141) O : ON, X : OFF
FSB 1 2 3 4
95 O O X O
Ë 100 X O X X
105 X O O X
110 O X O X
113 X X O O
115 X X X O
117 X X O X
133 X X X X
z
If your clock generator (in Motherboard) is ICW W230H. You can follow the below reference.
SW1: (ICW W230H) O : ON, X : OFF
FSB 1 2 3 4
95 O O X X
Ë 100 0 X X X
102 0 0 0 X
104 X X X 0
106 0 X X 0
108 0 0 X 0
110 0 X 0 0
112 0 0 0 0
133 0 X 0 X
Ë The FSB Speed of the VIA KT133 is 100MHz.
0 AMD CPU Heat Sink Installation:
Beware: Please check that the heat sink is in good contact with the CPU before you turn on your system.
The poor contact will cause over heat, and might cause damage to your processor.
9248-141 ICS
W230H
