12
Installation
The extractor hood is designed to be
fitted to the kitchen ceiling or a rigid
suspended ceiling.
ṇ
Ensure that the minimum distance
between hotplate and extractor hood is
550 mm for electric hotplates and 650 mm
for gas hotplates.
1. Mark the centre point of the extractor
hood on the ceiling.
2. Using the template, mark screw
positions on the ceiling. Fig. 5.
3. Drill the 8 mm l fixing holes and insert
the wall plugs into the holes. Fig. 5.
4. Screw on the support frame. Fig. 5.
5. Connect the pipes.
Remove the protective film from the
upper part of the flue.
ṇ
Attention: Do not damage the
sensitive stainless-steel surfaces.
Allow the upper flue section to run into
the lower one. Fig. 6.
6. Install the extractor hood in the support
frame and screw into position at the
required height. Fig. 6.
7. Connect the power.
8. Push up the upper flue section and
screw into position.
Changing over from exhaust-
air to recirculating mode

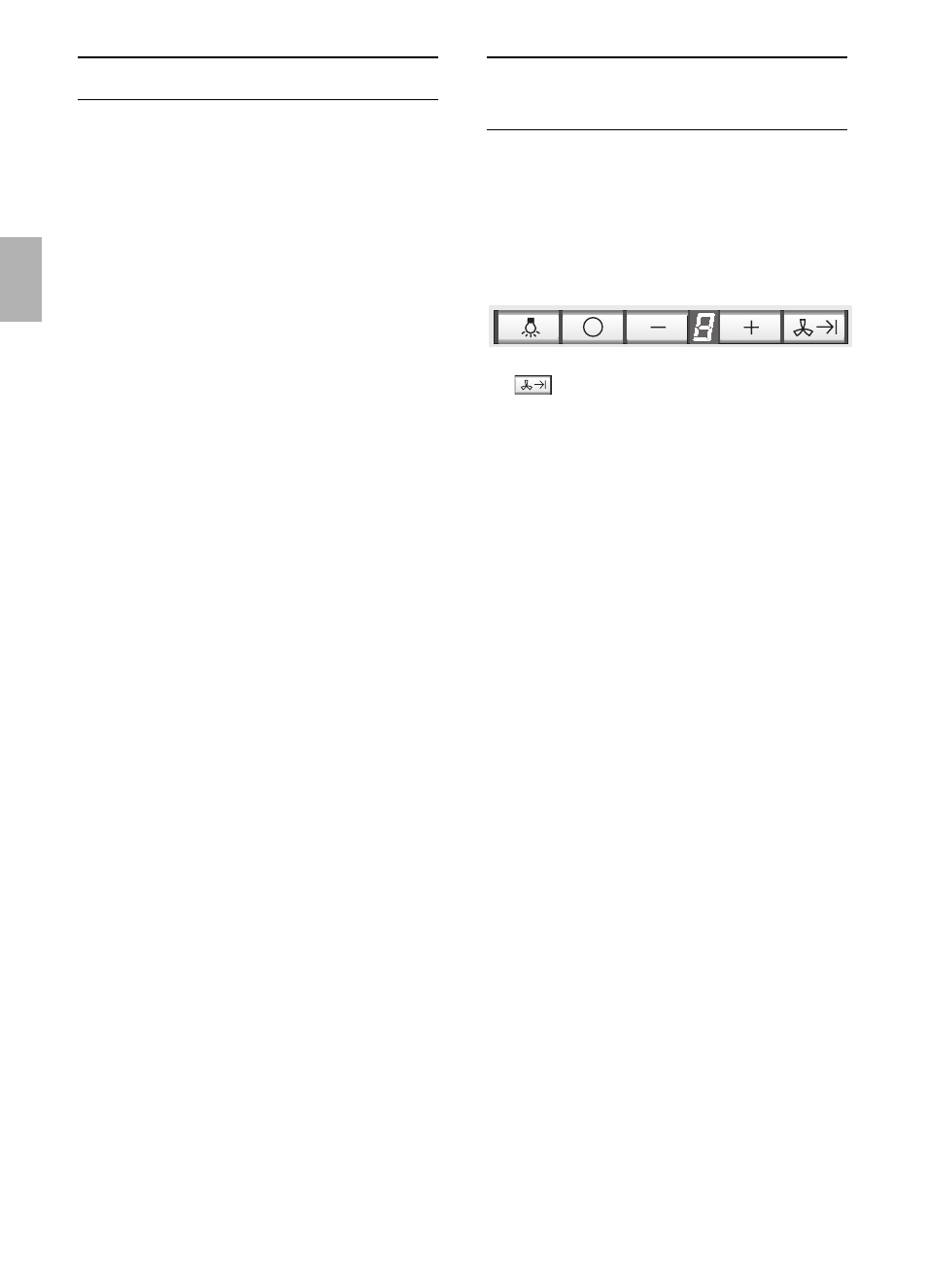

Changing the electronic control system
to recirculating mode:
❑ The standard factory setting is for
operation in exhaust-air mode.
❑ To change the mode, the extractor hood
must have been connected up and
should be switched off.
❑ Simultaneously press buttons 0 and
until ã comes on. Then release the
buttons.
❑
ã goes out shortly afterwards.
The electronic control system will then
have been set to recirculating mode.
❑ By repeating steps 1 and 2, you can
change the electronic control system
back to exhaust-air mode (
# in display).
