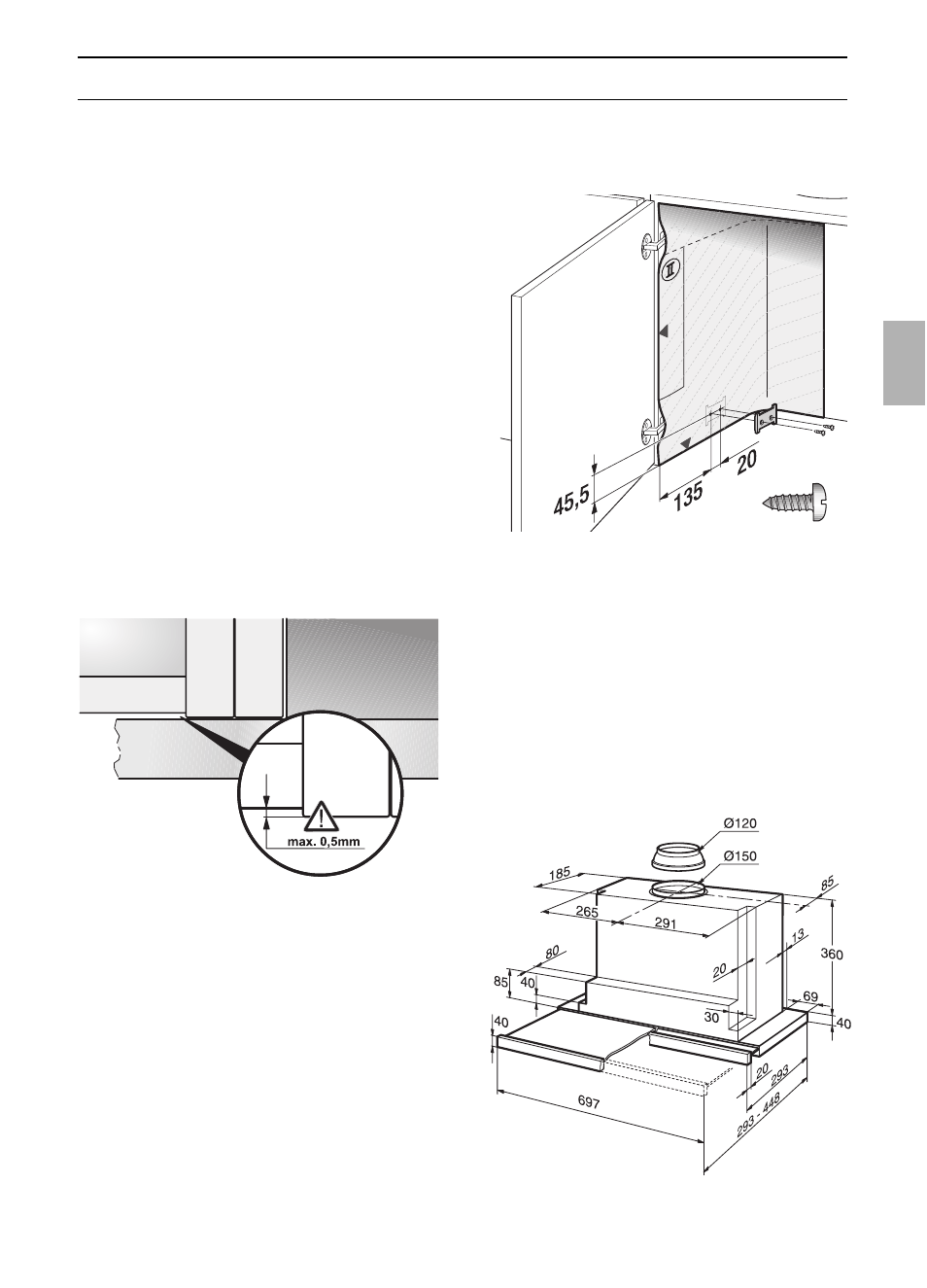

Preparing the wall cupboard
1. Mark two attachment points on both the
right and left inside faces of the cup-
board and make holes with a bradawl.
When you drill:
2 mm diameter – max. 10 mm in depth.
Use the enclosed template
O
II to mark
the attachment points.
2. Screw on both attachment plates.
3. Attach the door to the cupboard and
align.
ṇ
Observe the minimum distance
between hotplates and extractor hood!
Fig. 1.
This extractor hood is designed to be
installed in a wall cupboard with the follo-
wing dimensions:
width: 600 mm
depth: 293 to 350 mm
height: min. 435 mm.
If the cupboard is deeper than 293 mm,
the extractor hood can be moved back,
e.g. to put a spice rack in front of the
extractor hood.
To do this, place the template O
II further
back.
ṇ
Ensure that the cupboard is stable both
during and after installation, even if fitted at
the end of a row of kitchen units.
ṇ
Do not install the extractor hood at the
end of the kitchen line.
