Perrycraft Aventura Truck Bed Rails - Manual (Page 2)

#10x3/4”
Waxed Screws
#8 x 5/8” Screw
Nylon
Washer
Support Base
(A-R or A-L)
Side Rail
Neoprene Pad

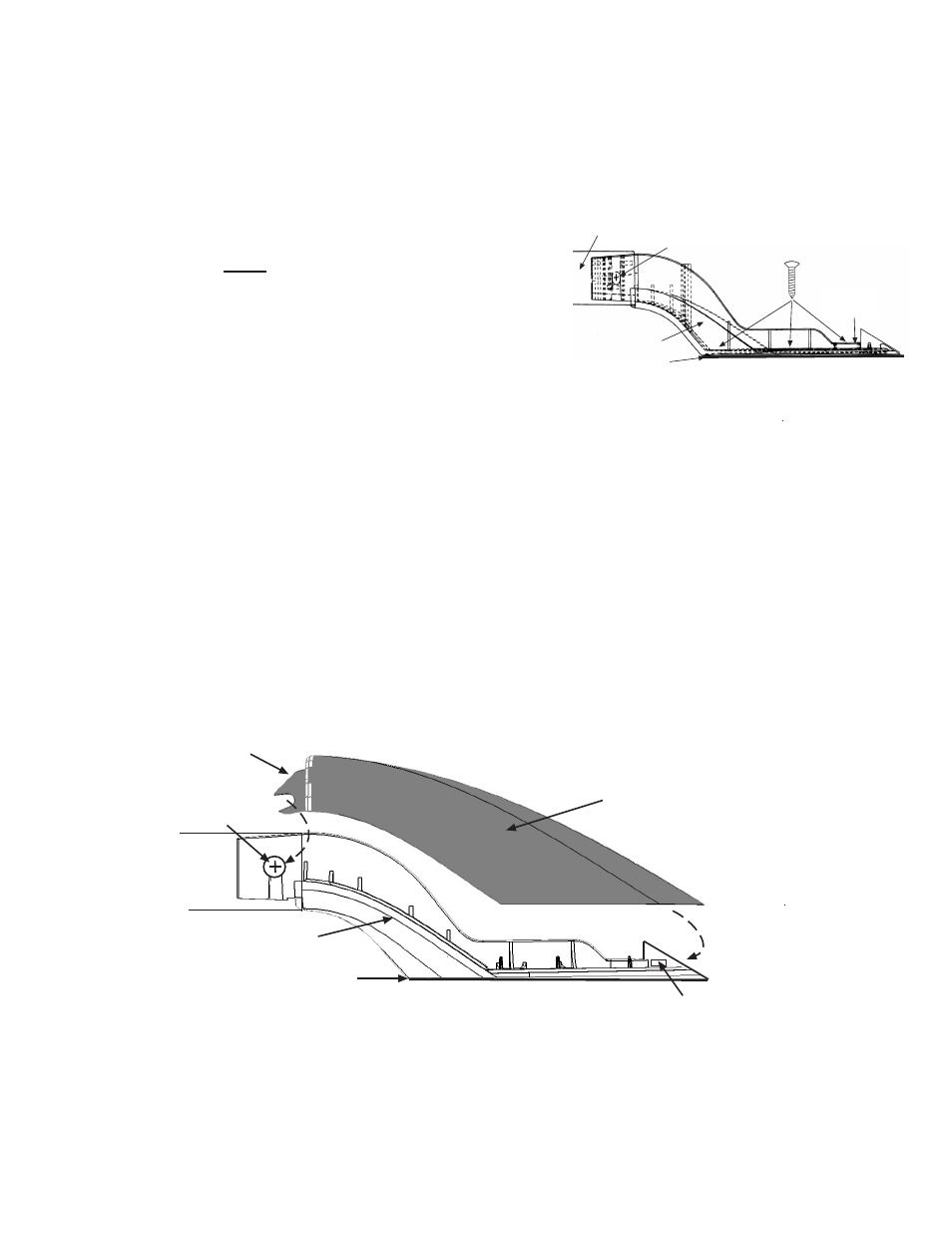

Slide vertical blade of cover into gap between base and wall of side
rail, insuring slot in blade seats around shank of screw. Rotate
opposite end of cover downward until it contacts the support base,
then apply moderate pressure at the end until cover snaps into tab
slots at end of base.
Support Cover
(mate A-L or A-R)
Support Base
(A-L or A-R)
Side
Rail
#8x5/8"
Screw
Neoprene Pad
IMPORTANT NOTE: This Roof Rail/Bed Rail Kit contains 4 Rail Supports with mating Right and Left
Bases and Covers. These components are identified by "A-L" or "A-R" molded on the top surface
of each Base and inside surface of each Cover. When installing Covers, insure that Covers are
mated with appropriate Bases.
Mating Tab Slot
Vertical
Blade
1/4” S. Steel
Flat Washer
I N AV- R R L ( P a g e 2 o f 2 ) 1 2 0 9 1 8
4) Place assembled rails in desired position on vehicle roof. If center posts are included in the unit, the post
should be positioned approximately midway along the length of the rails. Mark locations of all mounting
holes. Remove rails from roof.
5) Lightly center punch each marked mounting hole location. Drill fastener pilot holes using 1/8” drill bit taking
care not to allow drill bit to penetrate vehicle headliner. Clear all metal drill chips from roof panel and apply
a coat of primer or rust inhibitor to the bare metal edges of each hole.
6) Reposition rails on roof panel and install using the #10 x
3/4” waxed screws. NOTE: At outer most hole in each
end support, use a 1/4” Stainless Steel flat washer (included)
under head of each screw. Note: use #10 x 1” Oval Head
waxed screws to secure center posts as shown in illustration
on Page 1.
7) Loosen the #8 x 5/8 support-to-rail screws approximately 2-3 complete turns to allow installation of the
support covers.
8) Position a mating support cover (A-L cover to A-L support; A-R cover to A-R support) as shown in diagram
below with the vertical blade of the cover sliding into the gap between the side wall of the end support tongue
and the center wall of the rail extrusion. With blade correctly inserted/aligned at the end of rail, rotate the
cover downward until it contacts the support base, and apply moderate downward pressure at the tapered
end of the cover until the lock tabs at the end of the cover snap into the mating tab slots at the end of
the support base.
9) With covers properly installed, securely tighten the four #8 x 5/8" support-to-rail screws while applying slight
pressure to the top of each cover to insure proper seating of the cover to the mating support base.
