Perrycraft HDS Drill-mount Bed Rails - Manual

Parts List Required Tools (not included)
Qty. Description Qty. Description
2 Bed Rails 1 Drill
4 Molded Gaskets 1 9/16” Wrench or Socket w/Ratchet
4 3/8” x 1 1/2” Bullet-point Studs 1 7/16” Drill Bit
4 3/8” Flat Washers
4 3/8” Lock Washers
4 9/16” Hex Nuts
visit our website at www.perrycraft.com
by
UNIVERSAL DRILL MOUNT
INSTALLATION INSTRUCTIONS
1. Before beginning the installation, please review these instructions carefully, insuring that all
necessary hardware is included. If any parts are missing, please contact Perrycraft, Inc
immediately.
2. Insert the 3/8” x 1 1/2” Bullet-point Studs into the ends of each bed rail.
3. Place bed rails on truck bed in the desired position. Use point of stud to mark position where
holes are to be drilled in top of bed.
4. Drill 7/16” hole in each marked position. Clean metal shavings from area around drilled hole,
and prime raw metal to inhibit corrosion from condensation.
5. Assemble as shown in Diagram below, insuring that hex nuts are tightened securely.
6. Periodically check hex nuts to insure they remain tight (nuts may loosen from vibration).
Perrycraft, Inc. 2804 Griffith Road Winston-Salem, NC 27103 800-777-7081
Stainless Steel Tubular Rails
INHDS-DRMT 121108
CLEANING AND MAINTENANCE INSTRUCTIONS: To maintain and care for this product, please keep
it clean and do not use abrasive cleaners or polish waxes. Automotive waxes such as pure Carnuba
are recommended to remove scratches.

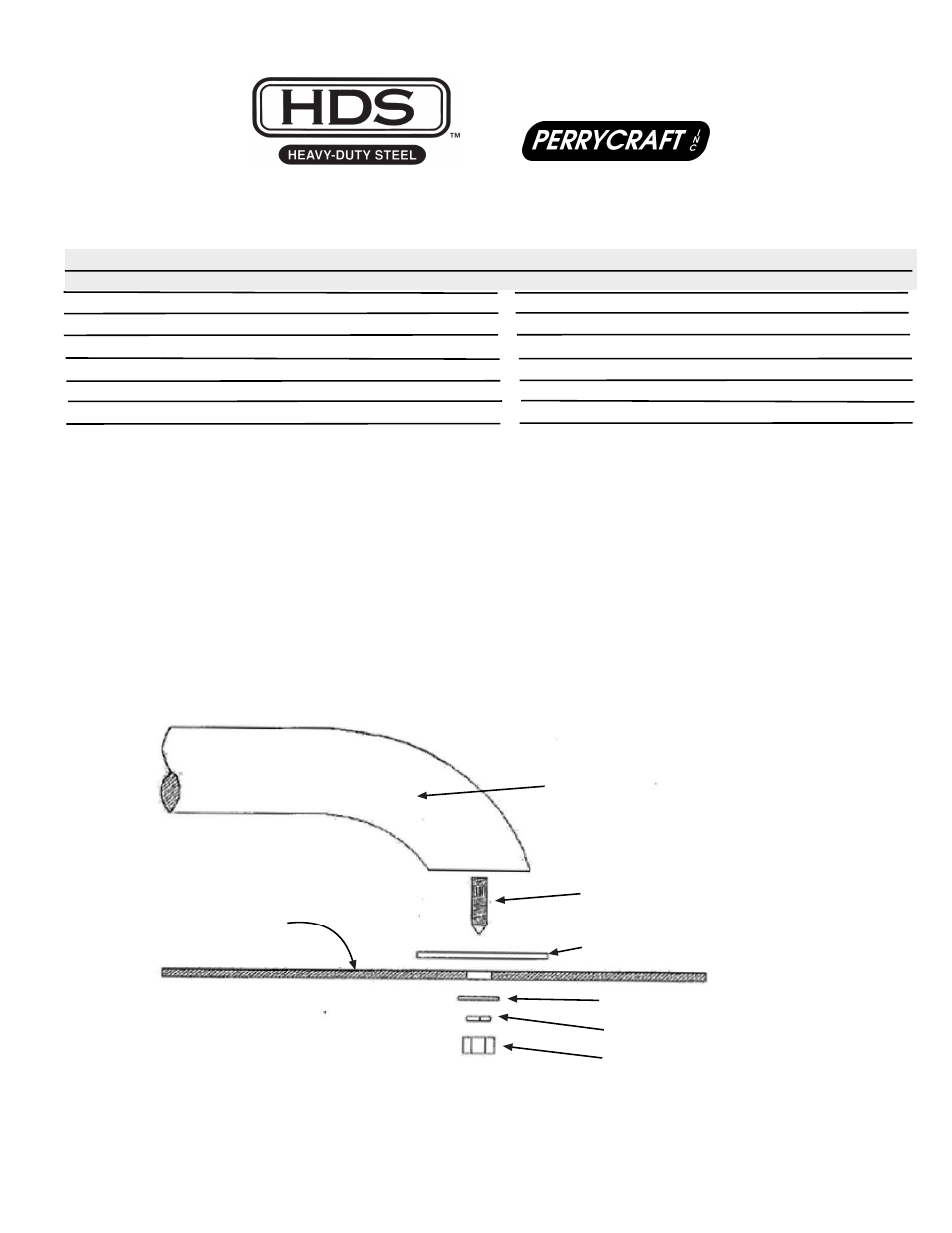

Assembly Diagram
Bed Rail
Bullet-point Stud
Molded Gasket
3/8” Flat Washer
3/8” Lock Washer
9/16” Hex Nut
Truck Bed
