Door Strike
The door strike must be adjusted to have sufficient
tension to hold loading door closed against force of the
load tumbling against it. There is proper adjustment of
pull force when 8 to 15 pounds (35.6 N – 66.7 N) is
required to open door.
If adjustment is required, refer to Figure 17 and
proceed as follows:
To adjust, open door, loosen acorn nut, and turn door
strike screw in or out as required. Retighten acorn nut.

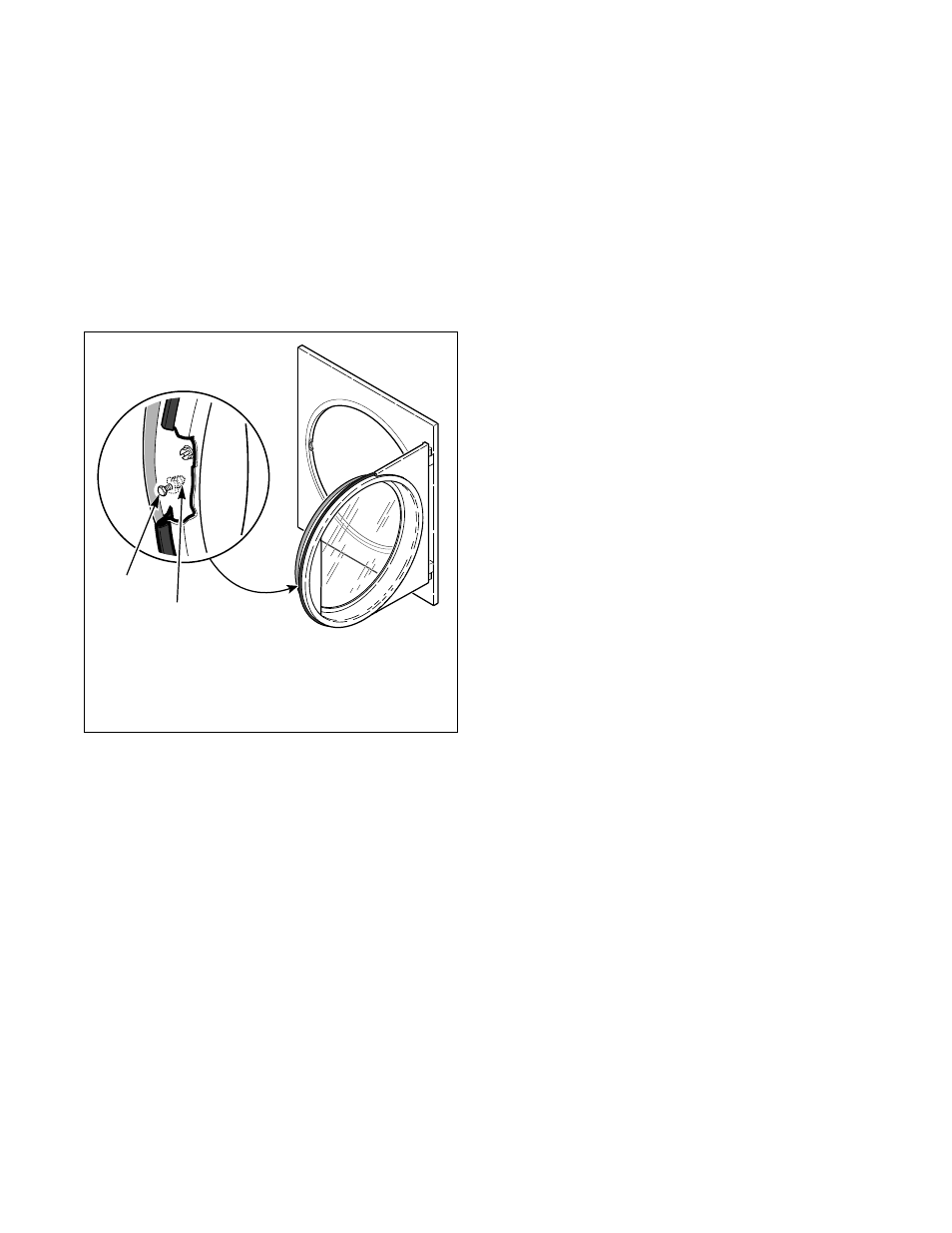

Figure 17
TMB1990N
1
Door Strike Screw
2
Acorn Nut
TMB199
1
2
