Exhaust outlet locations – Alliance Laundry Systems T477C User Manual
Page 13
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Specifications and Dimensions
11
70304601

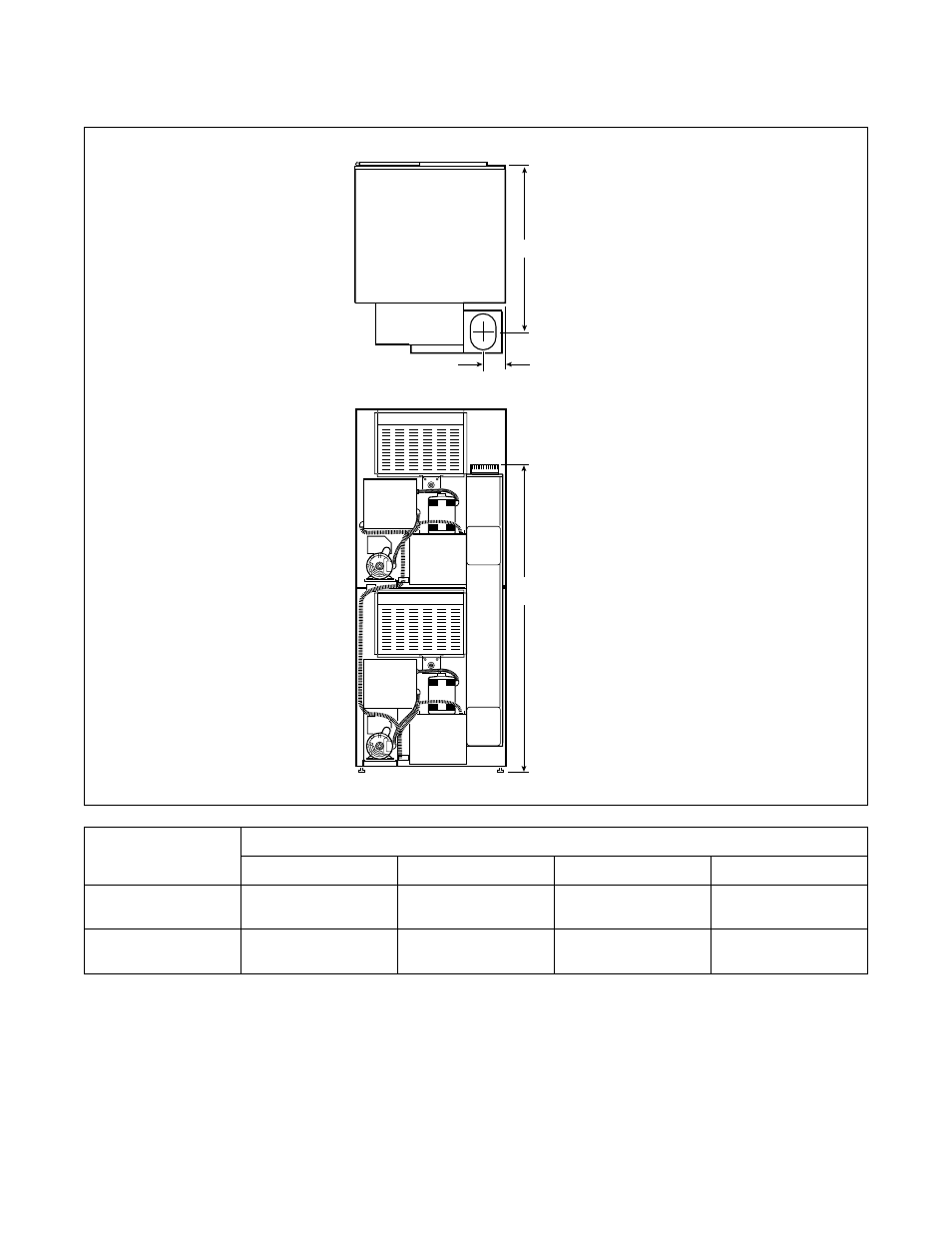

Exhaust Outlet Locations
TMB1969N
TMB1969N
B
C
A
Models
Rear Exhaust
Diameter
A
B
C
T30
Elliptical
Fits 8 in. (203 mm)
36.54 in.
(928 mm)
4.25 in.
(108 mm)
62.42 in.
(1585 mm)
T45
Elliptical
Fits 10 in. (254 mm)
40.88 in.
(1038 mm)
4.75 in.
(121 mm)
66.00 in.
(1676 mm)
