Specifications and Dimensions
70304601 14

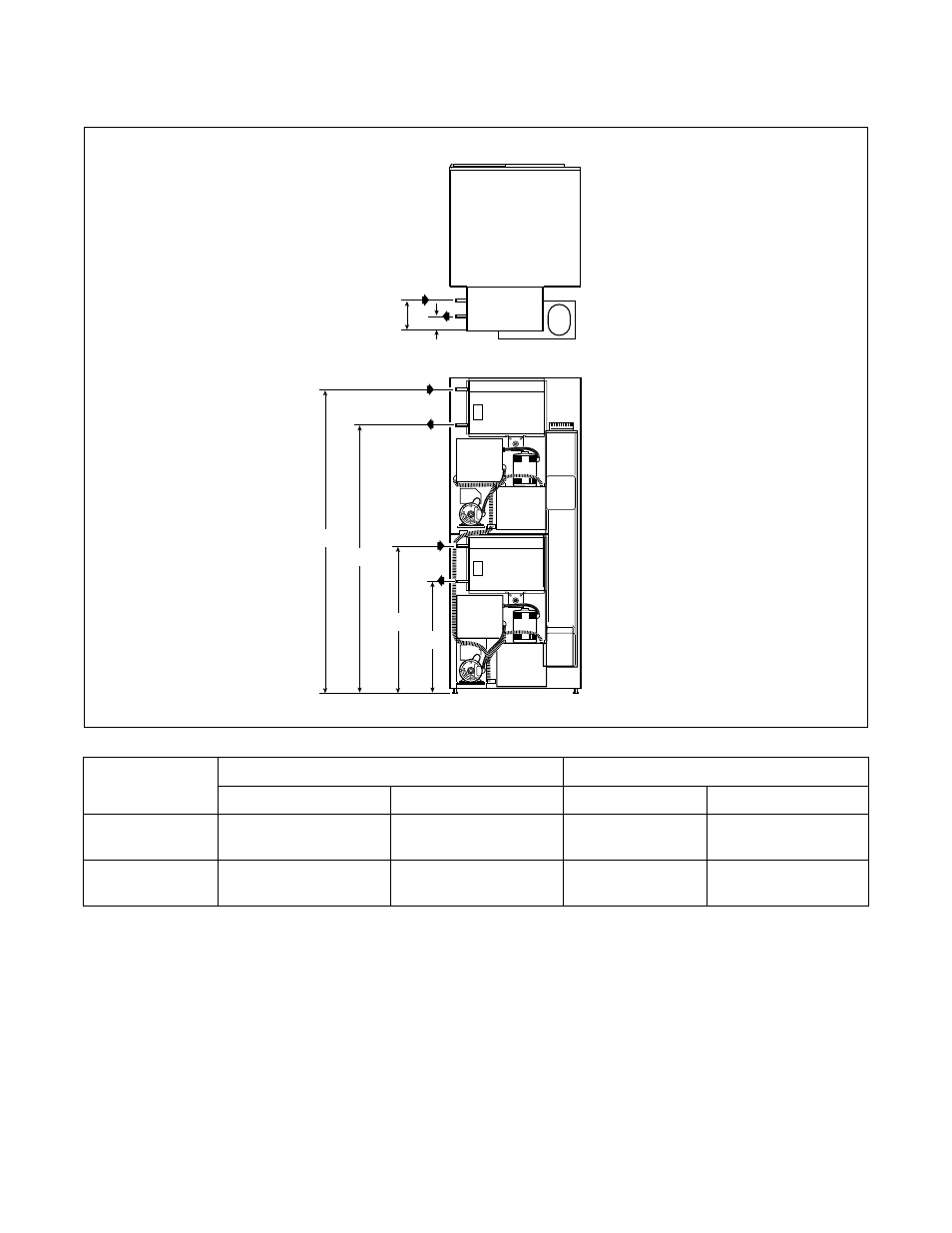

Steam Connection Locations
NOTE: All connections use 3/4 inch NPT pipe.
TMB1972N
C
D
A
B
A
B
Models
Inlet Outlet
A C B D
T30
(Upper)
73.93 in.
(1877 mm)
6.29 in.
(160 mm)
62.71 in.
(1592 mm)
2.39 in.
(61 mm)
T30
(Lower)
36.35 in.
(923 mm)
6.29 in.
(160 mm)
25.13 in.
(638 mm)
2.39 in.
(61 mm)
