Exhaust Requirements
70304601 28

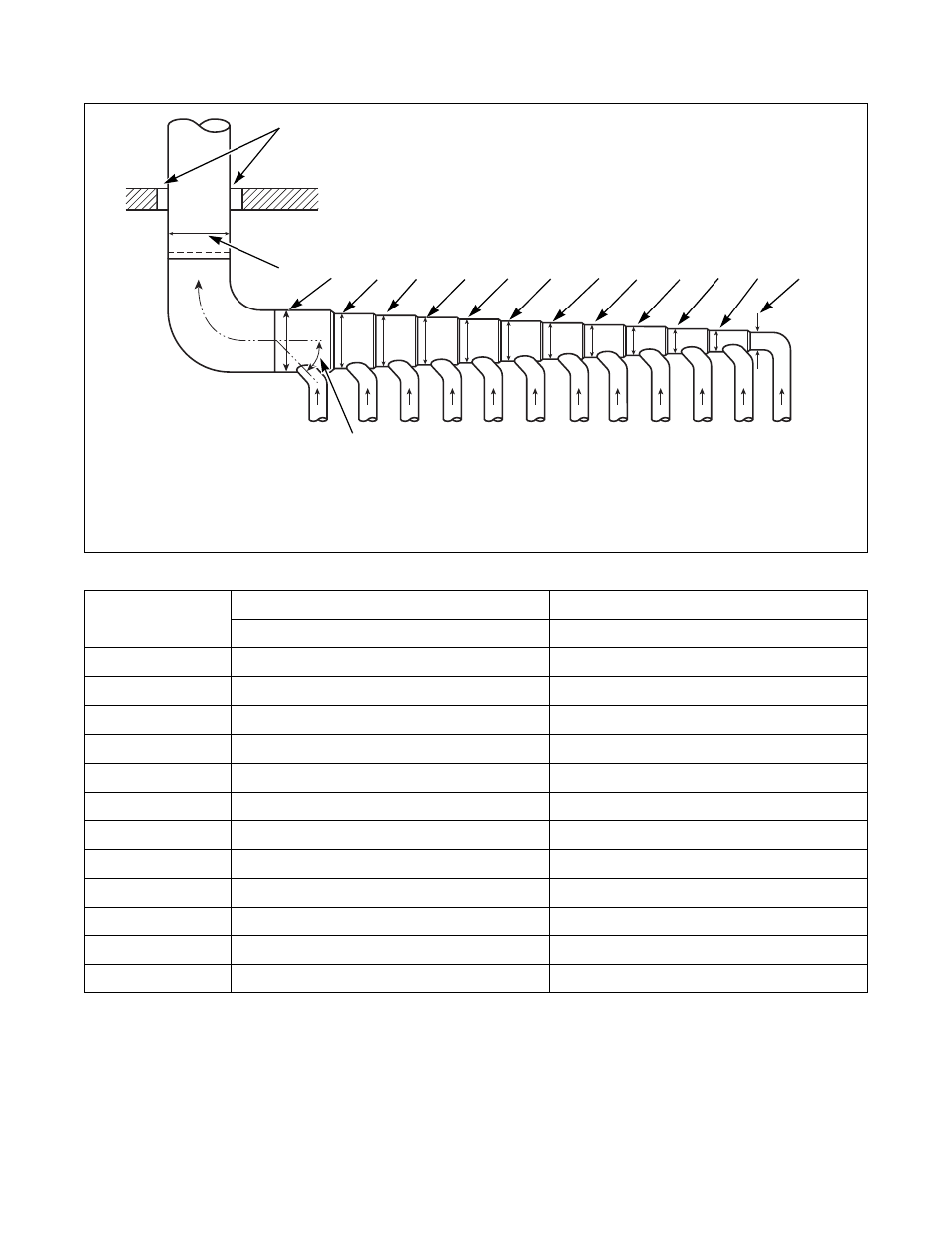

Figure 11
TMB2019N
1 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening
MUST be sized per local codes. 2 Outlet Duct Diameter
3 45° Typical
L K J I H G F E D C B A
3
1
2
ONE MANIFOLD ASSEMBLY
Duct
Station
T30 T45
8 in. (203 mm) Duct 10 in. (254 mm) Duct
A 8 in. (203 mm) 10 in. (254 mm)
B 12 in. (305 mm) 15 in. (381 mm)
C 15 in. (381 mm) 18 in. (457 mm)
D 17 in. (432 mm) 21 in. (533 mm)
E 19 in. (483 mm) 24 in. (610 mm)
F 21 in. (533 mm) 26 in. (660 mm)
G 23 in. (584 mm) 28 in. (711 mm)
H 24 in. (610 mm) 30 in. (762 mm)
I 26 in. (660 mm) 32 in. (813 mm)
J 27 in. (686 mm) 33 in. (838 mm)
K 28 in. (711 mm) 35 in. (889 mm)
L 30 in. (762 mm) 36 in. (914 mm)
Table 5
