8.4 Optional "Hall Effect" Cable (P/N 33833)
An optional cable assembly is available for pacing your pump
directly from an LMI Flowmeter fitted with a Hall Effect
sensor. This cable connects to the Flowmeter as shown in
Figure 8 (There is no need for a Programmable Divider; its
function is built into the pump).

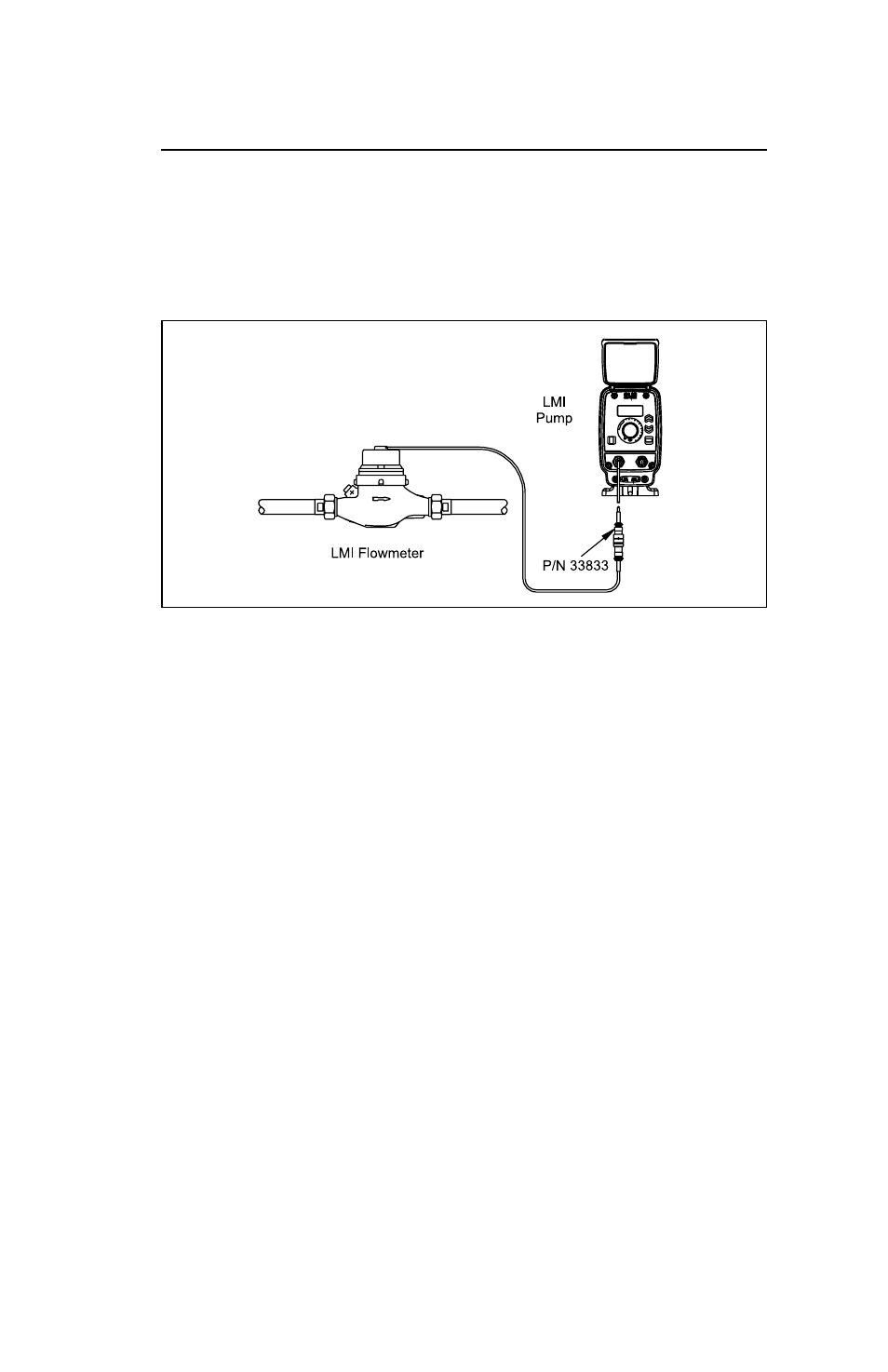

Figure 8: Optional "Hall Effect" Cable (P/N 33833)
