Instruction Manual DO 6+
- 4 -
2.3 Inserting & removing the rubber armour / stand

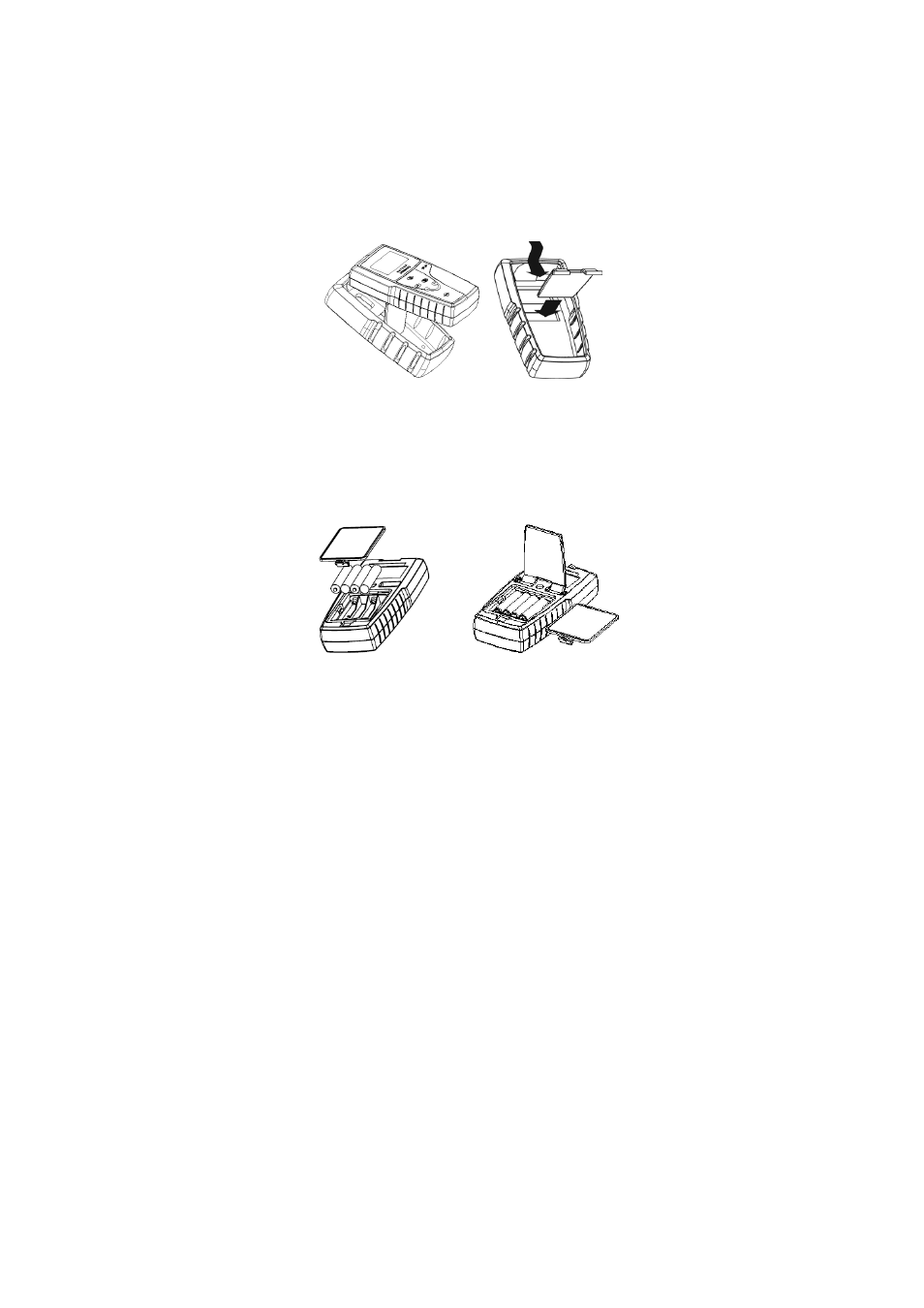

1. To remove meter from rubber armour, push out from the bottom edges of
meter until it is completely out of boot. Ensure that your electrode cables
are not connected. See Figure 1.
2. To insert meter into armour, slide in from the top of meter before pushing
the bottom edges of meter down to set it into position. Lift up the stand at
the back of meter for bench top applications if necessary. See Figure 2.
Ing New Batteries
2.4 Inserting New Batteries
The battery compartment is found at the back of instrument. To open the battery
compartment, push in the direction of arrow and lift up the cover. Note the
polarity of battery before inserting into position. After replacement, place cover
back and press down until it locks.
Figure 1 Figure 2
2
