Nitek AS1000 - Manual

1.5"
(39)
2.0"
(51)
1.3"
(33)
.9"
(24)
(Millimeters)
INTRODUCTION
The AS1000 Audio Balun allows the transmission of a line level audio signal over a
twisted pair of wires. The AS1000 comes as a small pair of modules which can be used to send
audio for more then 2 miles.
SYSTEM SPECIFICATIONS
Size
1.3"W x 2.0"D x .9"H
(33W x 51 D x 24 H)
Power None
Requirements
Audio IN/OUT RCA Jack for line level
Audio in/out
Twisted Pair Screw Terminals
IN/OUT
INSTALLATION
AS1000 Balun modules are interchangeable, they are transceiver units which turn 600
ohm Unbalanced audio into a Balanced twisted pair signal or vice versa. The diagram below
shows the standard hookup.
Model AS1000 Model AS1000 Model AS1000 Model AS1000 Model AS1000
Twisted Sender Audio Balun
CAT. NO. 1409.2
NITEK
®

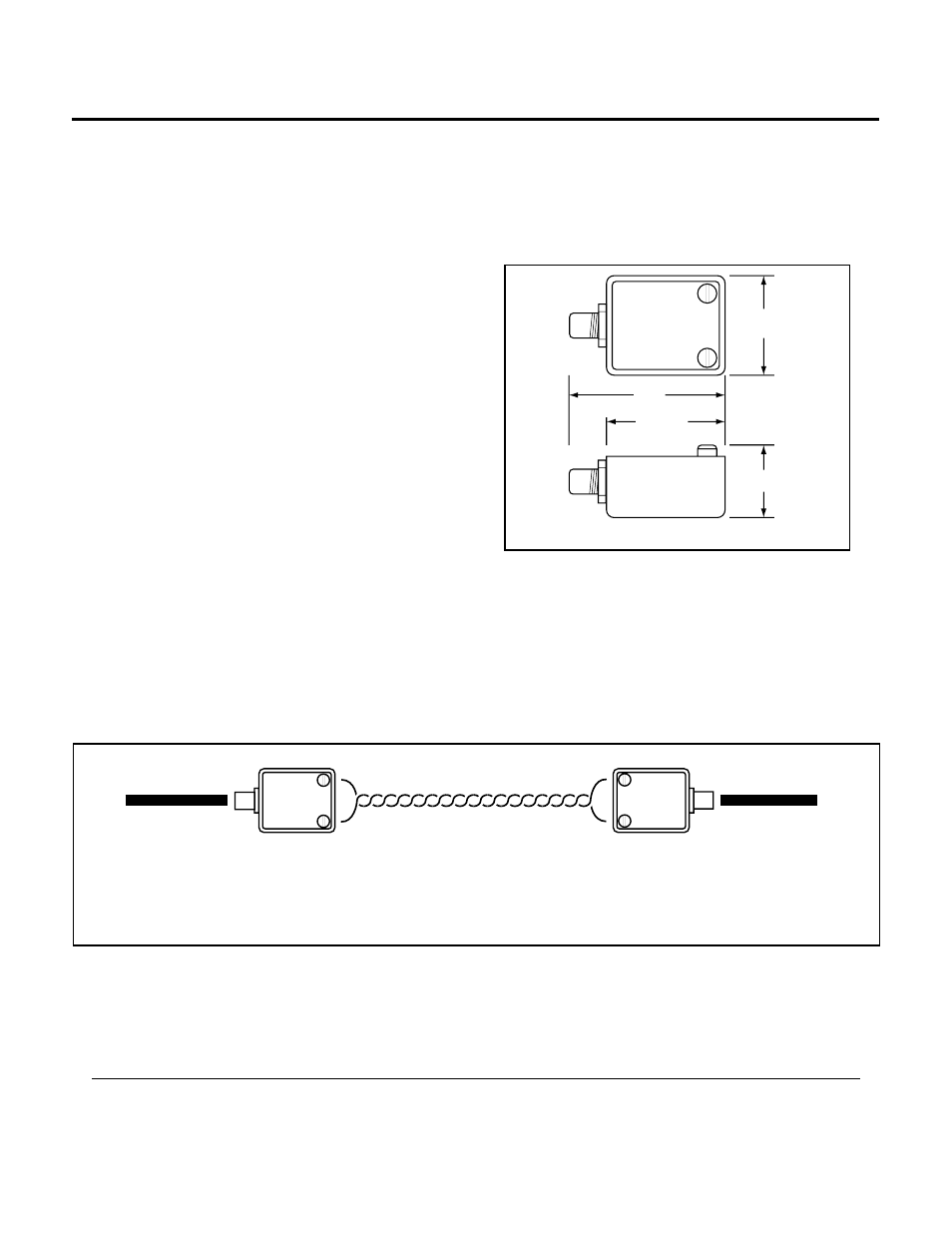

AS1000 Drawing
Twisted wires or
spare telephone wire
Audio IN Audio OUT
Standard Hookup of AS1000 System
