Nitek UTPPTR4 User Manual

Nitek, Model utpptr4, Installation manual

Rev. 031507

SPECIFICATION

Size 1.7"H x 4.3"W x 2.5"D
(43 H x 109 W x 63 D)

Clamping 15 Volts
Voltage

Impedance 110 ohms

Temperature -40C to +85C

Frequency DC to 10 MHz

Model UTPPTR4

Primary Surge Protection Panel for Premise Wiring

Installation Manual

INSTALLATION

The UTPPTR4 must be properly installed to insure maximum protection. The

function of the UTPPTR4 is to allow a surge to be routed to ground and to keep protected
equipment inputs to a minimum voltage. The UTPPTR4 should be located as close as
possible to the point were the cable enters the building.

Connect the grounding stud of the UTPPTR4 to a good EARTH GROUND. Finally,

the UNPROTECTED cables should not be crossed or paralleled with the PROTECTED
cables. Crossing cables could provide a path for surge currents to bypass the protection
circuits.

De Schans 19-21 2a • 8231 KA Lelysted
Netherlands
Phone: +31(0)320 -230005
Fax: +31(0)320 -230005
E-mail: [email protected] • Web: www.nitek.nl

Europe Office:

5410 Newport Drive • Rolling Meadows, IL 60008
Phone: (800) 528-4343
Fax: (847) 259-1300
E-mail: [email protected] • Web: www.nitek.net

USA Office:

NITEK

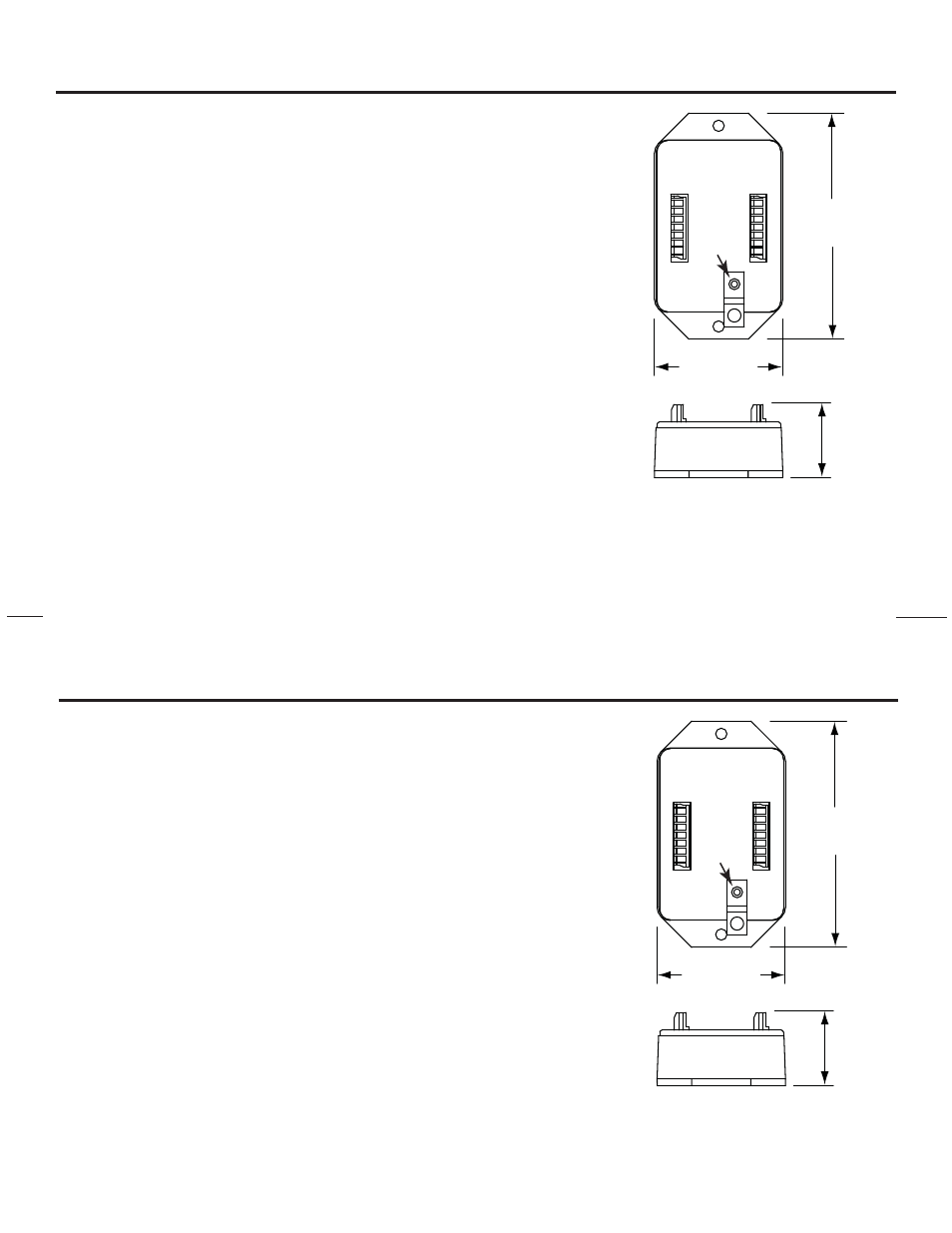

4.3”

(110)

2.5”

(62)

1.7”

(43)

PROTECTED

UNPROTECTED

EAR

GROUND
