Nitek CAMPDD24 - Manual

The CAMPDD24 is a multi-function surge protector for in-line coaxial
video, two twisted pairs of data and the 12 or 24 volt camera supply. The
CAMPDD24 provides multi-stage surge protection to a single camera system
and P/T/Z unit for each of these functions. The CAMPDD24 provides a heavy,
single point ground connection and is easily installed in minutes. Please read
installation instructions completely and insure good ground connections.
Specifications
Size 1.7” H x 4.3” W x 2.5” D Video Insertion <0.2dB
Loss
Clamping Video—2.8V Impedance 50 or 75 Ohms
Voltage Power—33Vrms Temperature -20°C to +65°C
Control—4.7V Frequency DC to 10 MHz

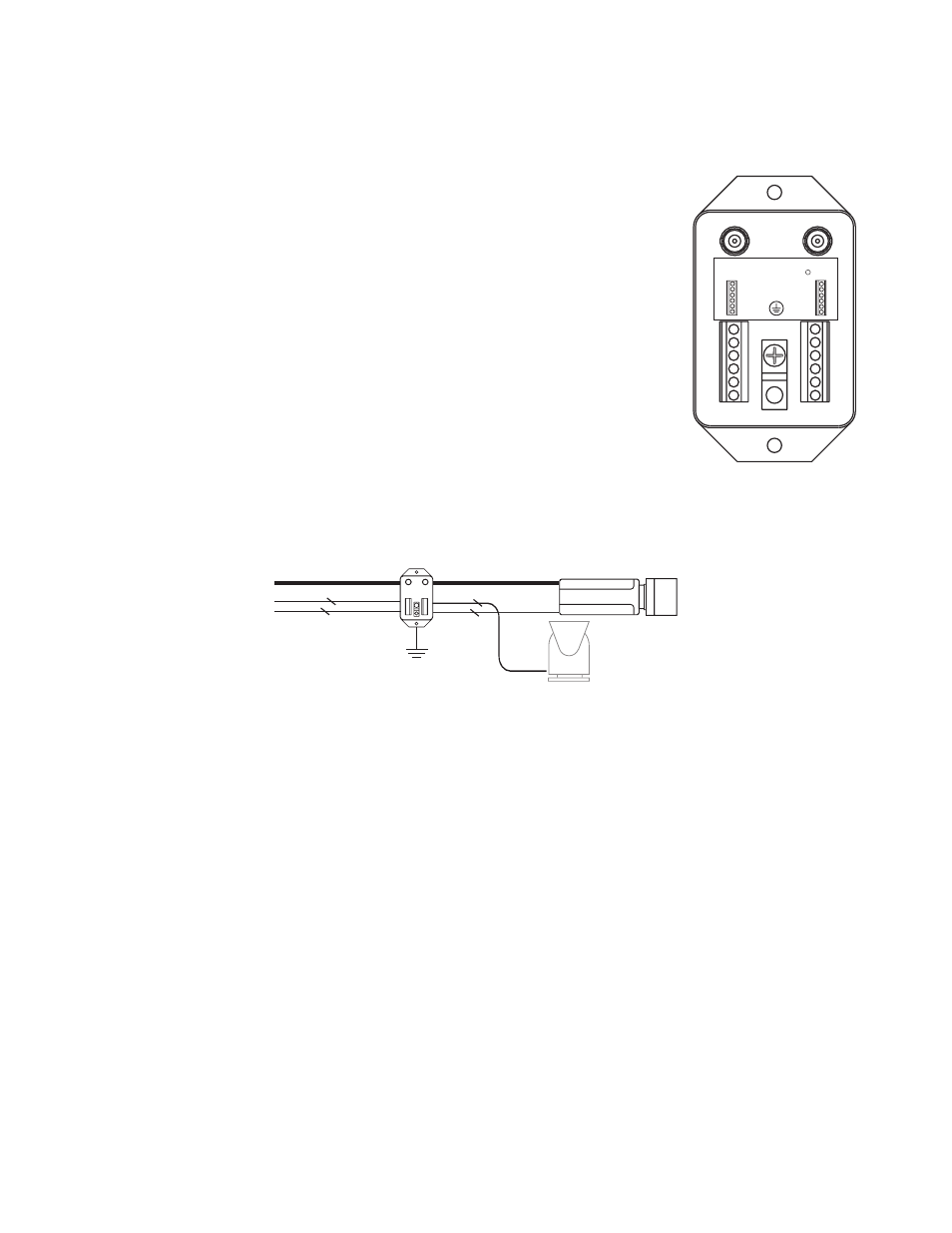

CAMPDD24
POWER POWER
DATA
EARTH
GROUND
VIDEO COAX VIDEO COAX
CAMERA
UNPROTECTED
PROTECTED
EQUIPMENT
OPTIONAL
PTZ
4 4
2 2
DATA
Rev 03042009
NITEK
®
Europe Office:
De Schans 19-21 2a, 8231 KA Lelystad
Tel: +31(0)320-2300005
Fax: +31(0)320-282186
E-mail: [email protected], WWW.NITEK.NL USA Office:
5410 Newport Drive, Rolling Meadows, IL 60008
Phone: (800) 528-4343, (847) 259-8900
Fax: (847) 259-1300
E-mail: [email protected], WWW.NITEK.NET
VIDEO NITEK
R
WWW.NITEK.NET
Model CAMPDD24
UNPR
O TECTED
PR
O
TECTED
VIDEO
Data +
Data -
Data +
Data -
12/24 Volts
12/24 Volts Data +
Data -
Data +
Data -
12/24 Volts
12/24 Volts
Model CAMPDD24
Camera Surge Protection Panel for Video, RS422,
and 12/24 Volt Power
Installation and
Operation Manual
INSTALLATION
The CAMPDD24 must be properly installed to insure maximum protection. The function of the
CAMPDD24 is to allow a surge to be routed to ground and to clamp the protected equipment inputs
to a minimum voltage.
There are three key points to remember when installing the CAMPDD24. First, provide a low
impedance connection between the CAMPDD24 and your protected equipment. This is best done by
keeping the PROTECTED cable connections as short as possible.
Second, the system should use a single ground point. Connect the grounding stud of
the CAMPDD24 to a single ground point. A single ground point is a proper building ground or earth
ground to which equipment grounds are connected. Ideally the protected equipment should be
isolated from ground. If the CAMPDD24 and the protected equipment are both grounded you will
provide a parallel path to ground and a portion of the surge current can flow though that path.
Finally,
the UNPROTECTED cables should not be crossed with the PROTECTED cables.
Crossing cables could provide a path for surge currents to bypass the CAMPDD24 protection
circuits.
