Nitek FTS324104S00 - Manual (Page 2)

Data Connections
AUX COMM IN / OUT
DEPENDING ON SWITCH
SETTING
DATA / ALARM CH1
DATA / ALARM CH2
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Fiber Optic Video Transmission Systems
WWW.NITEK.NET
800-528-4343
NITEK
R
CLASS 1
POWER
12-24 VDC,
300mA, Class 2 -
+
VIDEO CH2
VIDEO CH1
POWER
VIDEO / OPTO
OPTO IN / OUT
CH1 CH2
CH1
CH2
DATA / ALARM CH1
DATA / ALARM CH2
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
OPTO IN / OUT
DATA OUT
DATA IN
ALARM OUT
ALARM IN
RS232 RS485 RS422 DATA
IN + (A)
IN - (B)
OUT + (A)
OUT - (B)
GND
7
8
7
8
6 1
2
7
8
6 2
-
8
-
6
PIN ALARM
OUT +
OUT -
IN +
GND
3
4
5
6
DATA SWITCH SETTINGS
DATA SWITCHES INSIDE UNIT
DATA CH2
RS485
RS422
RS232
DATA CH1
RS485
RS422
RS232
DATA OUT
VIDEO IN

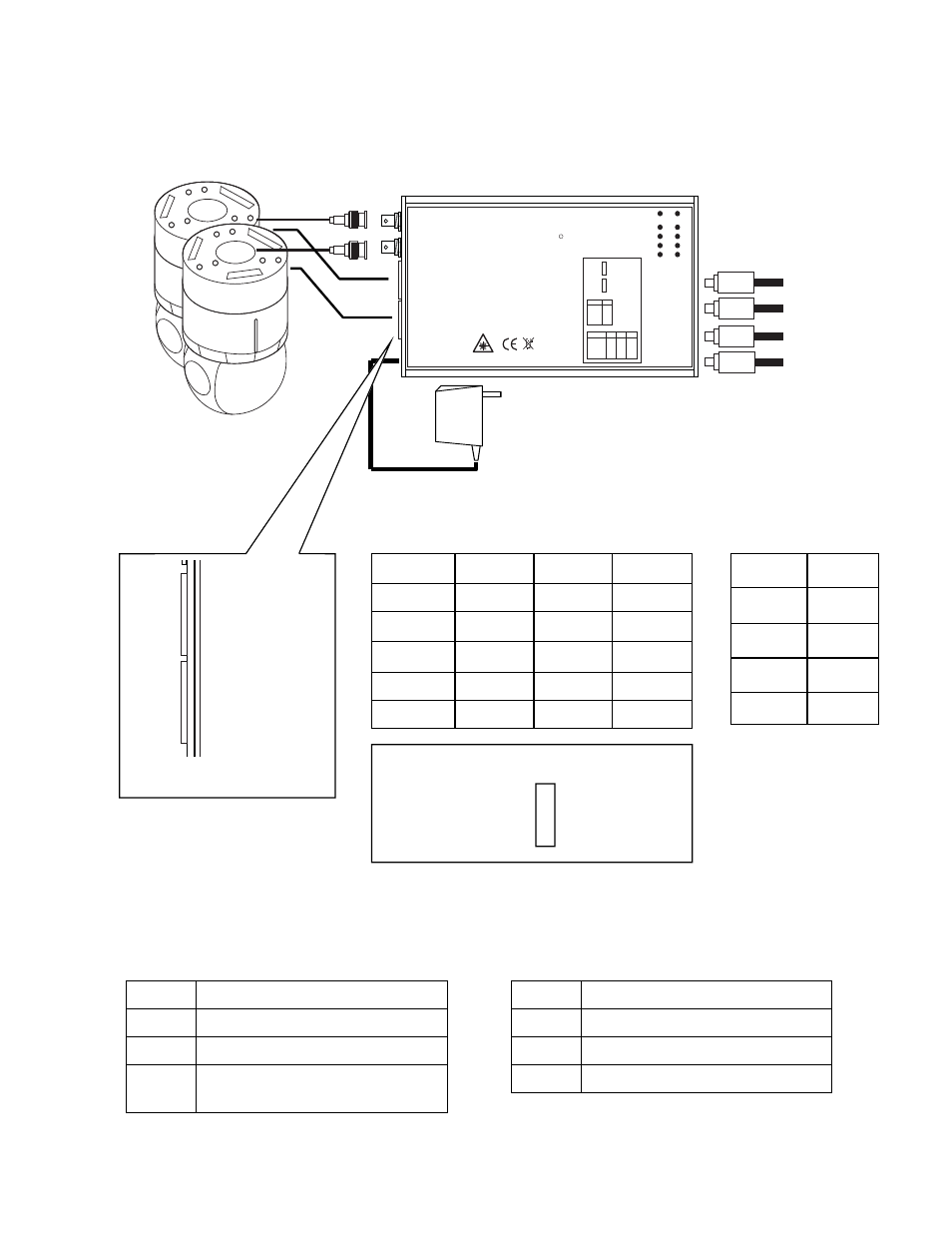

Typical Installation - FTS324104S00
Connect incoming
fiber using SC
connectors
Alarm Connections
Alarm Pin
OUT + 3
OUT - 4
IN + 5
GND 6
Data CH1
RS485
RS422
RS232
Data RS485 RS422 RS232
IN + (A) 7 1 2
IN - (B) 8 2 --
OUT + (A) 7 7 8
OUT - (B) 8 8 --
GND 6 6 6
Rear Panel Data Connections
Set Data Format with Internal Switch
Color Description
Green System Normal
Yellow (RX) Link working, No video at TX
Red (TX) Power on, No video into TX
(RX) Power on, No opto into RX
Power/Video/Opto LED
Color Description
Green Data is Low / Logic 0
Red Data is High / Logic 1 (RS422/485)
Off Data is Tri-state / (High - RS232)
Data LED
